Advance Paris X-A220 EVO Mono Amplifier – Advance Paris

Advance Paris’s technical expertise combined with the most “audiophile” design of their circuits enables them to achieve top-level performance at a competitive price.

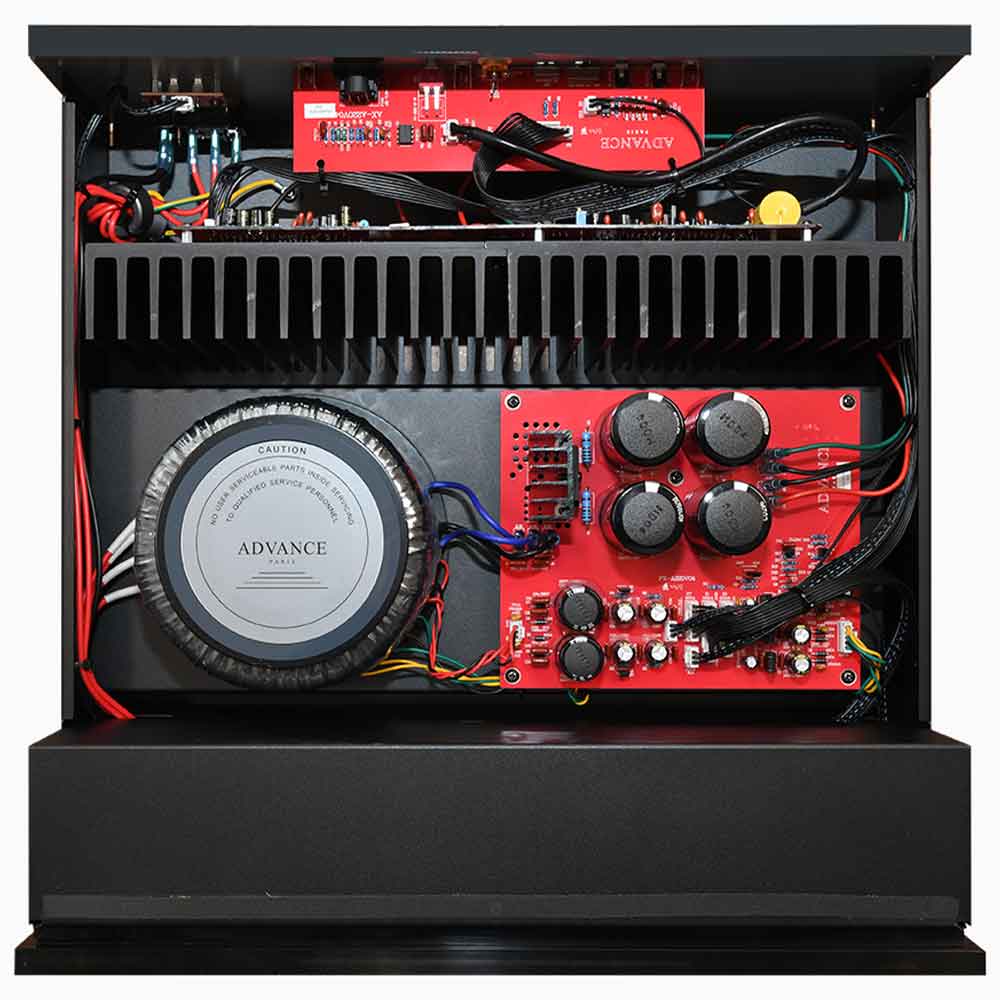

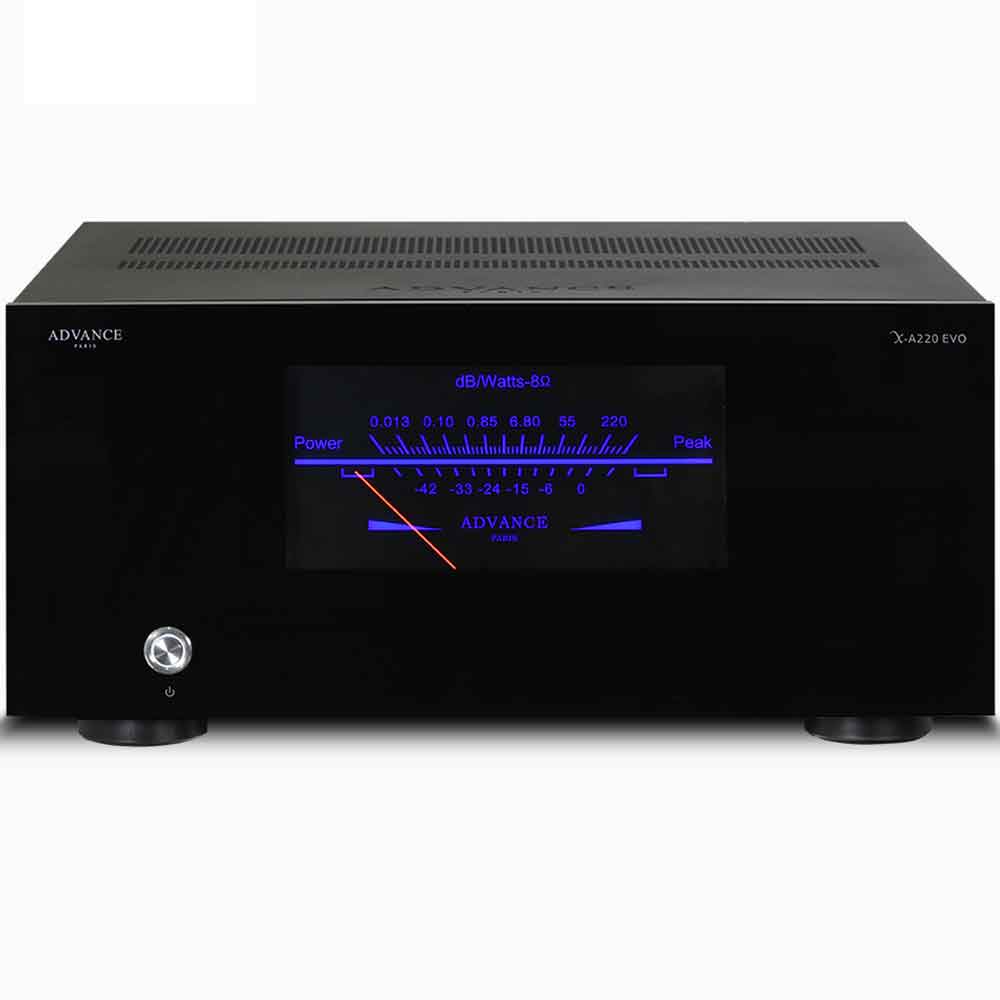

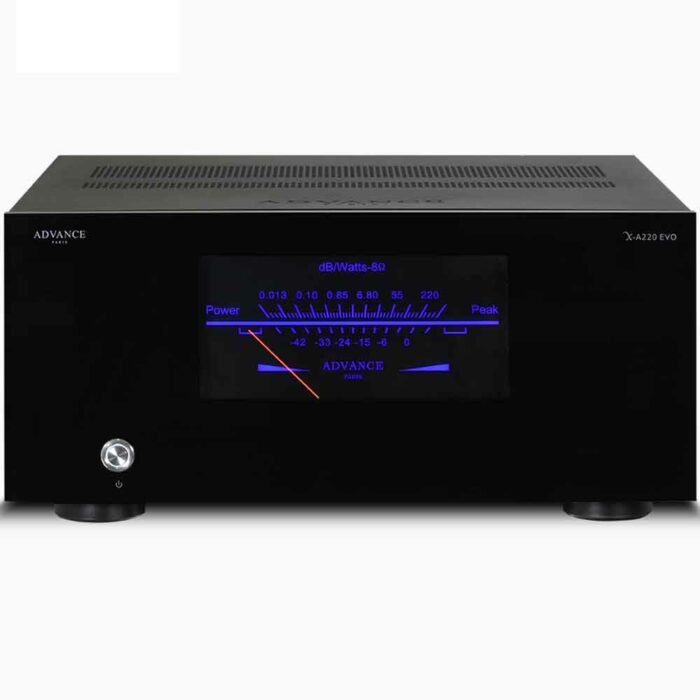

Construction: The steel frames are impeccably finished. The addition of methacrylate fronts enhances their successful aesthetics, while adding an important ergonomic dimension, thanks to an imposing vu-meter. The interior layout is rational and compartmentalized. This judicious arrangement of the various sub-assemblies is accompanied by a choice of quality components, soldered on separate PCBs and partitioned by function.

The X-A220EVO owes its thickness to the height of its generously dimensioned power transistor heatsink.

The X-A220EVO features a 700 VA toroidal transformer. After rectification, four 10,000 µF / 80 V capacitors smooth the DC current. The power stages call for a triple push-pull of complementary NJW0281G / NJW0302G transistors, delivering up to 220W (8 ohms) in class AB.

The amplifier can operate in two modes, accessed via a switch: when the High Bias function is engaged, the X-A220EVO operates in “class A” on the first Watt, then automatically switches to class AB.

What to expect in the box:

• X-A220 EVO Mono Amplifier

Product Details:

• Output power 8Ω: 1 x 220 W RMS
• Output power 4Ω: 1 x 350 W RMS
• Bandwidth: 10 Hz – 80 kHz
• Distortion: < 0.08%
• Signal-to-noise ratio: > 100 dB
• Channel separation: > 80 dB
• Input impedance Unbalanced: 32 KΩ
• Input impedance Balanced: 38 KΩ
• Mains voltage: 115-230V
• Standby power consumption: < 0.5W
• Max. power consumption: 500W
• Transformer power: 700W
• Transformer: Toroidal
• Height: 200 mm
• Width: 430 mm
• Depth: 450 mm
• Net weight: 21 Kg
• Product type: Power block
• VU-Meter: Yes
