Audio-Technica AT-LP120XUSB Direct-Drive 3-Speed Turntable With USB Output – Audio-Technica

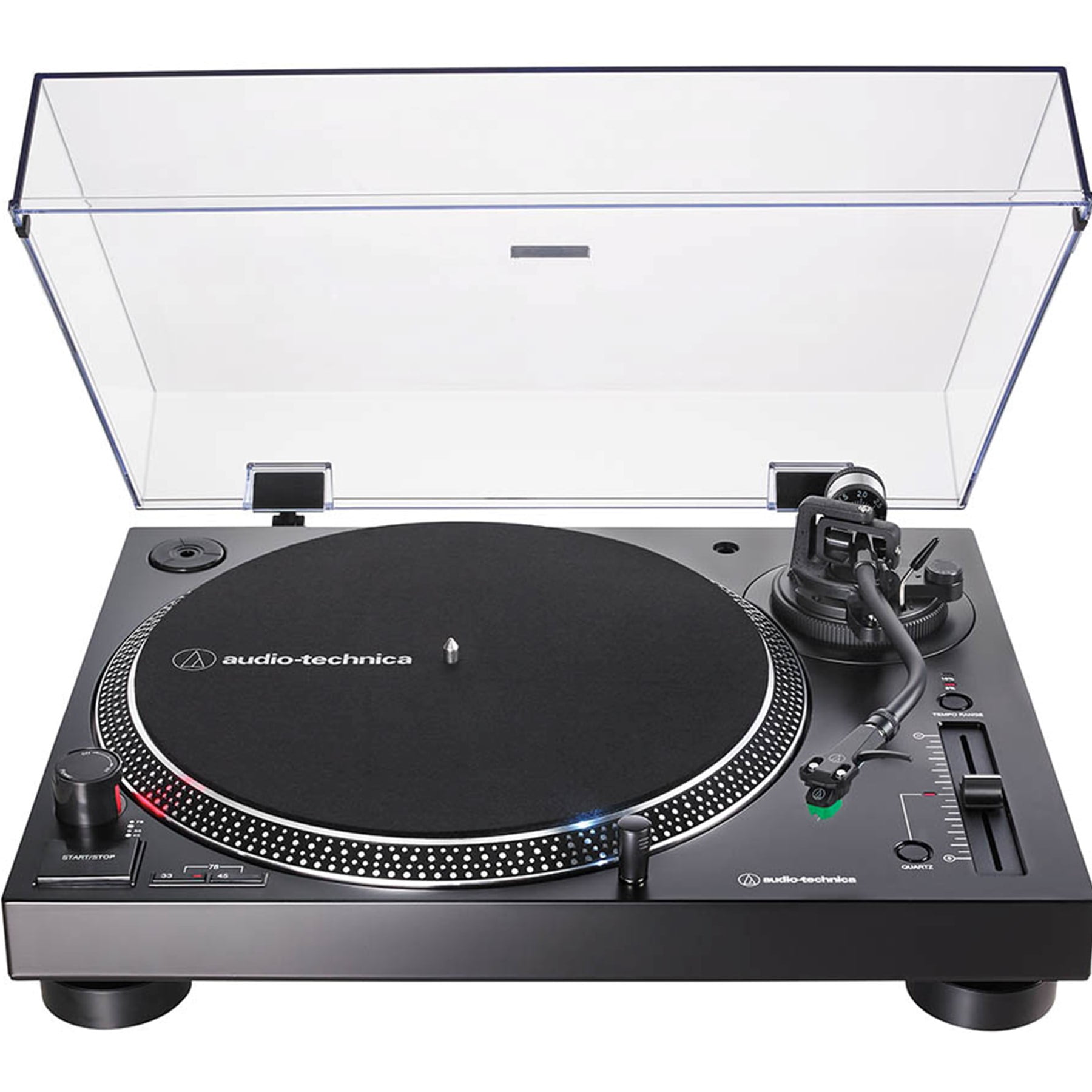

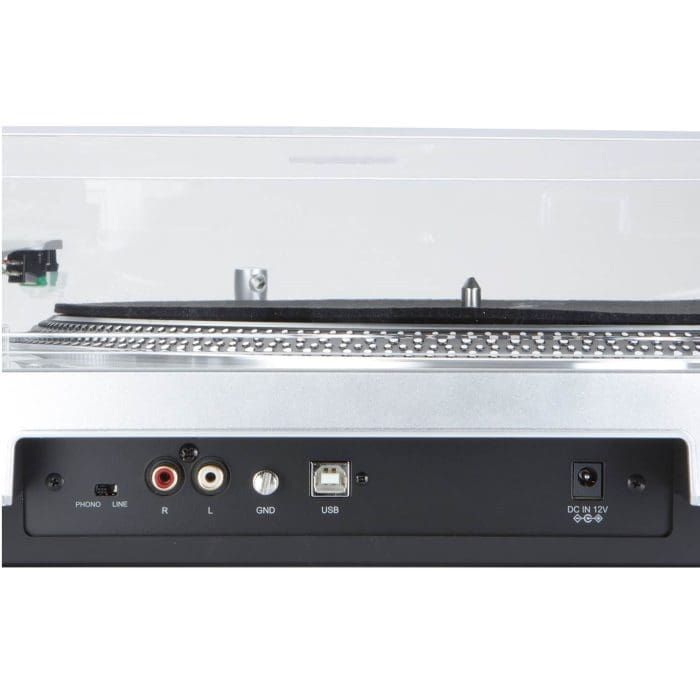

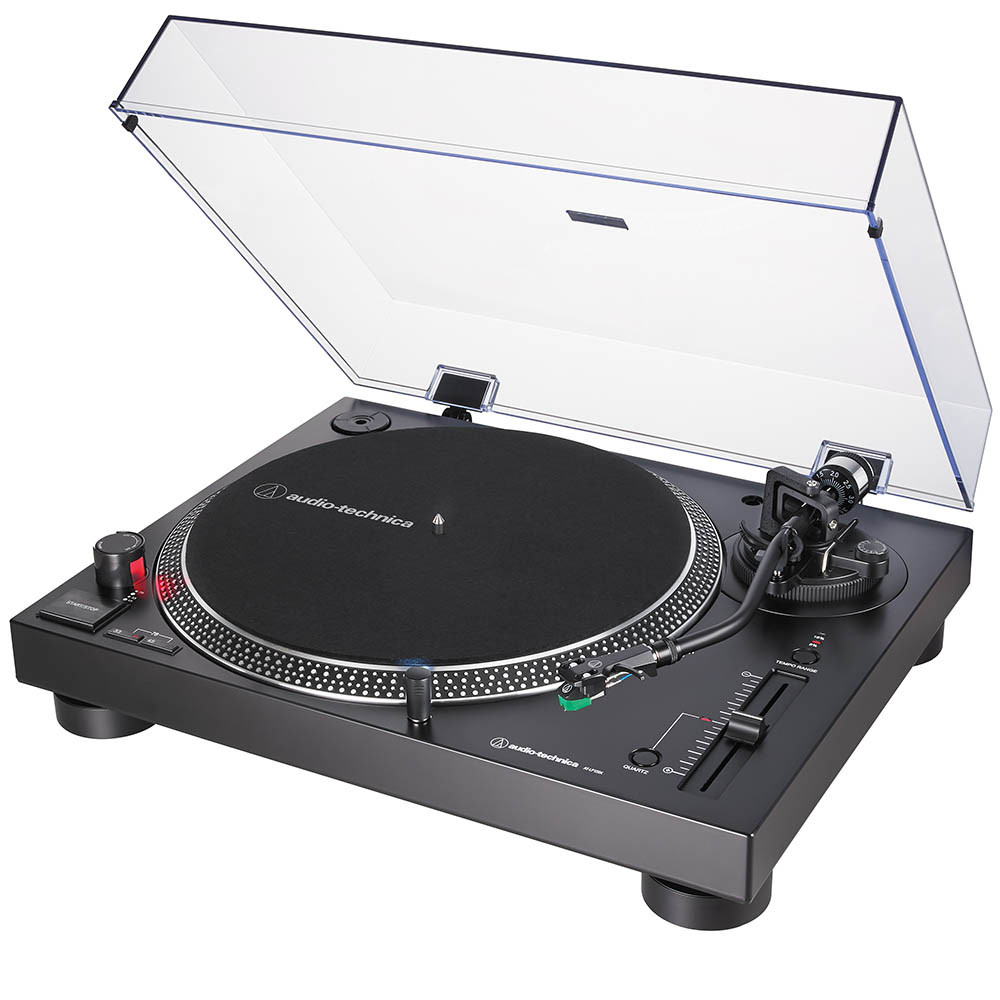

This update of the the Audio-Technica AT-LP120XUSB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.

The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½”-mount head-shell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8% or +/-16% adjustment ranges; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Features:

• Type: 3-speed, fully manual operation
• Motor: DC servo motor
• Drive Method: Direct drive
• Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
• Turntable Platter: Die-cast aluminum
• Starting Torque: >1.0 kgf.cm
• Braking System: Electronic brake
• Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
• Signal-to-Noise Ratio: >50 dB
• Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec, Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
• USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
• Power Supply Requirements: 100 to 240 V, 50/60 HZ. 1.5A Max
• Power Consumption: 2.75 W
• Dimensions: 452.0 mm (17.80″) W x 352.0 mm (13.86″) D x 141.6 mm (5.57″) H
• Weight: 8 kg (17.6 lbs.), without dust cover
• Accessories Included: AT-VM95E phono cartridge; AT-HS6 head-shell; 1.9 m (6.2′) USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
• Tonearm type: Balanced S-shaped tonearm with detachable head-shell
• Effective arm length: 230.5 mm
• Overhang: 16 mm
• Tracking error angle: Less than 3 degrees
• Applicable cartridge weight: 3.5-8.5 g
• Anti-skating range: 0-4 g
• Replacement Stylus: AT-VMN95E

USB operation system requirements

• PC or Mac with an available USB port (USB1.1 or higher)
• Windows 7 or above, or Mac OS X or above
