Bowers & Wilkins ASW610XP Subwoofer – Bowers & Wilkins

Bowers & Wilkins ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theater system for larger rooms.

ASW SUBWOOFER RANGE
The new 600 Series from Bowers & Wilkins transforms your home with pristine sound. Since 1966, we’ve made technological advances to design the perfect loudspeaker, and our latest innovations bring that heritage to music and movie lovers alike. The 600 Series includes three subwoofers, ranging from the compact ASW608 to the powerful ASW610XP. Each boasts an audiophile-standard, highly efficient Class D amplifier to capture every spine-tingling, water-shaking sound that you hear. Each of our subwoofers are finished to match the rest of the series, with beautiful matte black and white to seamlessly integrate with your home. With the sixth generation of the 600 Series, you can truly transform your space into a beautiful sound session.

Technical Specifications:

• Features
• Input level (line in)
• Input level (speaker in)
• Low-pass filter frequency (line in only)
• Low-pass filter bypass
• Bass extension
• Bass roll-off alignment
• Auto sense on / standby
• Phase switch
• Description: Active closed-box subwoofer system

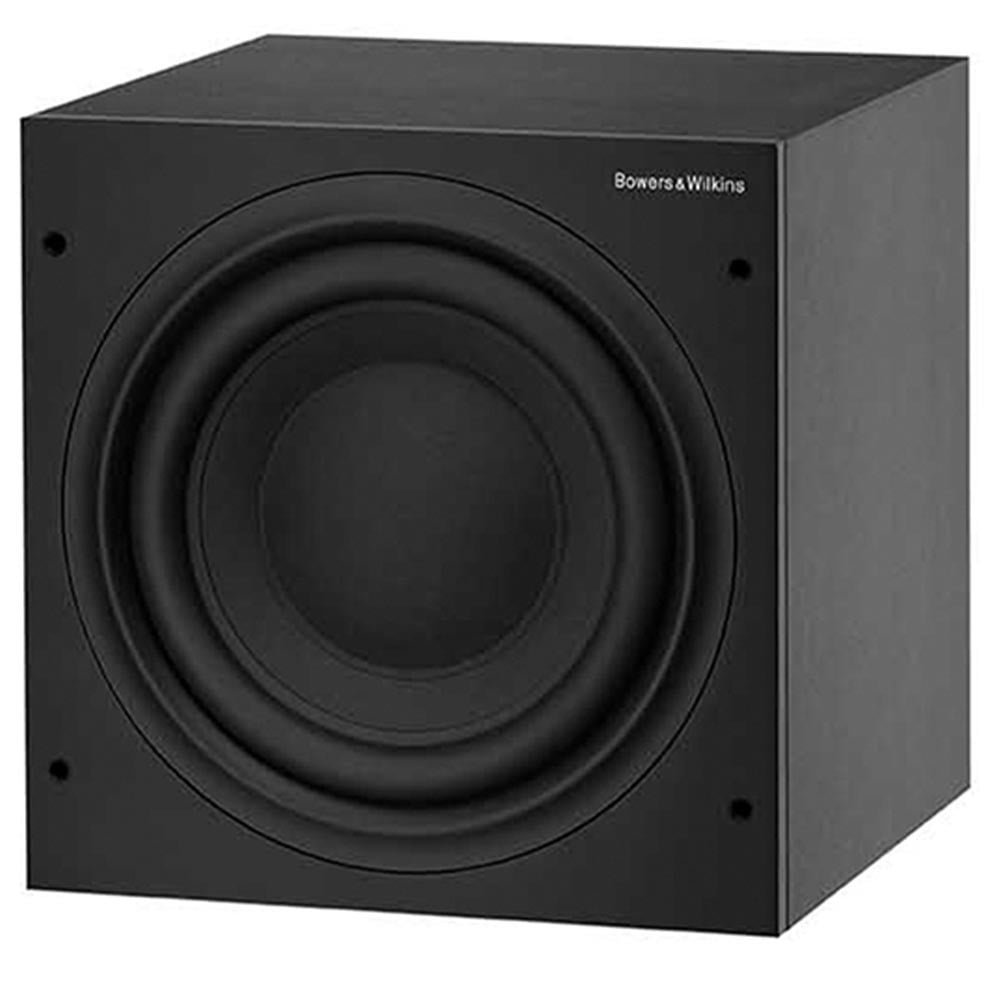

• Drive unit: ø250mm (10 in) paper / Aramid fiber cone long-throw
• Frequency range: -6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)
• Frequency response: ±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)
• Bass extension
• -6dB at 18Hz (position A)
• -6dB at 23Hz (position B)
• -6dB at 28Hz (position C)
• Amplifier: Power output: 500W
• Rated power consumption: 98W / 1W standby
• Input impedance: 33kΩ
• Signal / noise: >90dB

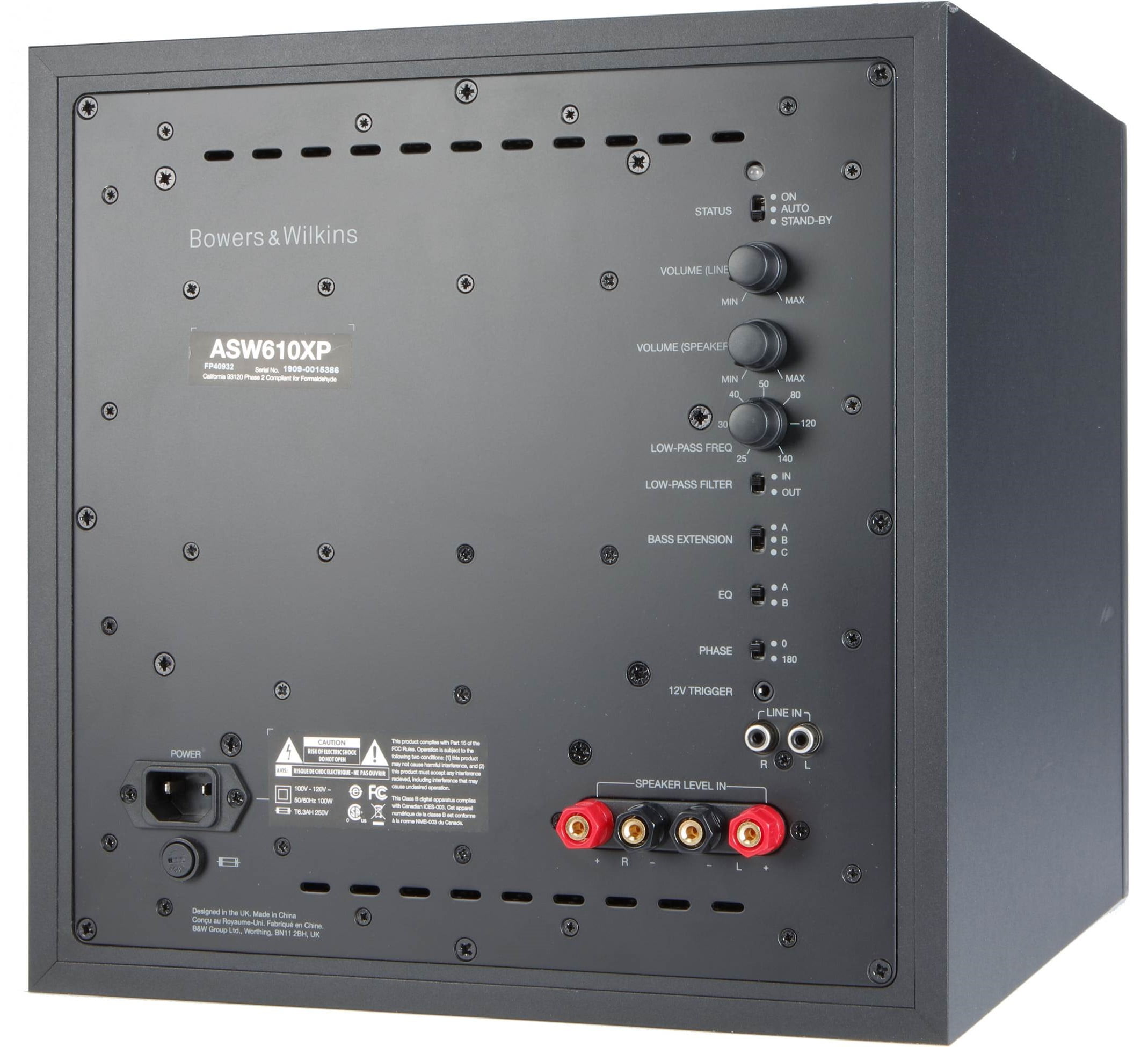

• Inputs
• Line in (RCA Phono)
• Speaker in (Binding post)
• 12v trigger (3.5mm jack)
• Low-pass filter
• Active 4th-order, variable cut-off frequency
• Dimensions
• Height: 325mm (12.8in) not including feet or spikes, 337mm (13.3in) including feet, 353mm (13.9in) including spike
• Width: 325mm (12.8in)
• Depth: 348mm (13.68in) not including grilles 375mm (14.8in) including grilles and controls
• Net weight: 18.65kg (41.12 lb)

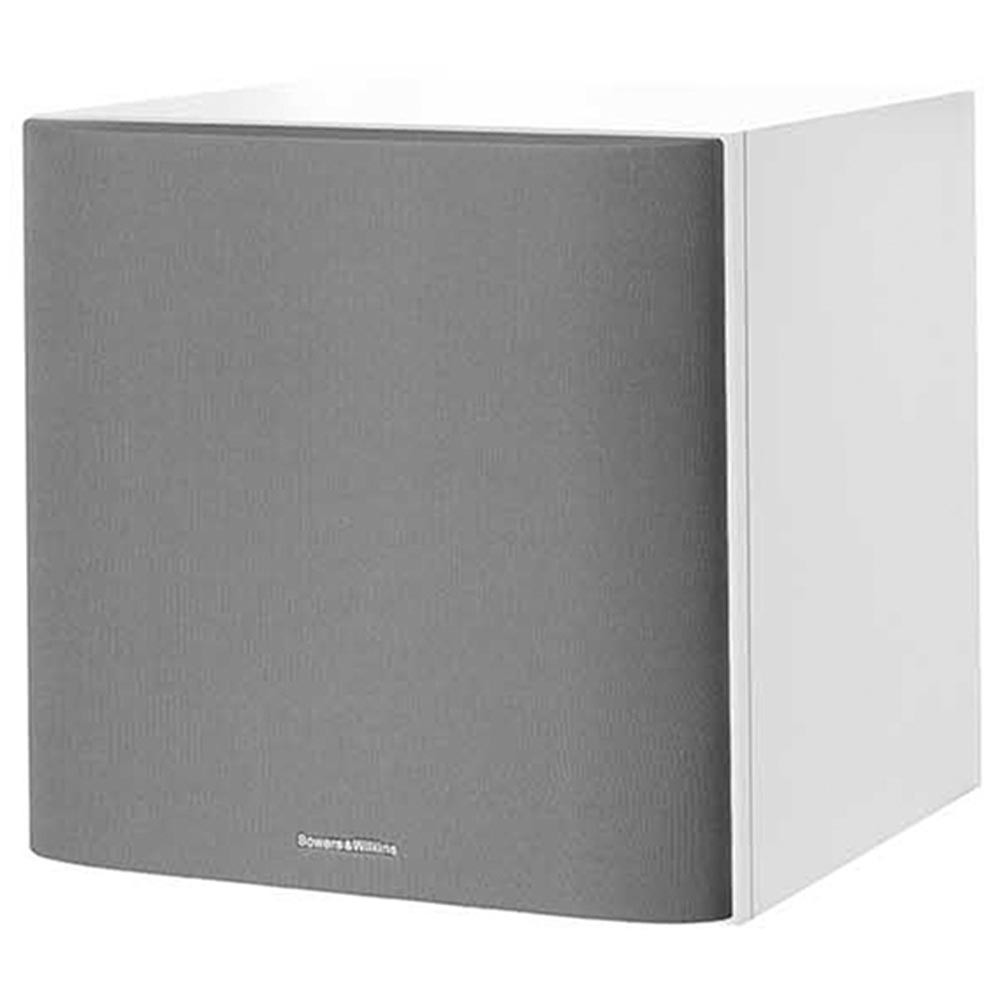

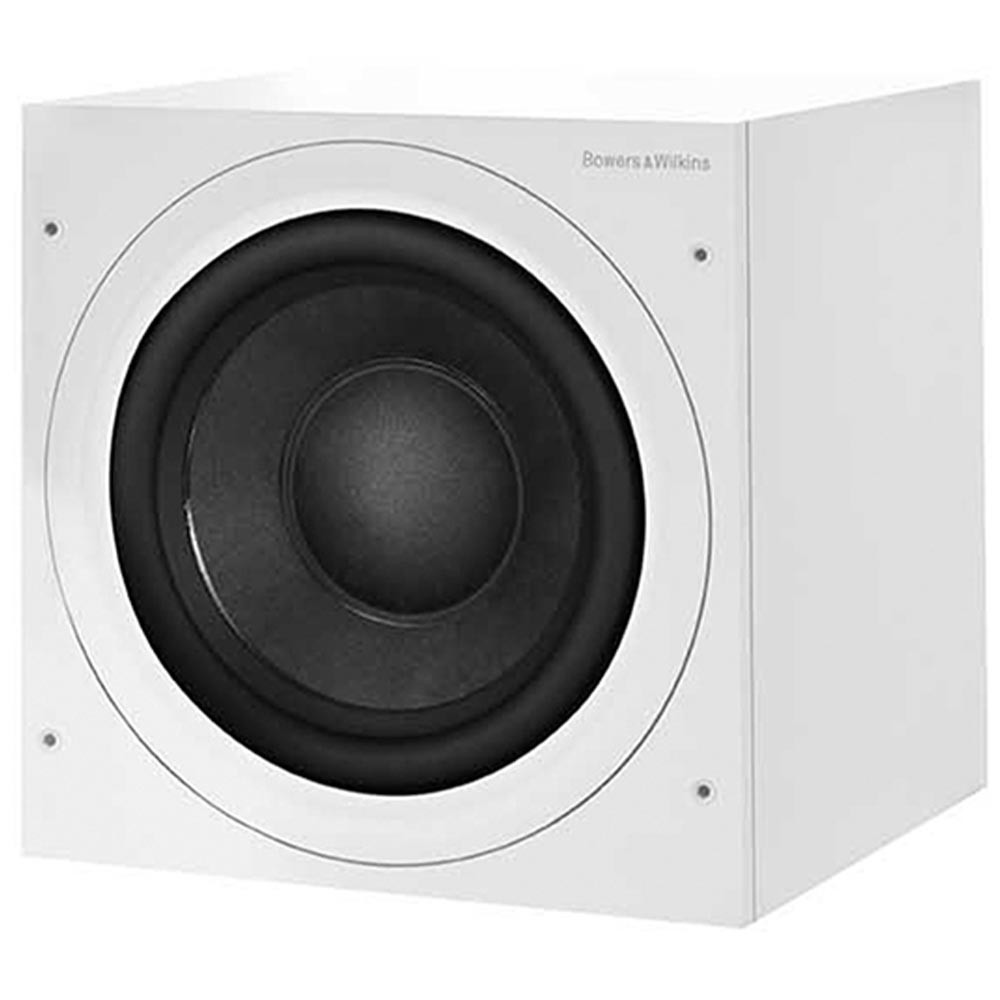

• Cabinet finishes
• Black
• White
• Grille finishes
• Black
• Grey
