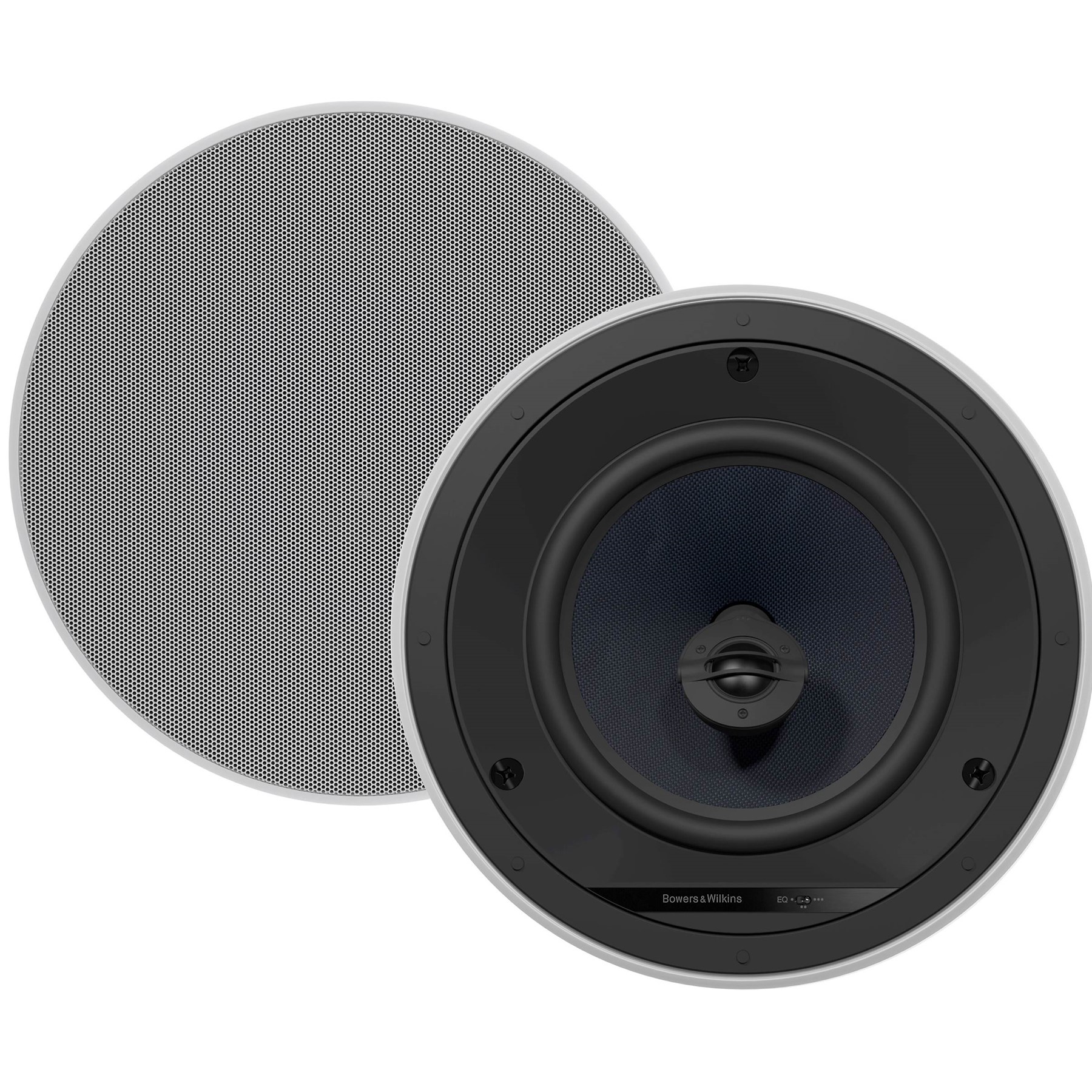

Bowers & Wilkins CCM 682 In-Ceiling Speaker (Pair) – Bowers & Wilkins

The Bowers & Wilkins CCM682 are the flagship of the highly acclaimed Performance Series

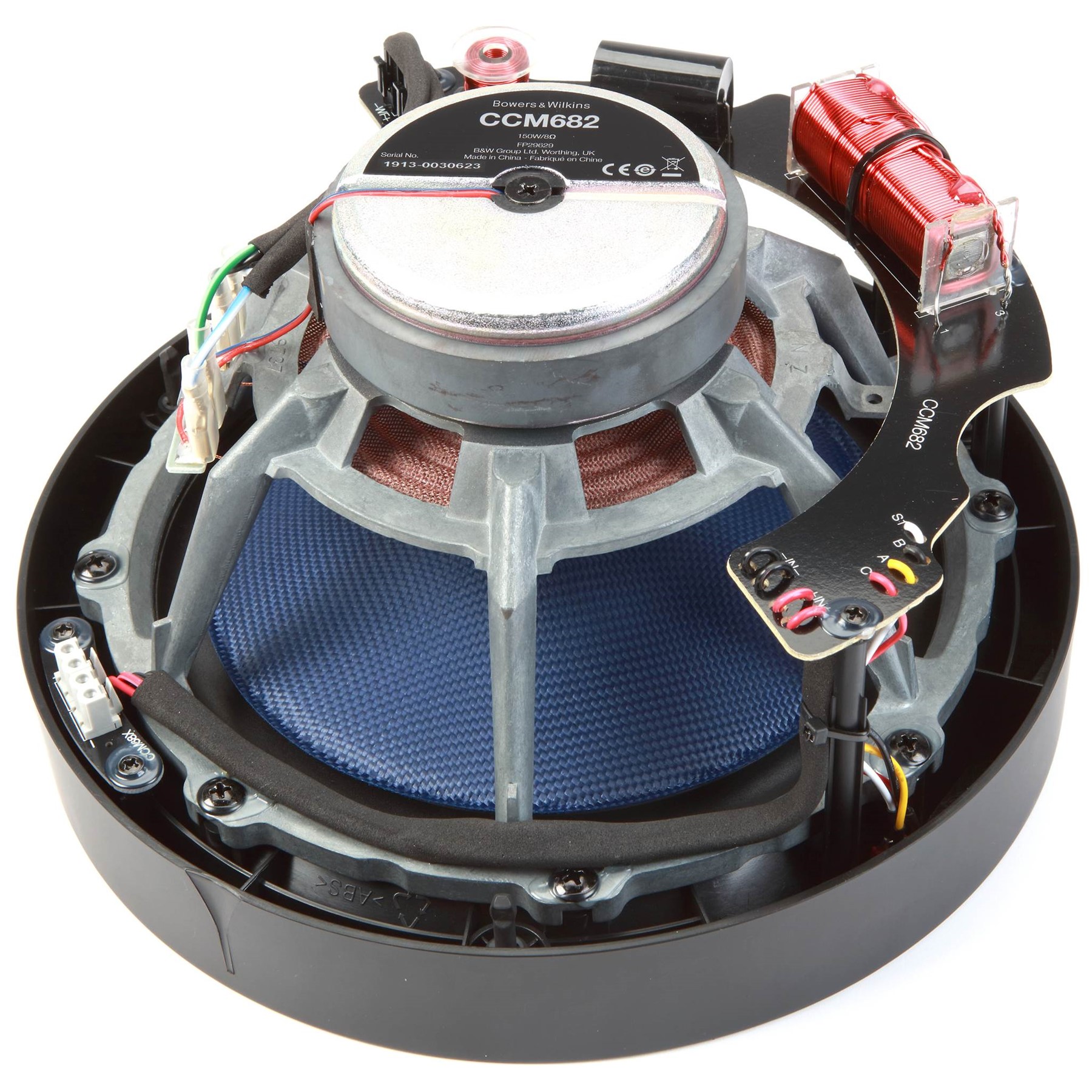

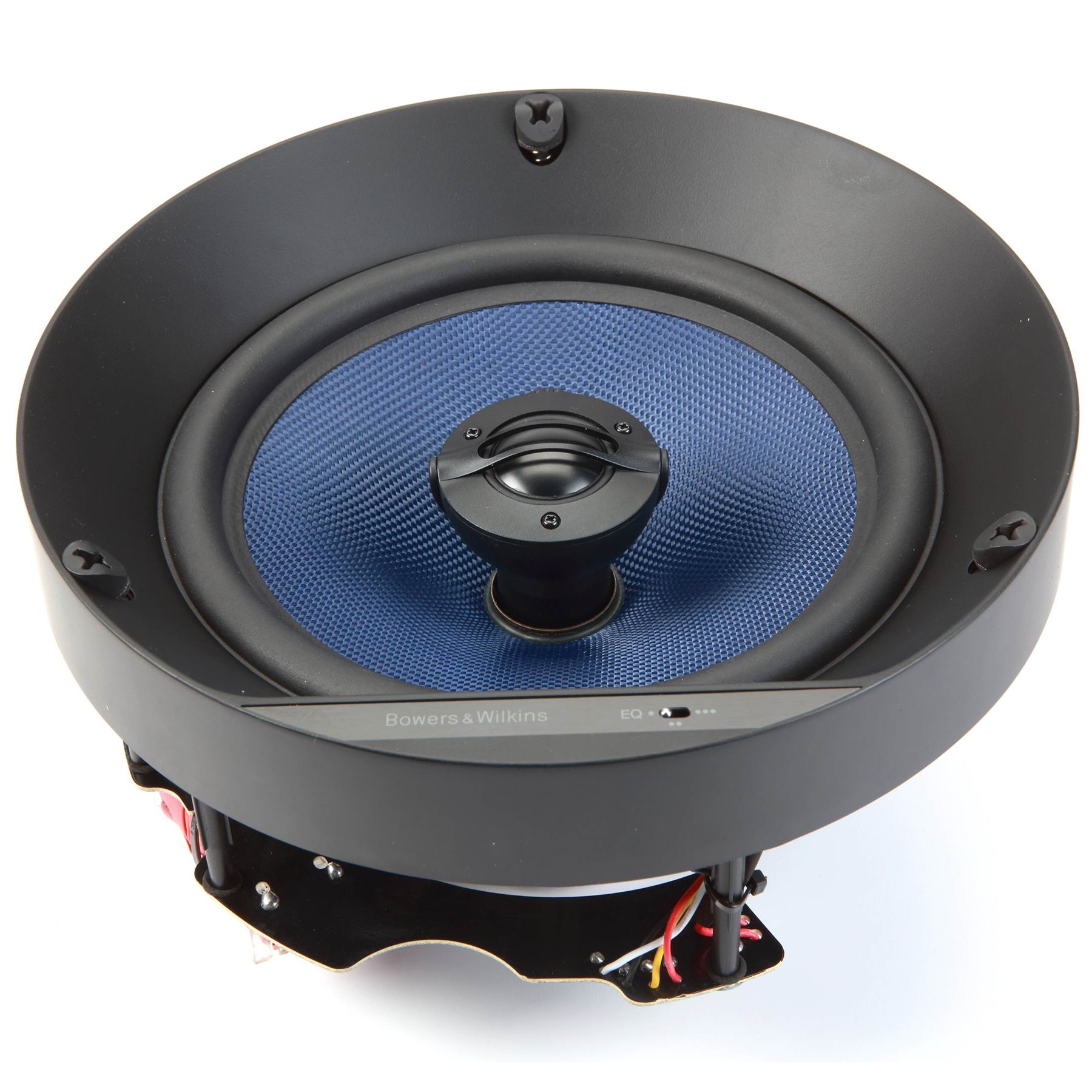

The CCM682 is a high performance ceiling-mount speaker that features a 200mm (8in) Kevlar® cone bass/midrange driver and an aluminum dome tweeter in a neat circular die-cast chassis. Its 30mm coil and 100mm magnet ensure an incredibly efficient and reliable speaker with outstanding sound quality. The aluminum tweeter’s housing pivots for adjustable off-axis treble response. The speaker also has a three-position EQ switch for a better off axis response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass. The blue Kevlar® cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Technical Specifications:

• Description: 2-way in-ceiling system

Drive Units

• 1″ Nautilus™ swirl loaded aluminum dome tweeter
• 8″ blue Kevlar® cone bass/midrange
• Frequency Range (-6dB): 35Hz – 50kHz
• Recommended Amp Power: 25 – 150w
• Sensitivity SPL (2.83V, 1m): 89dB
• Impedance Nominal (min): 8Ω (4.5Ω)
• Frame diameter: 11.4″
• Cut-out diameter: 9.8″
• Depth behind surface: 5.2″
• Protrusion: 0.2″
• Optional pre-mount Kit: C8
• Optional back box: 6C

What to expect in the box:
