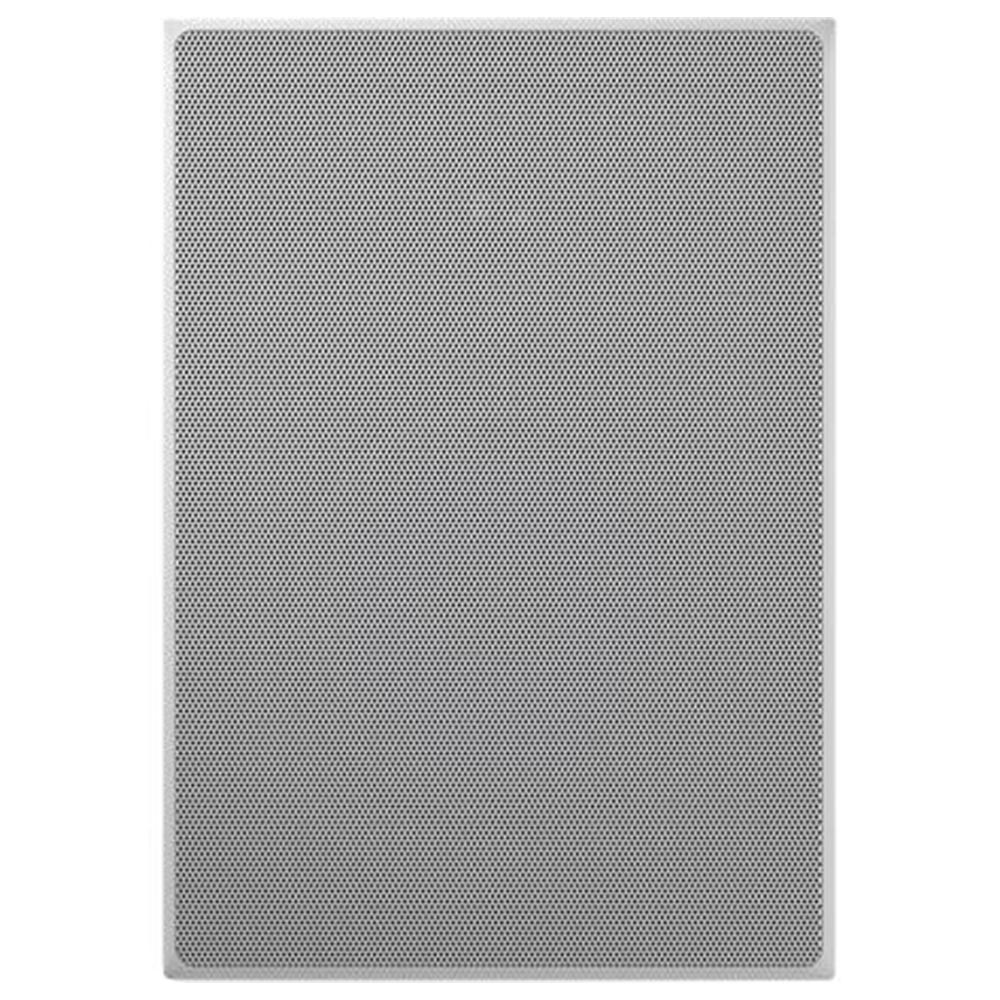

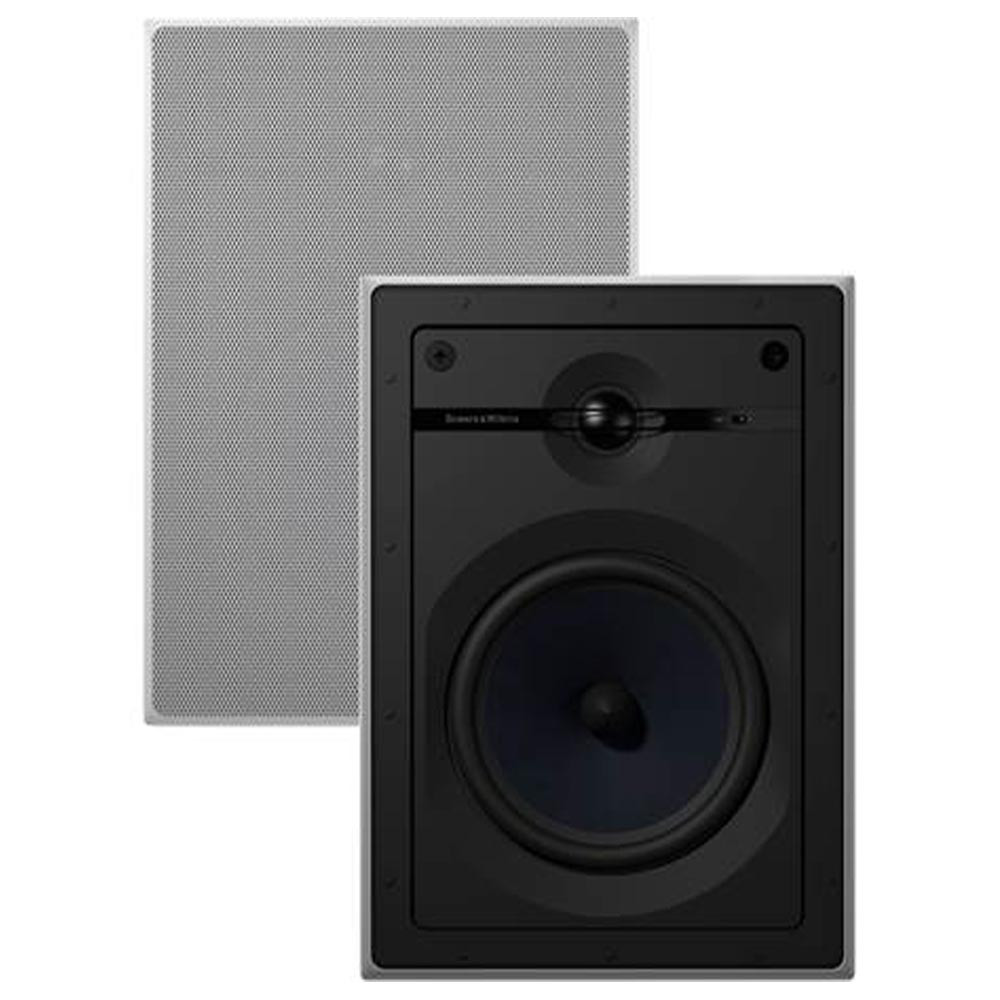

Bowers & Wilkins CWM 663 In-Wall Speaker (Pair) – Bowers & Wilkins

See nothing, hear everything

The CWM663 features a blue Aramid Fiber bass/midrange driver housed in a die-cast chassis which provides the extra rigidity to provide a cleaner, faster bass. Its aluminum tweeter also incorporates a Nautilus™ tube to absorb unwanted sonic radiation. The CWM663 also utilizes a three position high frequency switch to fine tune the sound. The speaker is incredibly easy to install incorporating QuickDogs™ and plug-and-play functionality

Technical Specifications:

• Description: 2-way in-wall system
• Drive Units
• 1x ø25mm (1in) Nautilus™ tube loaded aluminum dome tweeter
• 1x ø150mm (6in) blue Aramid Fiber cone bass/midrange
• Frequency Range (-6dB): 45Hz – 50kHz
• Maximum Amp Power: 25 – 150w
• Sensitivity SPL (2.83V, 1m): 88dB
• Impedance Nominal (min): 8Ω (4.5Ω)
• Frame height: 315mm (12.4in)
• Frame width: 221mm (8.7in)
• Cut-out height: 279mm (11in)
• Cut-out width: 183mm (7.2in)
• Depth behind surface: 95mm (3.7in)
• Protrusion: 4mm (0.2in)
• Pre-mount Kit: PMK W6
• Back Box: BB 6W
