SENSATIONAL BASS

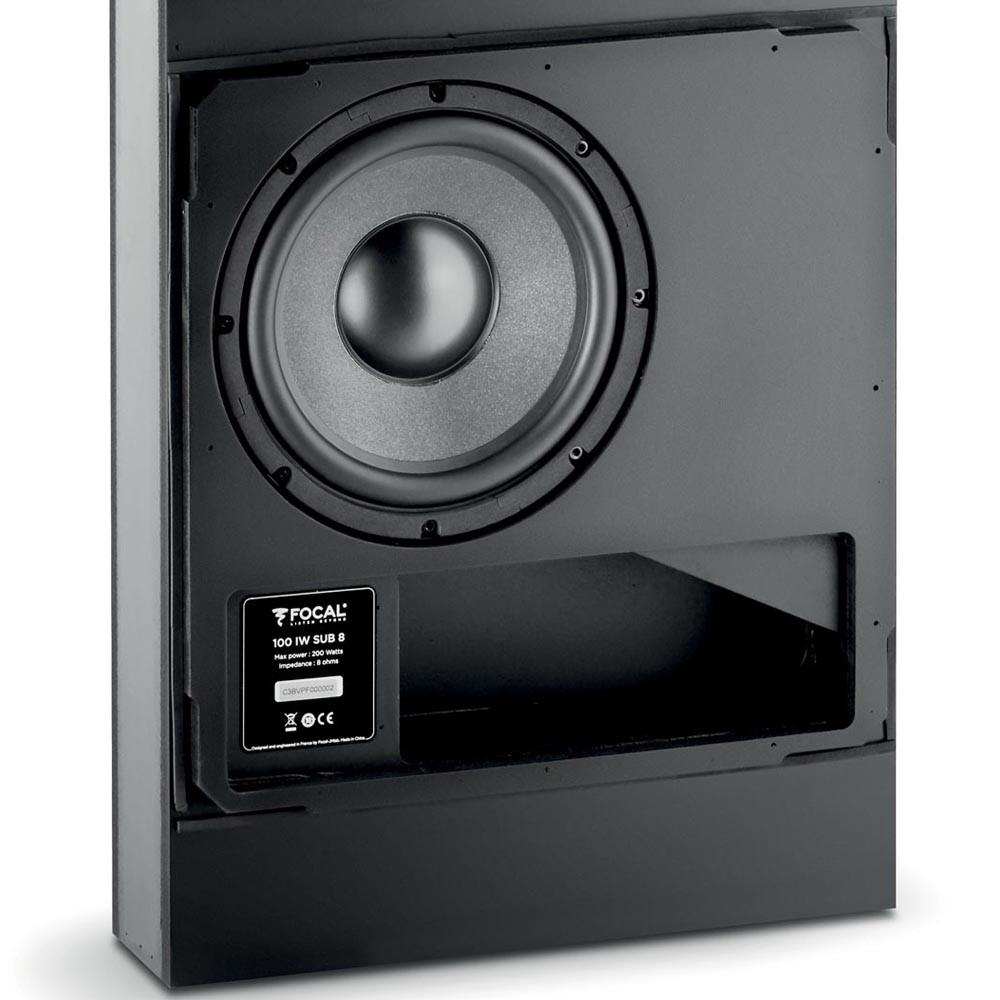

Complete your 100 Series audio/video system with the subwoofer 100 IWSUB8. Including an 8″ Polyglass speaker driver and a front vent with a streamlined inner frame to guarantee no-noise operation, this passive bass-reflex subwoofer can be installed during pre-construction of the walls using 16″ OC joists. With a shallow in-wall depth (33/8″), a high-quality bass reproduction and covered with a low profile magnetic grille which can be painted, it is as high-performance as it is discreet!

In a bid to design the very best products and combinations of audio solutions, Focal has developed a dedicated easy-install amplifier specially tailored for this subwoofer: 100 IWSUB8 Amplifier.

Features:

• Bass-reflex subwoofer with 30Hz low-cut frequency.
• Low depth fitting 16″ OC studs in-wall installation.
• Nominal impedance of 8 ohms, able to be connected by pairs with 100 IWSUB8 Amplifier.
• Specs
• Type: Passive subwoofer
• Speakers: 8″ (21cm) Polyglass Woofer
• Sensitivity (2.83V/1m): 89 dB
• Bandwith (+/-3dB): 34-140Hz
• Cut-off frequency (-6dB): 30Hz
• Nominal impedance: 8Ώ
• Recommended amp power: Max 200W / 4Ώ
• Dimensions (WxDxH): 13 7/8 x 3 7/8 x 51 3/16″ (352 x 98 x 1,300mm)
• Cut-out dimensions (WxH): 137/8 x 513/16″ (352 x 1,300mm)
• Depth from wall: 3 3/8″ (86mm)
• Net weight: 32.3lbs (14.6kg)
