GoldenEar 5.1 System: Triton 7 (Pair), SuperCenter X, Force Field 3 and Super Invisa 525 (Pair)

$3,299.94

The Triton Seven brings Speaker-of-the-Year Award winning Triton Series tower speakers’ performance into a more compact size and even more affordable price range.

Description

GoldenEar 5.1 System: Triton 7 (Pair), SuperCenter X, Force Field 3 and Super Invisa 525 (Pair) – GoldenEar

Triton Seven

The Triton Seven brings Speaker-of-the-Year Award winning Triton Series tower speakers’ performance into a more compact size and even more affordable price range. Although it is the first Triton Tower without a built-in powered subwoofer, it still achieves superbly deep, subwoofer-like impactful bass performance by combining advanced drivers with our highly evolved and sophisticated bass-loading technologies. Mike Mettler of Sound&Vision called the Triton Seven a “real reference speaker for $1400 a pair…they’ll likely become your next reference speakers, just as they’ve become mine”.

Like the Five, the Seven’s strikingly attractive and acoustically purposeful cabinet provides the same performance benefits, as well as looking great. The Seven’s precise and totally boxless imaging characteristics are further enhanced by the narrow front baffle. A complex Linkwitz/Riley crossover perfectly blends the D’Appolito Arrayed twin 5-1/4″ cast basket bass/midrange drivers specifically designed for exceptionally long-throw, for tremendous dynamic range and extraordinarily deep bass response. These surround the same signature High Velocity Folded Ribbon AMT tweeter for high-resolution reproduction of both music and cinema. And dual side-mounted inertially-balanced, planar back-wave-driven radiators deliver impactful, superbly detailed, subwoofer-quality bass performance. The Triton Seven’s high-resolution sonic performance makes it perfect for the highest quality two channel systems as well as the best multi-channel music and home theater systems.

Specifications

  • Driver Complement
  • One High-Velocity Folded Ribbon AMT Tweeter
  • Two 5.3″ High-Definition Cast-Basket Mid/Bass Drivers
  • Two 8″ Planar Back-Wave-Driven Radiators
  • Passive Radiator Surface Area: 32.74in2 (211.24cm2)
  • Efficiency: 89dB 1W/1M @ 4Ω (2.83V/1M)
  • Frequency Response: 40 Hz – 25 kHz typical (-6dB on axis @ 40Hz, anechoic bass response)
  • Nominal Impedance: 4Ω
  • Recommended Amplification: 10 – 300Wpc
  • Dimensions
  • Tower: 5.8″ (14.6 cm) W (front) x 7.3″ (18.3 cm) W (rear) x 11.1″ (27.9 cm) D x 40.3″ (101 cm) H (with base, no spikes)
  • Base: 10.5″ (26.5 cm) W x 14.5″ (36.9 cm) D
  • Weight: 32 lbs (15 kg) / Shipping: 42 lbs (19 kg)

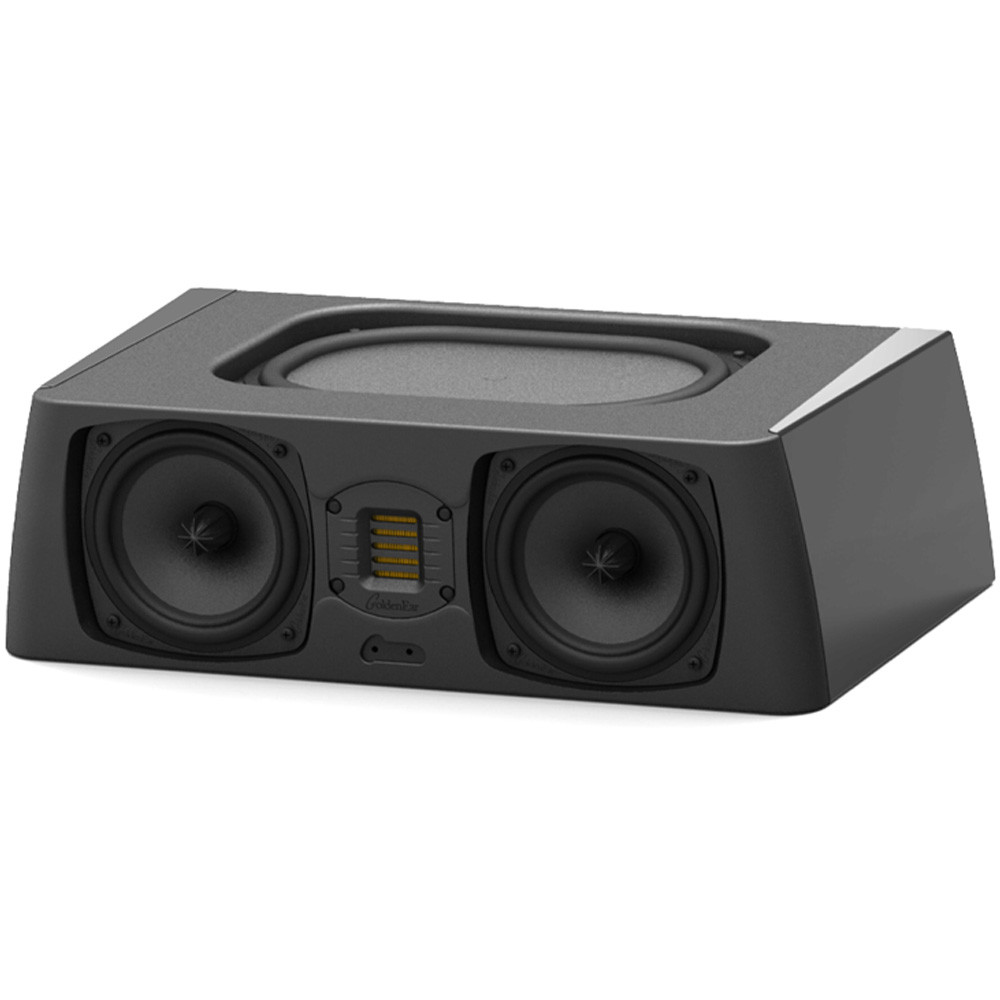

SuperCenter X Center Channel

Our smallest SuperCenter model is an amazingly compact center channel speaker. The SuperCenter X incorporates one 7˝ x 10˝ quadratic planar low frequency radiator for surprisingly full-range performance from a modest sized enclosure. The SuperCenter X is just the perfect size and performance for the typical size living room or family room home theater system.

Specifications

  • Driver Complement
  • One High-Gauss Reference High-Velocity Folded Ribbon AMT High-Frequency Radiator
  • Two 5.25″ Cast-Basket Mid/Bass Drivers
  • One 7″ x 10″ Quadratic Planar Low Frequency Radiator
  • Passive Raditor Surface Area: 53.36in2 (344.3cm2)
  • Efficiency: 90dB 1W/1M @ 4Ω (2.83V/1M)
  • Frequency Response: 39Hz–25kHz typical (-6dB on axis @ 64Hz, anechoic bass response)
  • Nominal Impedance: 4Ω
  • Recommended Amplification: 20 -200Wpc
  • Dimensions: 20″ (50.8 cm) W x 5.75″ (14.6 cm) H x 11″ (28.0 cm) D
  • Weight: 15 lbs (7 kg) / Shipping: 22 lbs (10 kg)

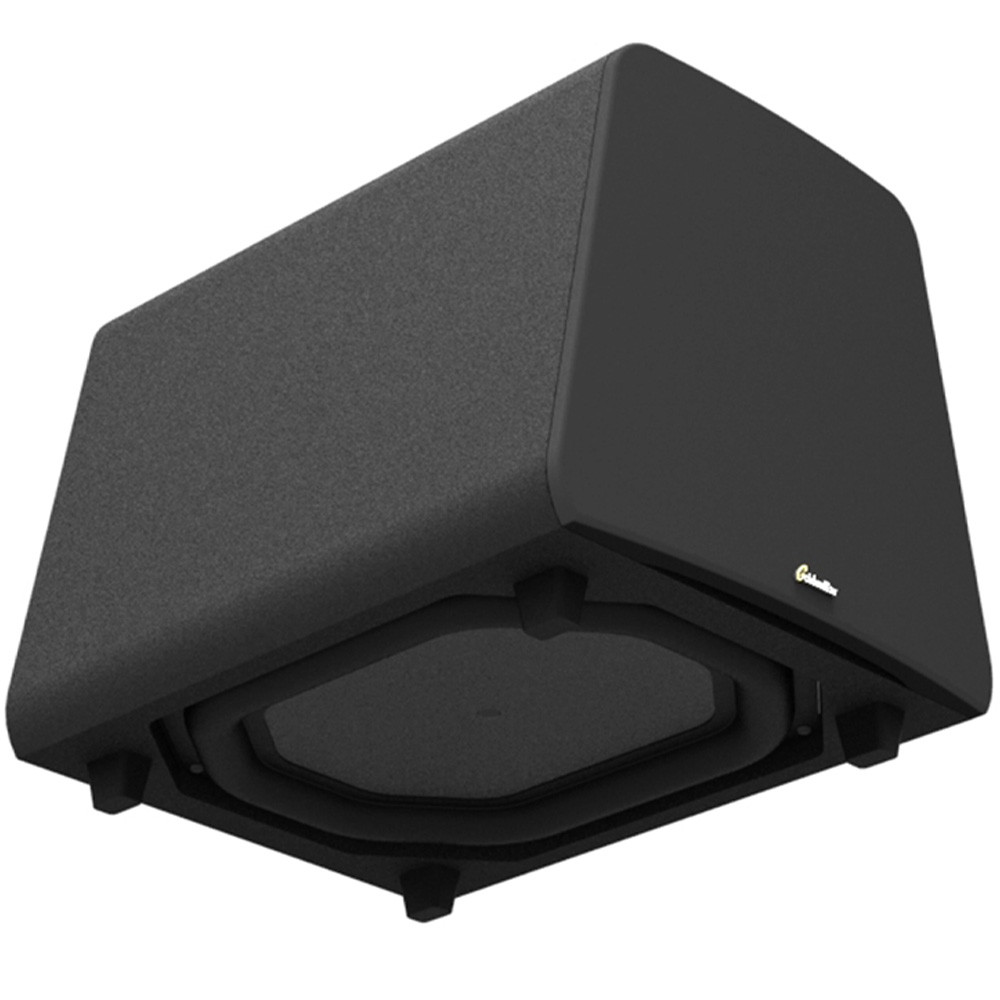

ForceField 3

The ultra-compact 8 inch subwoofer ForceField 3 is the smallest and most affordable ForceField sub – but don’t let its small size and price fool you, with its 1000-watt digital amp, 8” high-power long-throw active driver and 9-5/8”x 11-3/8” quadratic planar back-wave-driven radiator, this baby ROCKS!

Specifications

  • Driver Complement: One 8″ Long-Throw High-Output Bass Driver
  • One 9″ x 11″ Quadratic Planar Back-Wave-Driven Radiator
  • Passive Radiator Surface Area: 69.36in2 (447.5cm2)
  • Frequency Response: 27Hz–150Hz (-6dB on axis, anechoic)
  • Amplifier: 1000W peak/500W RMS
  • Speaker Level High-Pass Filter: 6dB per octave at 150Hz (approx.)
  • Speaker Level Low-Pass Filter: 12dB per octave continuously variable from 40–150Hz
  • Low‐Level Input (Mono): Unfiltered (no low-pass), direct coupled
  • Dimensions: 11.4″ (28.9cm) W x 15.9″ (40cm) D x 11.5″ (29.2cm) H (with feet)
  • Weight: Product: 26lbs (11.8kg); Shipping: 31lbs (14.1kg)

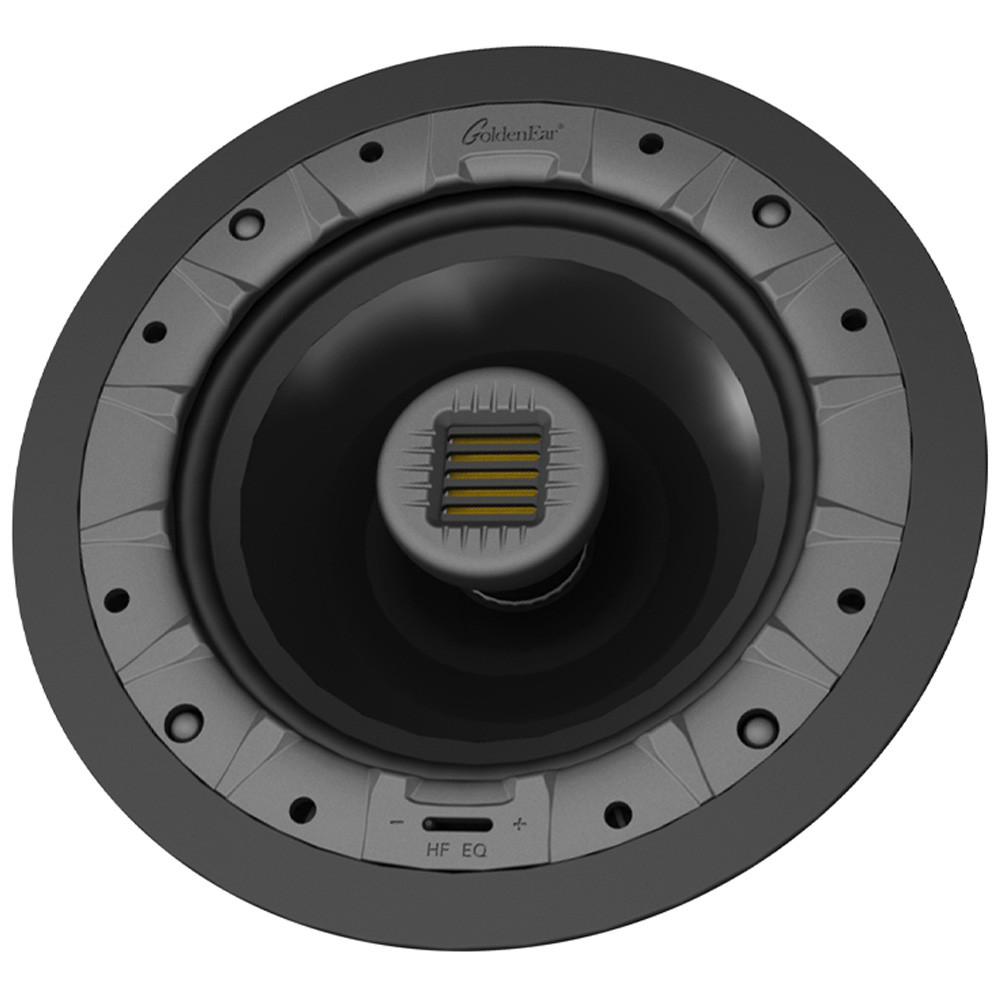

Invisa 525

The Invisa 525 and 650 are designed for in-ceiling and in-wall use. The driver motor structures and cone/voice coil assemblies (5.25″ in the 525 and 6.5″ in the 650) are based on those utilized in GoldenEar’s Triton and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.

The Invisa 525 and 650 ceiling speakers / in wall speakers come standard with a round, paintable MagneLock™ grille and there is an optional square grille available. Special attention has been given to achieving wide sonic dispersion that is so important in distributed audio systems. The tweeters twist and pivot to optimize performance and a high-frequency equalization switch allows precise matching to any environment.

Specifications

  • Driver Complement
  • One Pivotable High-Velocity Folded Ribbon AMT Tweeter
  • One 55.25″ (13.33cm) High-Definition Cast-Basket Mid/Bass Driver
  • Efficiency: 90dB 1W/1M @ 4Ω (2.83V/1M)
  • Frequency Response: 42Hz–25kHz typical (-6dB on axis @ 100Hz, anechoic bass response)
  • Nominal Impedance: 4Ω
  • Recommended Amplification: 10 – 200Wpc
  • Dimensions
  • Speaker: 7.2″ (19.6cm) diameter x 3.5″ (8.6cm) D
  • Square Grille: 7.7″ (19.6cm) x 7.7″ (19.6cm)
  • Round Grille: 7.7″ (19.6cm) diameter
  • Cutout: 6.2″ (15.7cm) diameter
  • Weight: 3.5lbs (1.7kg); Shipping: 5lbs (2.3kg)

Audiolab Stereo & Video Center

Additional information
Weight 157 lbs
Dimensions 72.5 × 92.63 × 44 in
Line/Type

Packaged Systems
