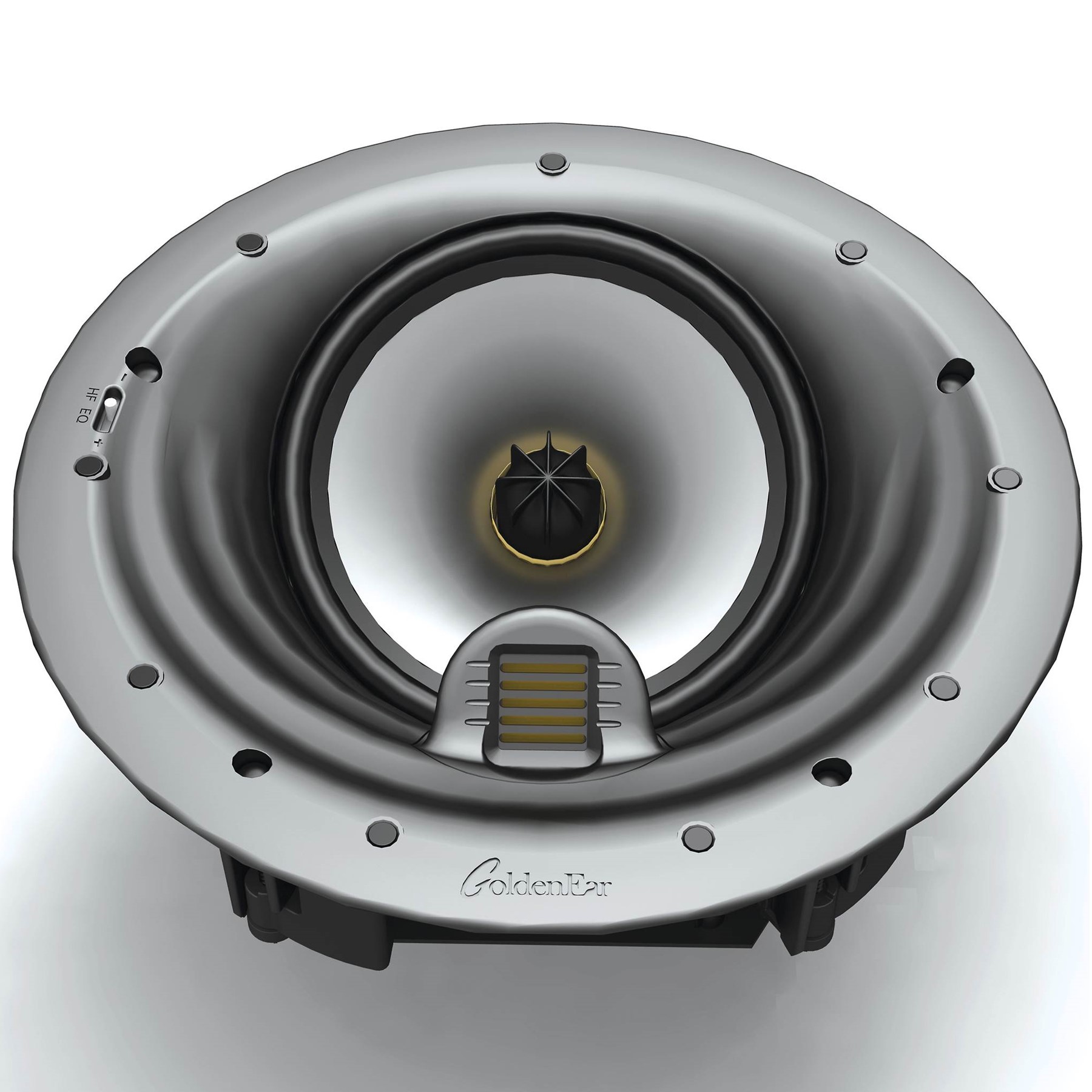

GoldenEar Invisa HTR 7000 in-ceiling speaker with angled drivers designed for home theater applications (each) – GoldenEar

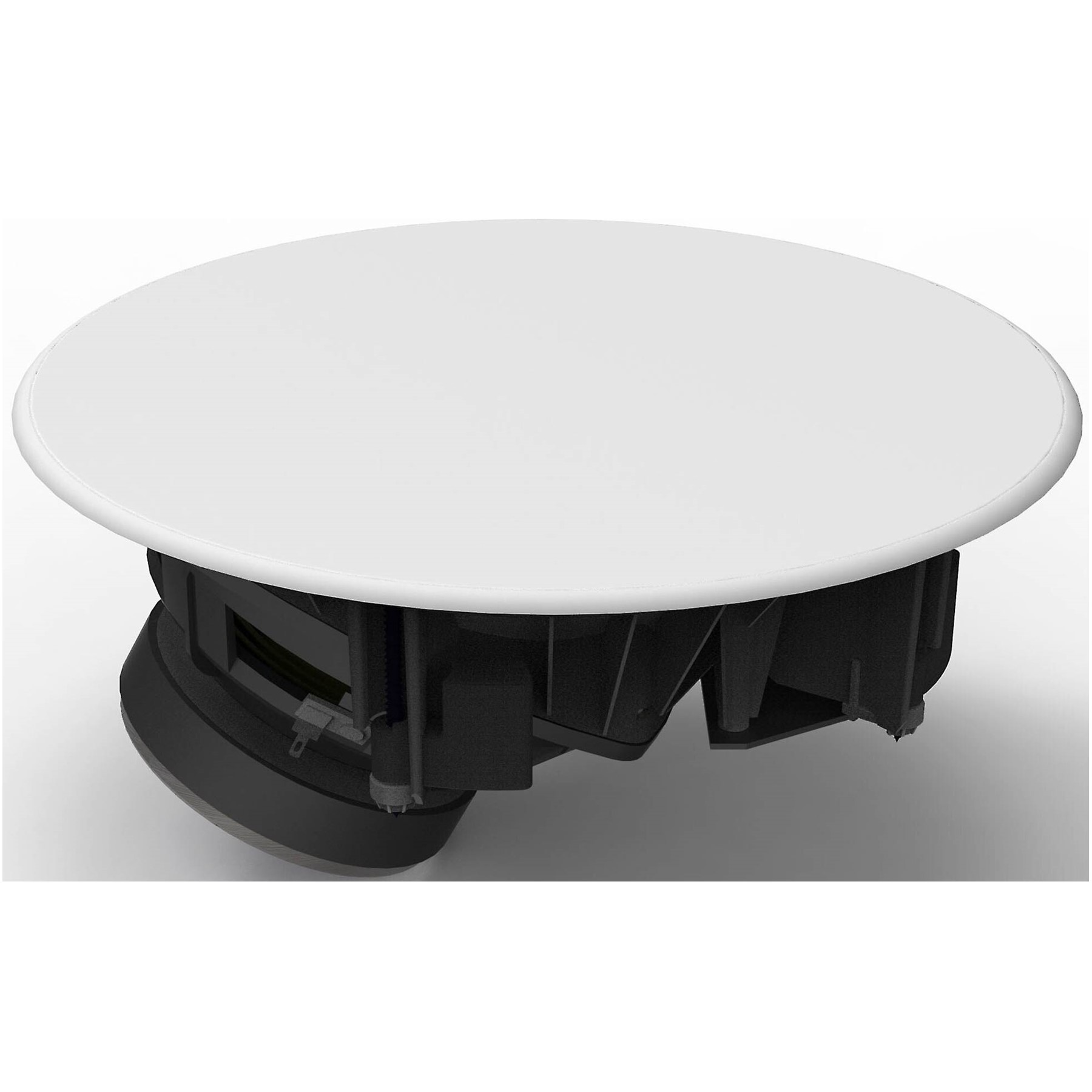

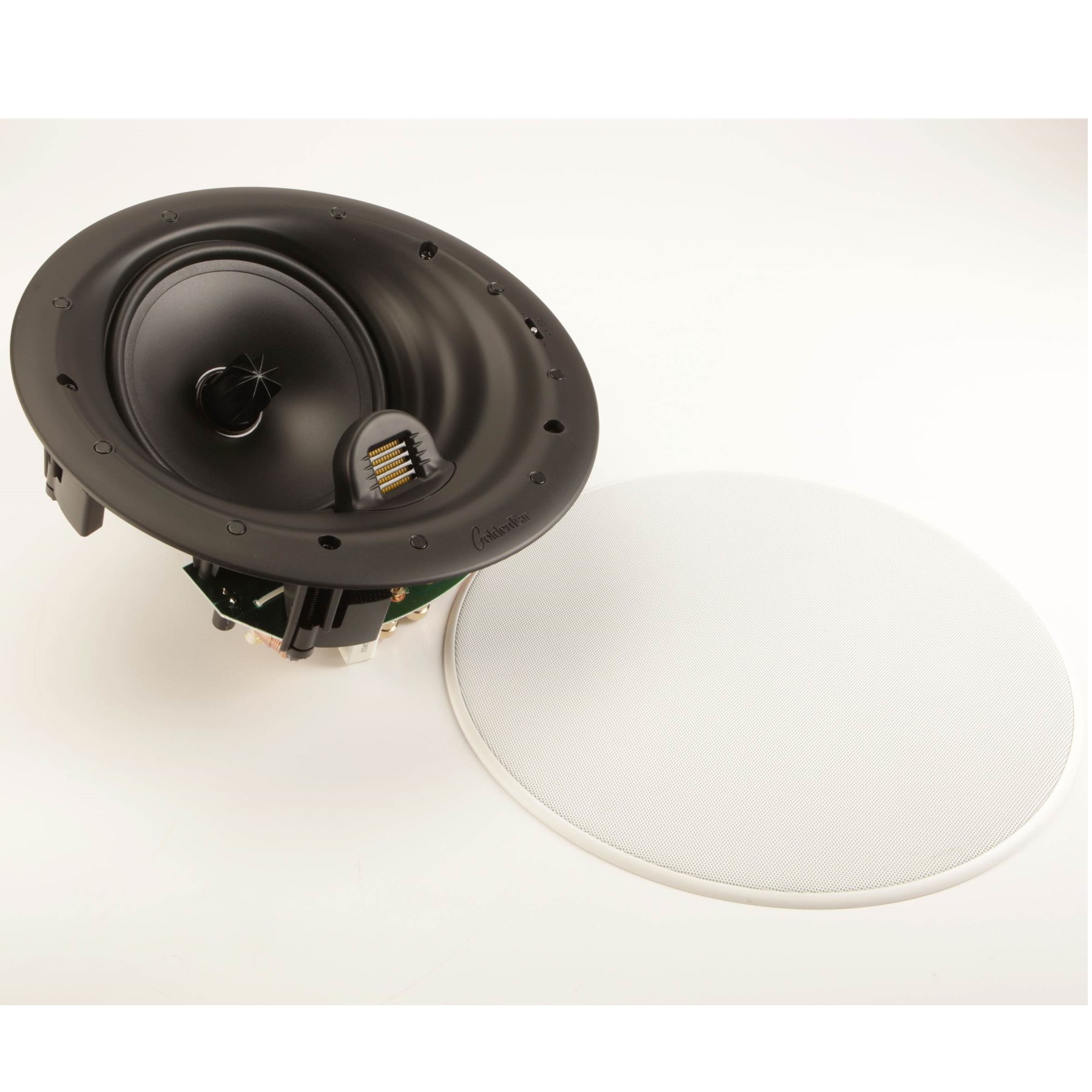

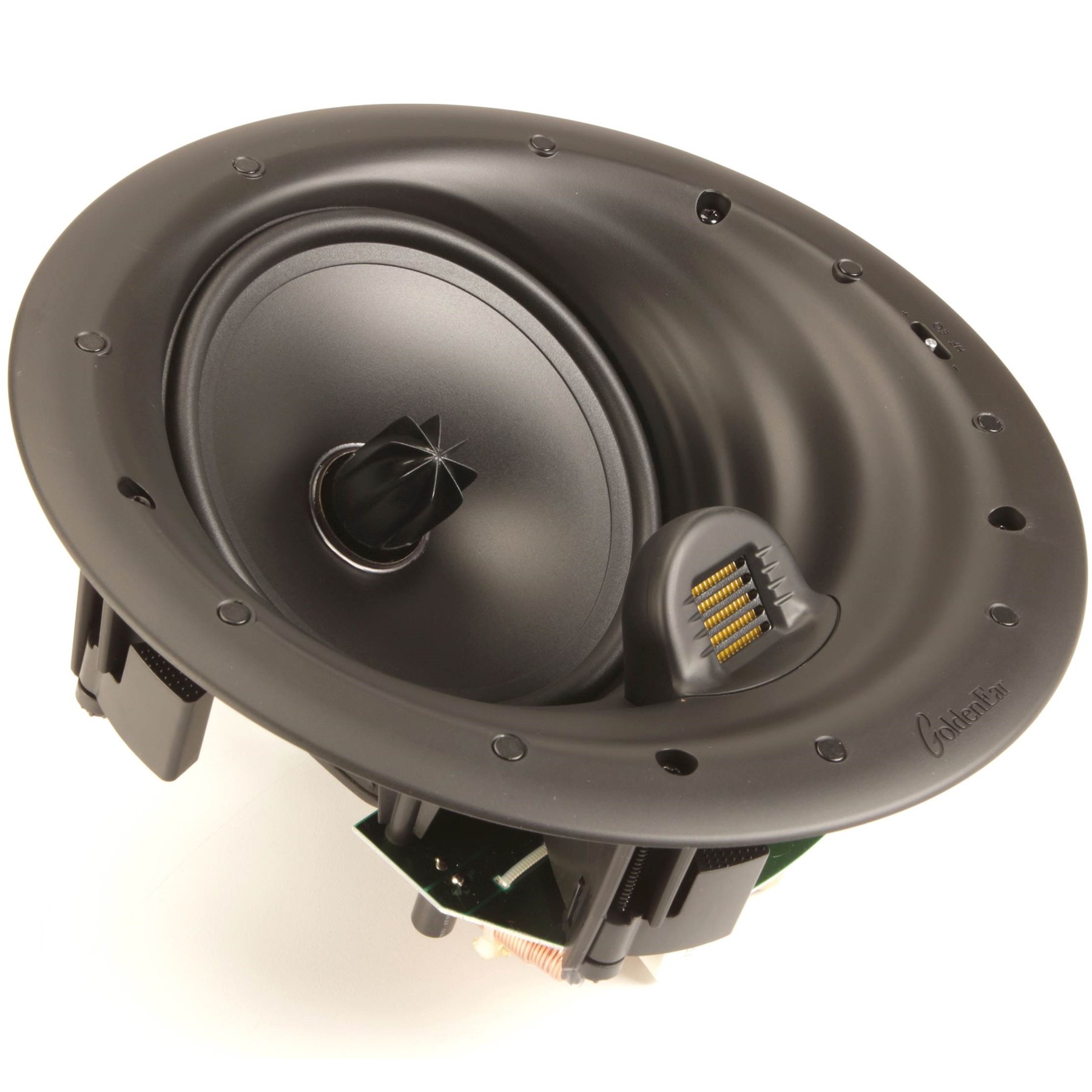

The Invisa Home Theater Reference 7000 is designed for use as a ceiling-mounted main front stage left, right, or center speaker in high-quality home theater or music systems, as well as for use as a side or rear surround speaker. It has a flat, round, magnetically attached micro-perf grille that covers the mounting flange for an attractive, nearly invisible look. The drivers are mounted at precisely calculated angles so that they face the normal listening position for exceptional imaging, superior frequency response, remarkable clarity and precise focus.

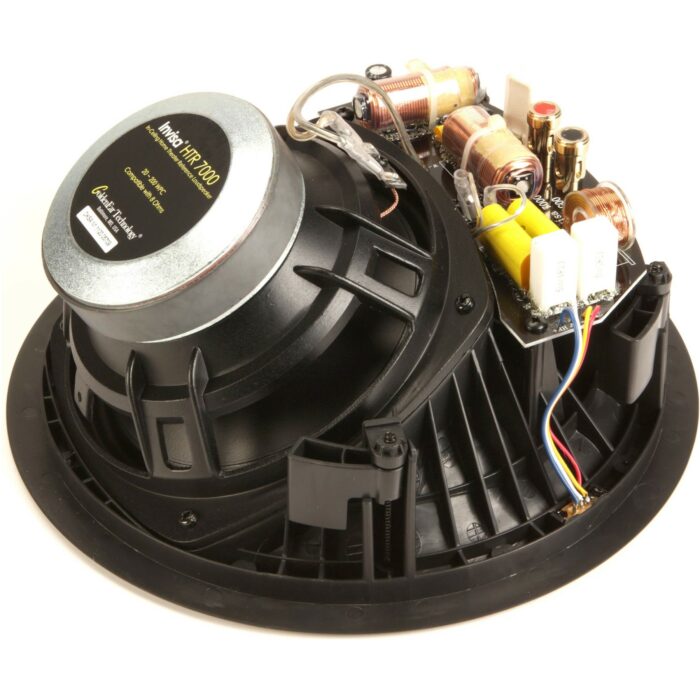

The driver complement combines the same superb 7″ high-definition cast-basket driver used in the acclaimed Aon 3, with one of GoldenEar’s signature technology High Velocity Folded Ribbon tweeters. A complex crossover network, with a high-frequency equalization switch, assures perfect blending. In order to achieve open, box-less, three-dimensional imaging that appears to come from across the front wall rather than the ceiling, great care has been taken to minimize deleterious diffraction effects as well as to optimize wave-launch into the room. This is achieved by utilizing and combining our Focus-Field Technology with a unique Non-Periodic Waveform (NPW) Diffraction Control and Wave-Launch construction.

Specs:

• Speaker Dimensions: 10˝ diameter x 5˝ depth

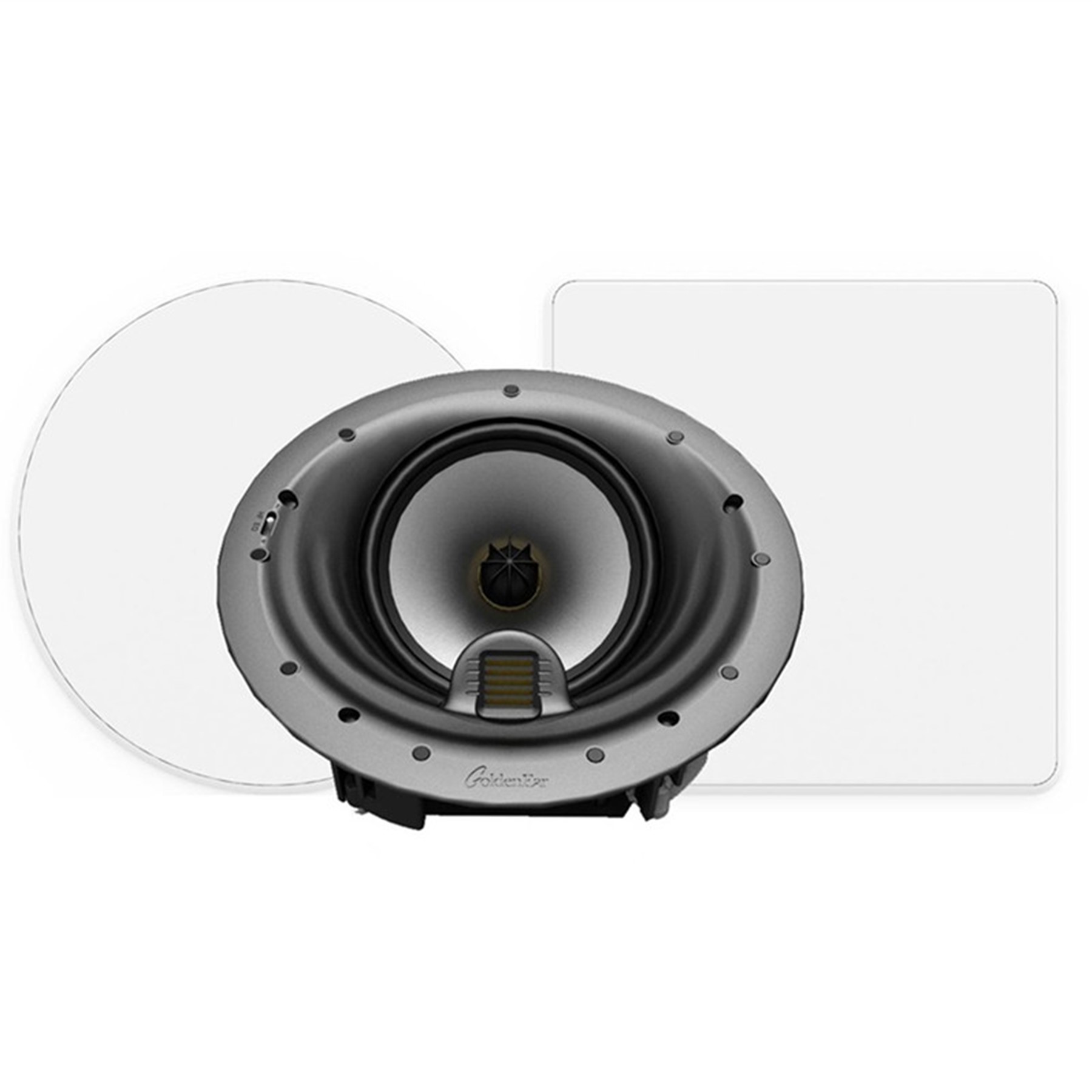

• Square Grille Dimensions: 10-9/16˝ x 10-9/16˝
• Round Grille Dimensions: 10-9/16˝ (26.82 cm) diameter
• Cutout: 9˝ diameter
• Weight: Product: 4.5 lbs./ Shipping: 6.5 lbs.
• Frequency Response: 25 Hz – 35 kHz
• Efficiency: 90 dB
• Nominal Impedance: Compatible with 8 ohms
• Driver Complement: One – 7˝ (17.78 cm) High-Def. Cast-Basket MVPP™ Mid/Bass Driver, One – HVFR™ High-Velocity Folded Ribbon Tweeter
• Recommended Amplification: 10 – 250 watt/channel
