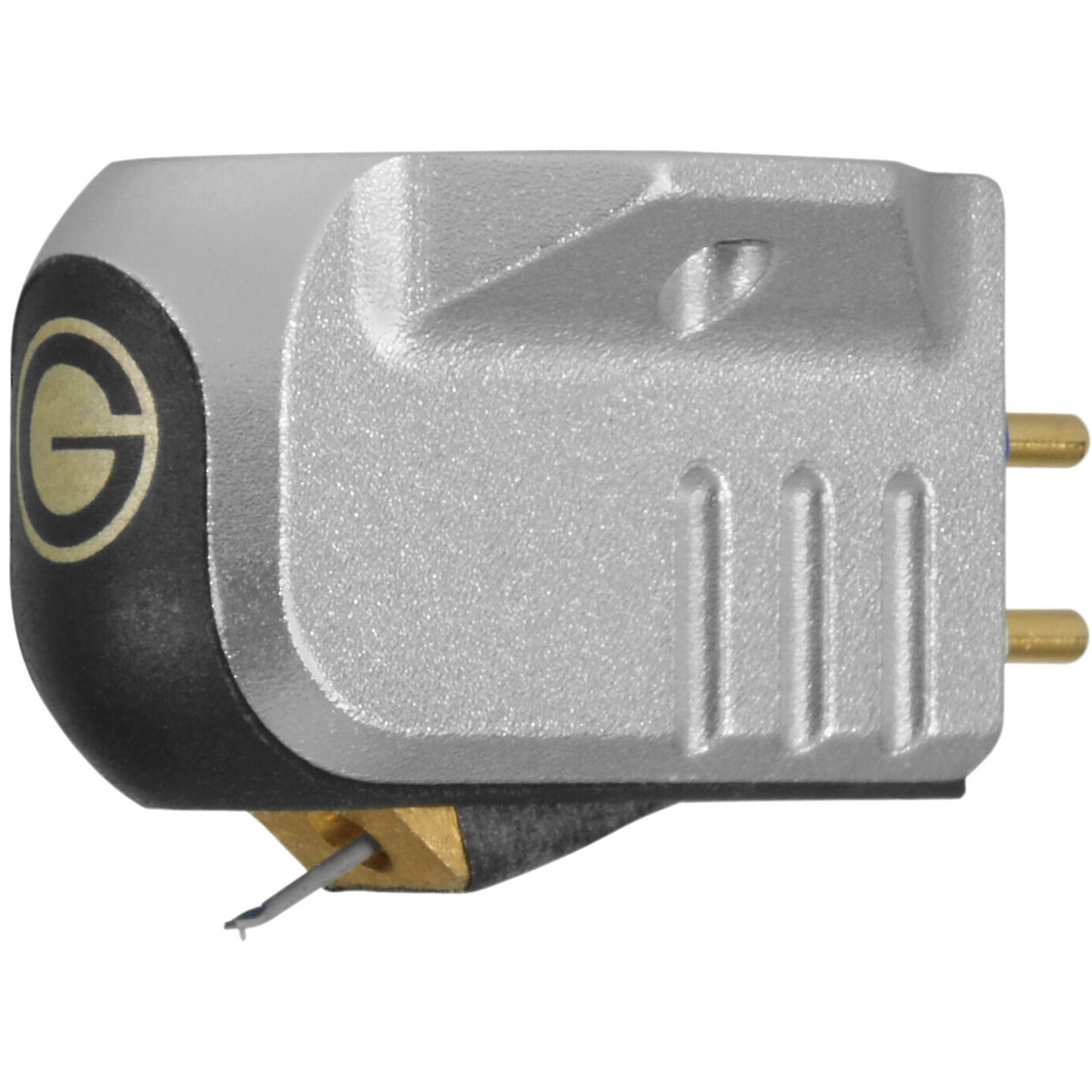

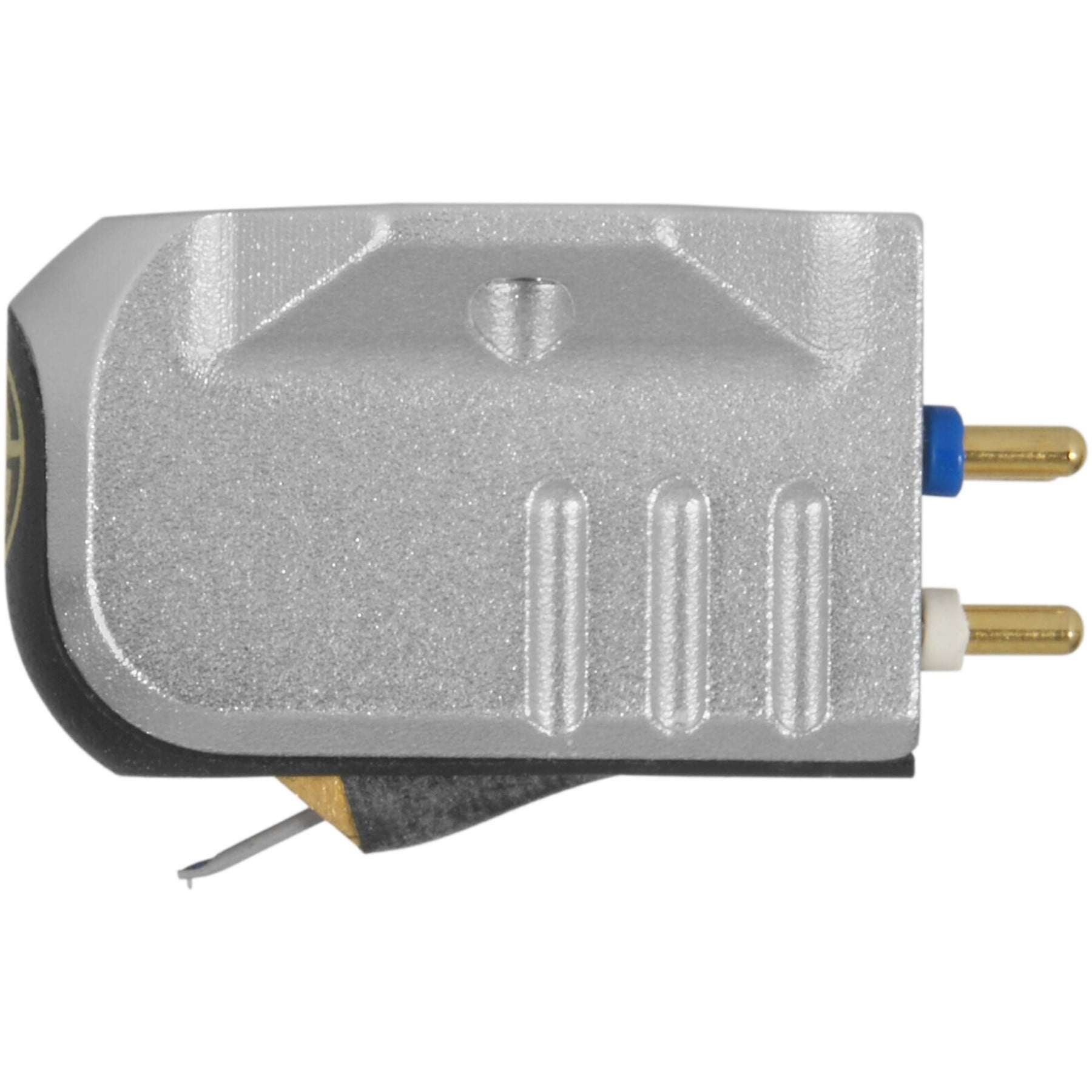

Goldring Ethos Low-Output Moving Coil Cartridge – Goldring

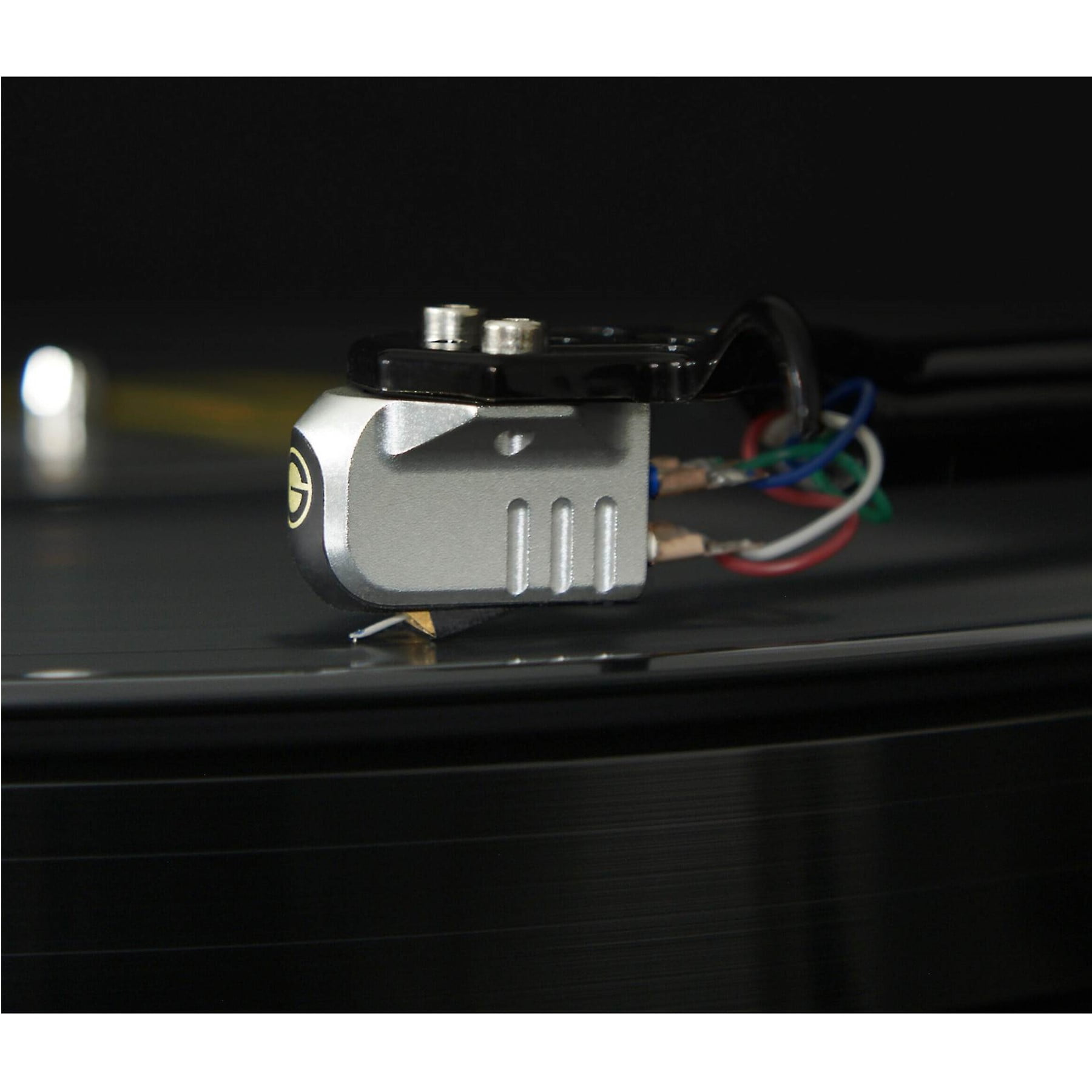

Ethos is a truly high-end cartridge featuring a vital-shank, nude-diamond stylus. This polyhedral, line-contact profile was chosen because it has a very low tip-mass and a large contact area whilst being very narrow from front to back; even enabling the undistorted retrieval of ultrasonic frequencies in a recording. In order to properly process this information, at the heart of the Ethos cartridge is Goldring’s hand-built GOL-1 moving-coil generator. Featuring a hand-wound cross-shaped, soft-iron armature and married to a low resonance aircraft aluminum chassis, each one is precision tuned by our expert craftsmen to achieve our best ever level of performance. The result is that one becomes simply immersed in the musical experience …and that’s our whole Ethos.

Line-Contact Stylus
The line-contact diamond profile provides a large contact area with the groove wall, improving the retrieval of high frequency detail and reducing groove wear. Its vital-shaped shank has a low tip mass giving the design exceptionally good trackability.

Alloy Cantilever
The stiff and lightweight alloy cantilever tube has been tuned to the ideal length for cartridge stability and ride height. Its length has been optimized to reduce inertia in the suspension system and improve trackability.

Cross-Shaped Armature
The coils are wound around a cross-shaped armature of pure, high-permeability, Swedish iron. The reduced un-sprung mass improves the ability for the stylus to track the groove wall and the coil separation minimizes cross-talk, improving the stereo image.

Optimized Suspension
The new damper pad uses a bespoke butyl rubber compound to keep the system critically damped. Combined with an expertly tensioned tie-wire, the cartridge remains ultra-stable even during the loudest and most complex passages.

Neodymium Magnet
A very light and powerful neodymium magnet is clamped between two pole shoes creating a perfectly uniform magnetic field gap, within which the cross armature is suspended. This gives Ethos its typically flat and extended frequency response.

Aluminum Body Shell
The body is precision-milled from a low density, rigid, aircraft grade aluminum which helps to maintain a low effective mass and enables it to dissipate unwanted resonances into the tonearm where they are effectively ‘grounded’.

Specifications:

• Stylus profile: Vital line-contact
• Cantilever: Aluminum alloy
• Replacement stylus: Factory replaceable
• Frequency range: 10 Hz – 32 kHz
• Frequency response: ± 2 dB (35 Hz – 20 kHz)
• Channel balance: <1 dB at 1 kHz
• Channel separation: >30 dB at 1 kHz
• Sensitivity: 0.5 mV ± 1 dB @ 1 kHz, 5 cm/s (rms)
• Static compliance: 25 mm/N
• Dynamic compliance: 15 mm/N
• Vertical tracking angle: 20°
• Load resistance: 100 Ω
• Load capacitance: 100 – 1000 pF
• Internal inductance: 7.5 µH
• Internal resistance: 4 Ω
• Cartridge mass: 7.7 g
• Total mass (incl. fixings): 8.5 g
• Fixing centers: 12.7 mm (0.5 in)
• Playing weight: 1.5 – 2.0 g (1.75 g)
