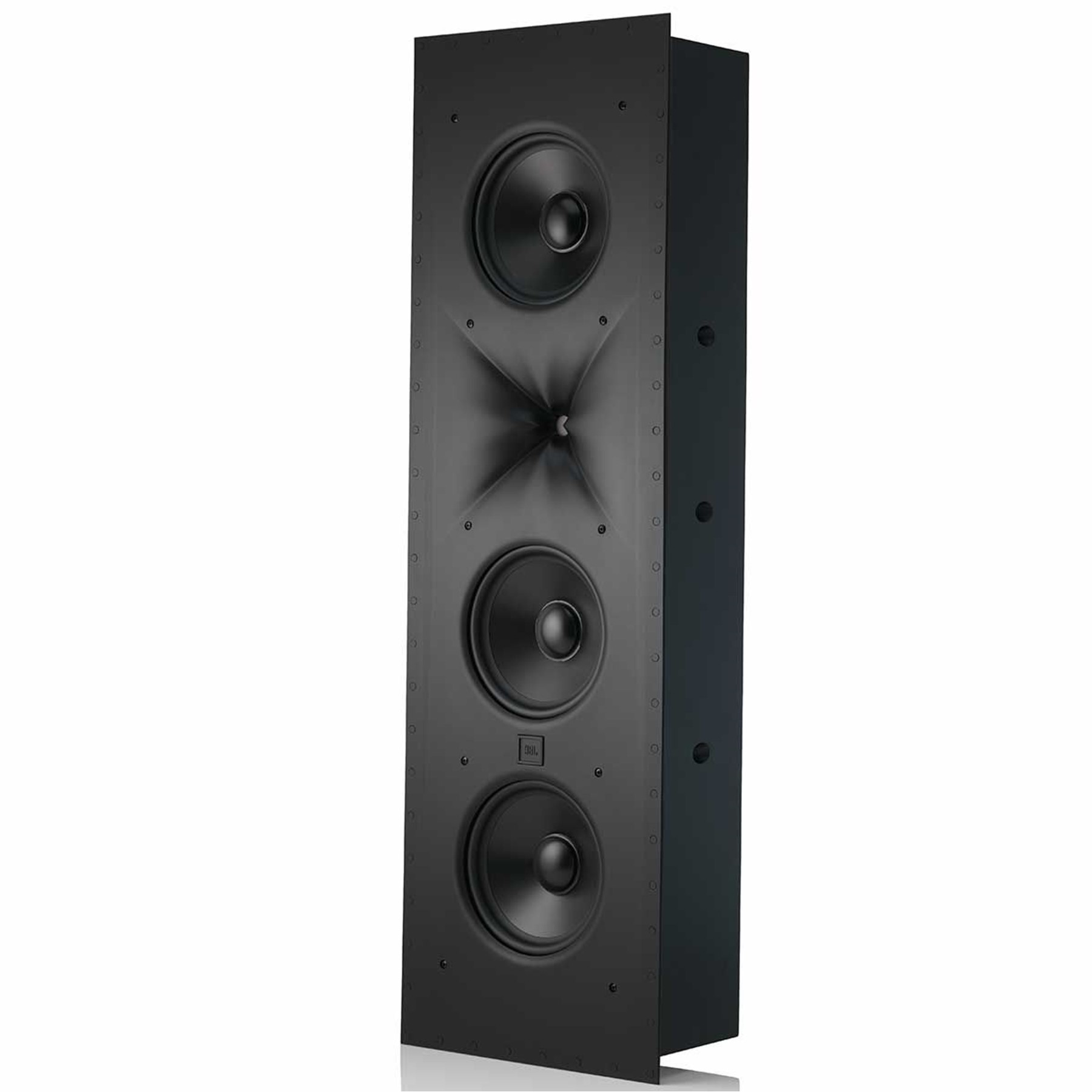

JBL Synthesis SCL-2 2 .5-Way Triple 8″ In-Wall Loudspeaker (each) – JBL

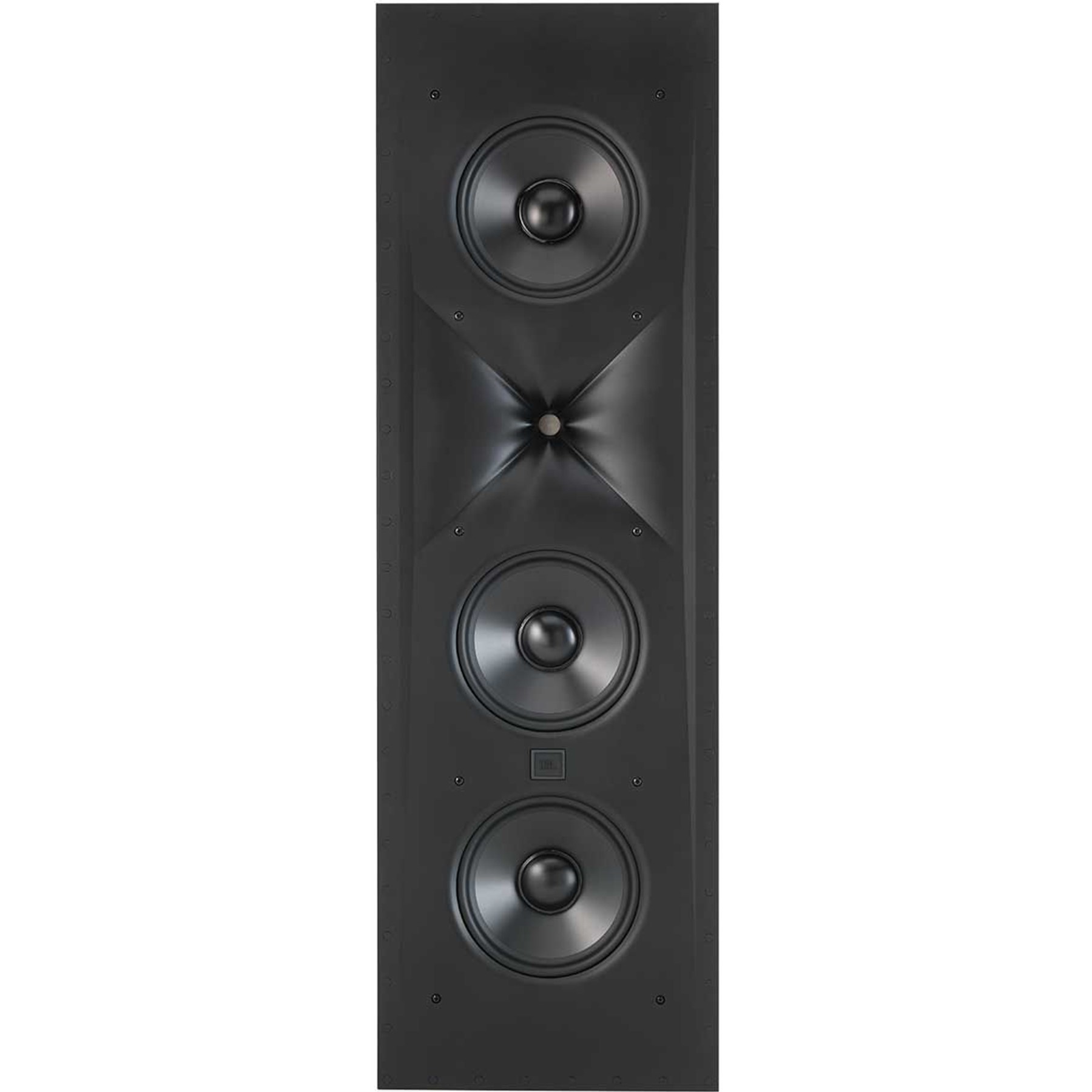

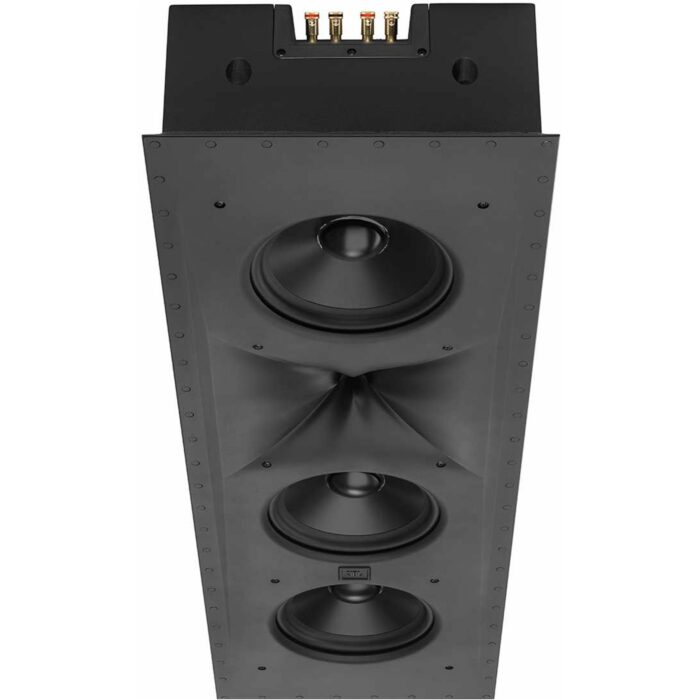

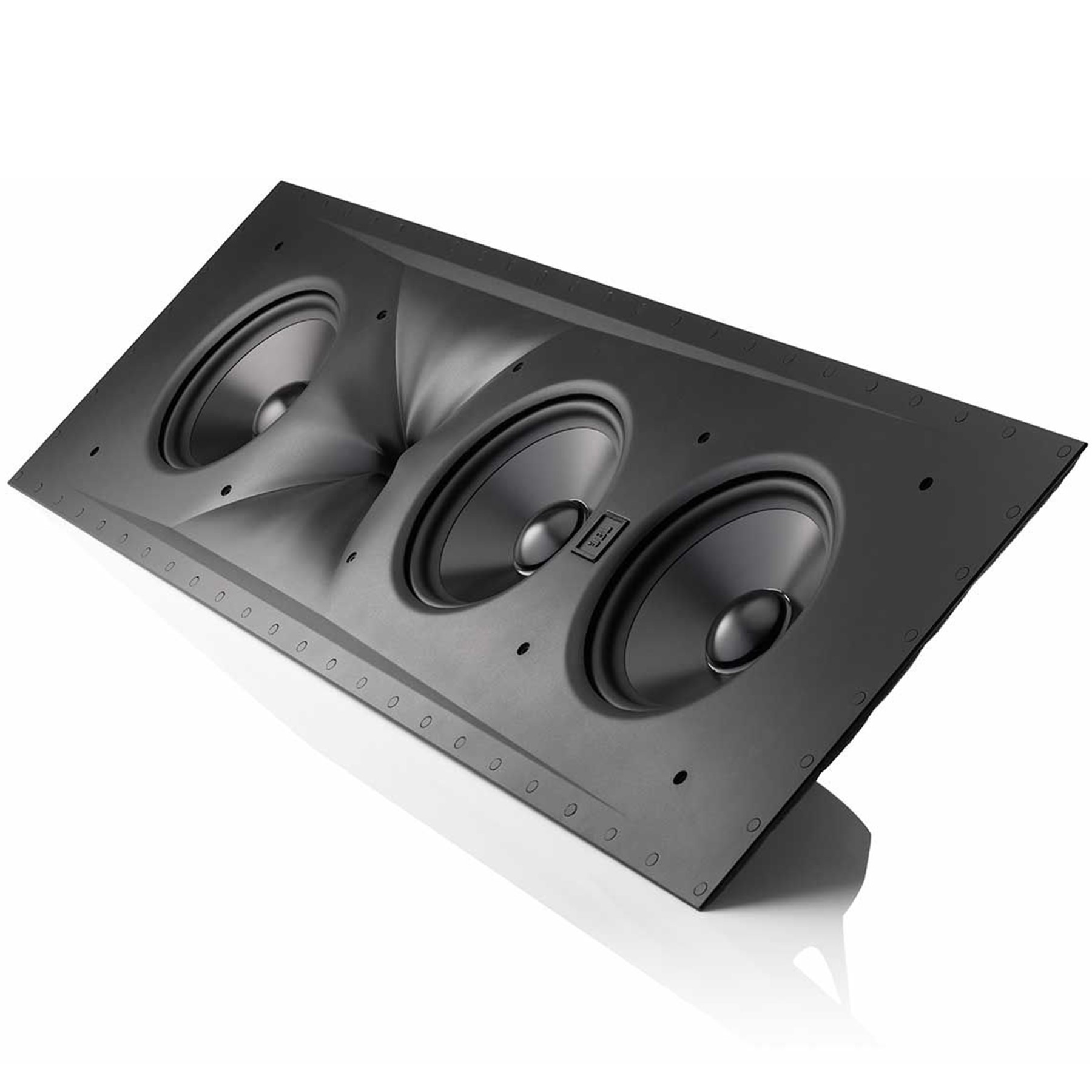

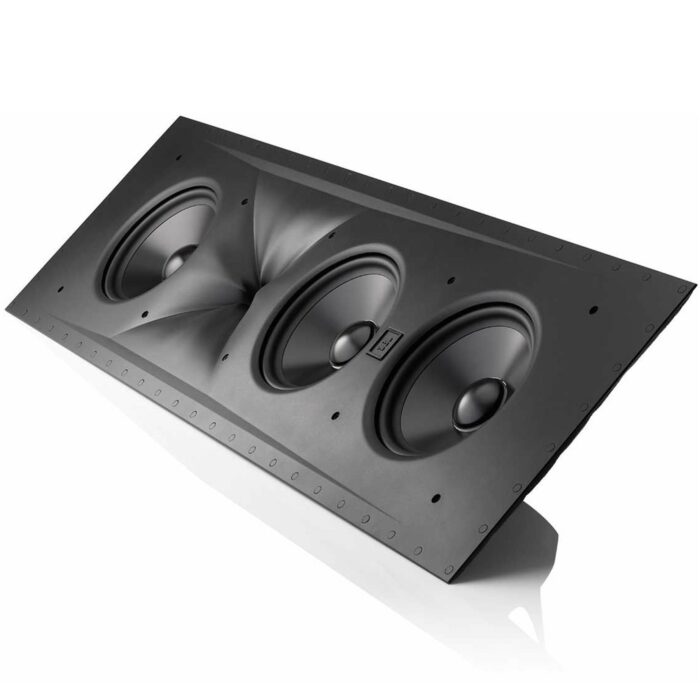

The SCL-2 is a custom in-wall loudspeaker designed primarily for use as an LCR or surround in larger systems. It features JBL’s patented D2415K dual 1.5-inch compression driver mated to a large format High-Definition Imaging (HDI) horn. Triple 8-inch Advanced Aluminum Matrix cone cast-frame woofers operate in a 2.5-way network configuration allowing for installation vertically or horizontally without lobing or other acoustical issues found in traditional designs. The integrated MDF enclosure is designed for installation in standard 2×6 wood frame construction, and Internal connections allow for bi-wiring or bi-amplification in advanced installations. The SCL-2 delivers unparalleled performance in a wide variety of applications and is ideal for use in medium, large, and extra-large rooms.

SPECS:

• Speaker type: 2½-way in-wall loudspeaker
• Low frequency transducer: Three 8” (200mm) cast-frame, Advanced Aluminum Matrix cone woofers
• Mid/High frequency transducer: D2415K, 1.5” (38mm), dual annular ring Teonex® diaphragm compression driver mounted to Sonoglass® horn/baffle
• Maximum recommended power: 445 Watts RMS (CEA-426B specification, calculated onto the SCL-2 rated load impedance)
• Frequency response (-6 dB on-axis): 57 Hz – 25 kHz
• Coverage area (-6dB@20kHz): 80 x 70 Degrees (Hor x Vert)
• Coverage area (-6dB@10kHz): 100 x 100 Degrees (Hor x Vert)
• Sensitivity (2.83V@1m): 92dB
• Nominal Impedance: 6 Ohm
• Crossover frequencies: 225Hz; 1.3kHz

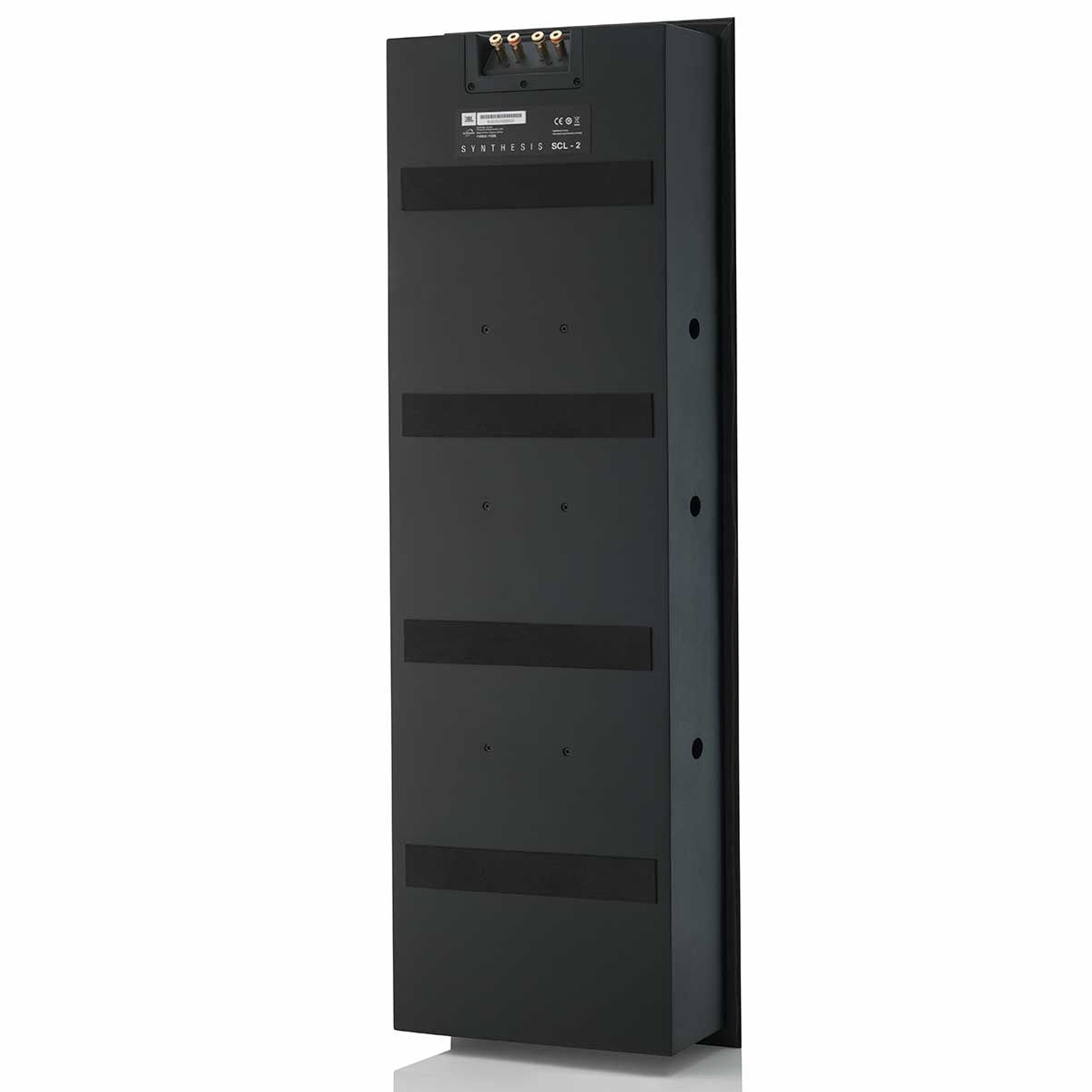

• Enclosure type: Sealed in-wall mount with included back box

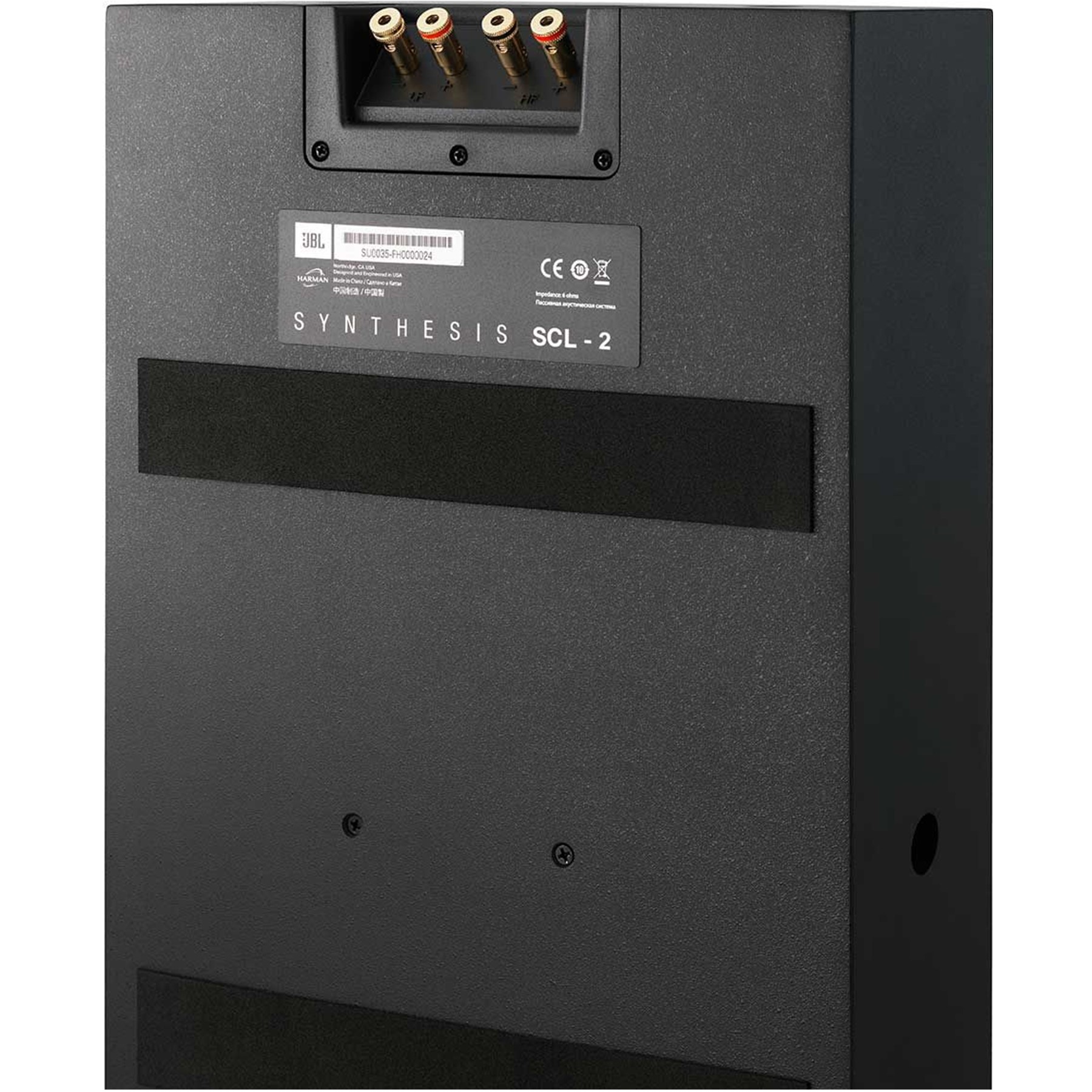

• Inputs: Dual gold-plated binding posts
• Finished grille dimensions (H x W): 40.25” x 12.84” (1022.4mm x 326mm)
• Final cutout dimensions with backbox (H x W): 38.5” x 11.75”
• Mounting depth with backbox: 5.8” (147mm)
• Weight: 53.5 lbs. (24.3 kg)

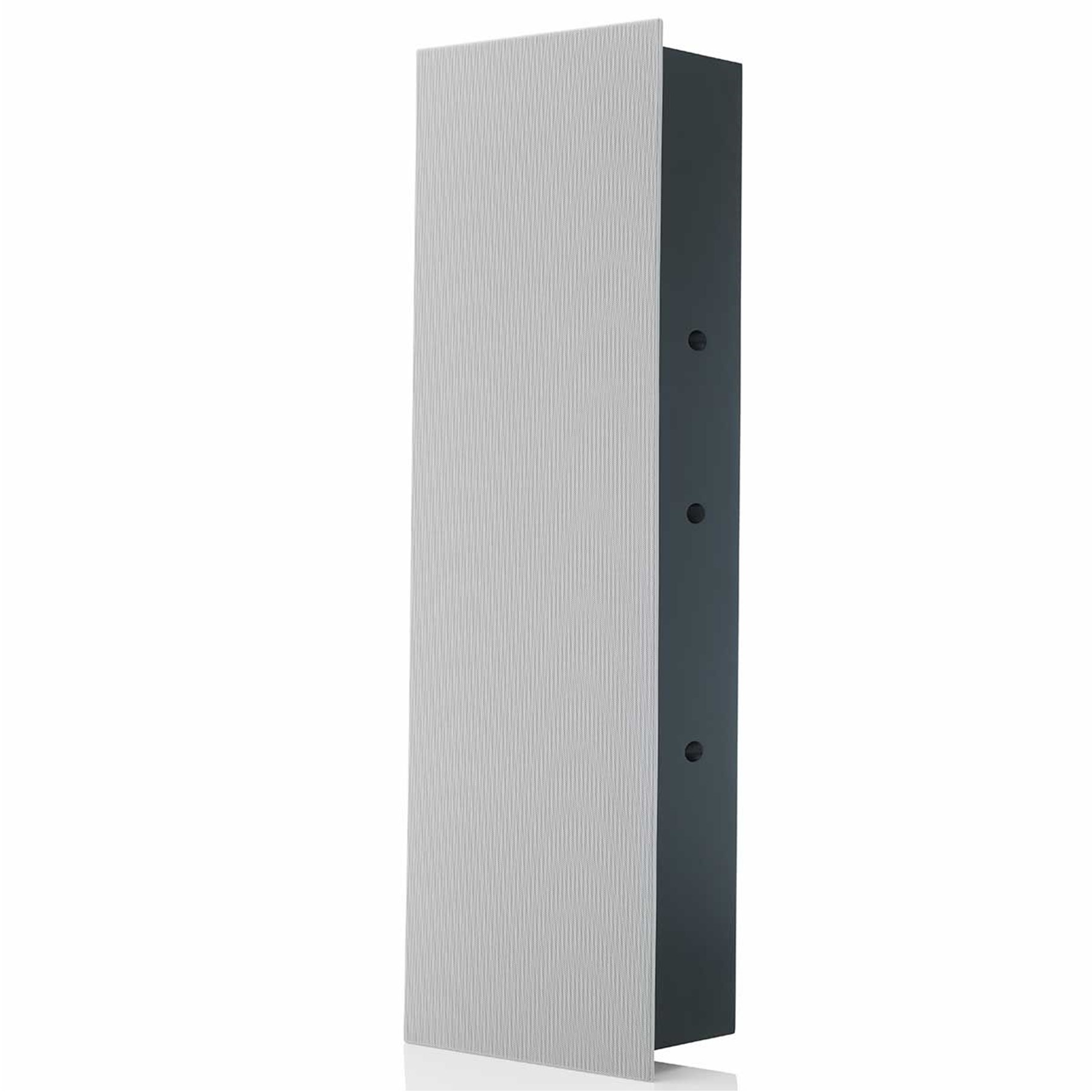

• Finish: Matte Black with white paintable grille
