The IW150A is a versatile in-wall/in-ceiling speaker, designed for the ultimate home theater experience

The IW150A. Targeted primarily as a Dolby Atmos-friendly in-ceiling model, it can also be used for other in-wall cinema or multi-room music applications. Its single 15-degree angle-fixed tweeter makes the IW150A ideal for effects-based sound in multi-speaker setups.

The debut of the new 150 member means that, along with the IW28S subwoofer, there is within the 150 Series a complete in-wall/ in-ceiling seamless solution for reference-grade home cinemas.

The Versatile use of the IW150A makes it fit in any position. Turn it – UP, SIDE or DOWN your choice.

Specifications for the IW150A:

Sound

• Nominal system impedance: 4 ohm (Z-min 3 4 ohm)
• Frequency Response: 80-20K Hz (average response in room +/- 3 dB)
• Frequency Roll Off: 80 Hz (-9 dB 80 Hz near field)
• Crossover Frequency: 2 0K Hz “Phase focused” (2nd order)

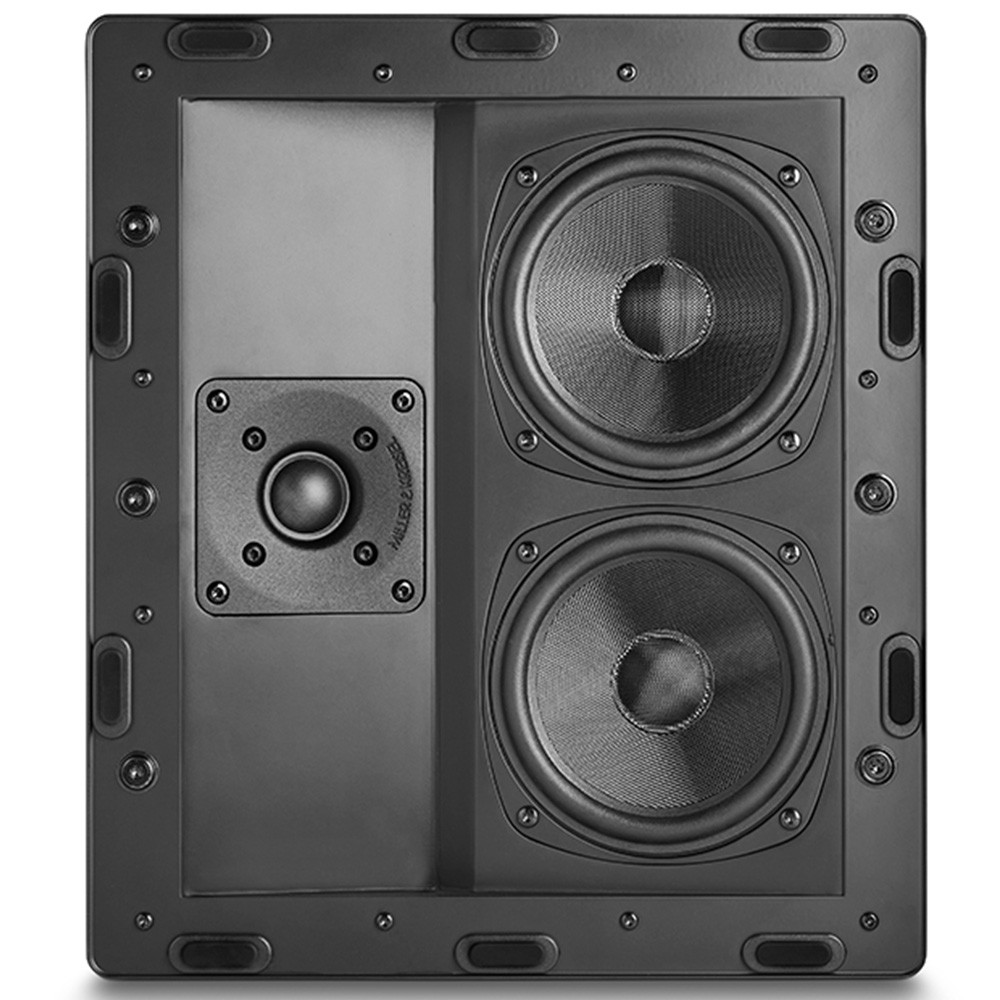

• Tweeter: 1 x 1,1” Dome Coated silk dome / Low compression
• Tweeter Angle: 15 0º Angle fixed
• Woofer: 2 x 5 25” Coated glass fiber
• Power Handling: 180 watt Long term IEC-268-5 (cycled input 77-20K Hz)
• Power Handling: 90 watt Rated IEC-268-5 (constant input 77-20K Hz)
• Recommended Amplifier Power: 25-400 watt Recommended amp power Min / Max
• Sensitivity: 90 dB Average SPL 2 83 volt / 1mtr (on axis 200-10K Hz)
• Max SPL Continued: 110 dB Sinewave 100-8000 Hz / THD – 10%
• Max SPL Peak: 116 dB Sinewave 100-8000 Hz / THD – 10%

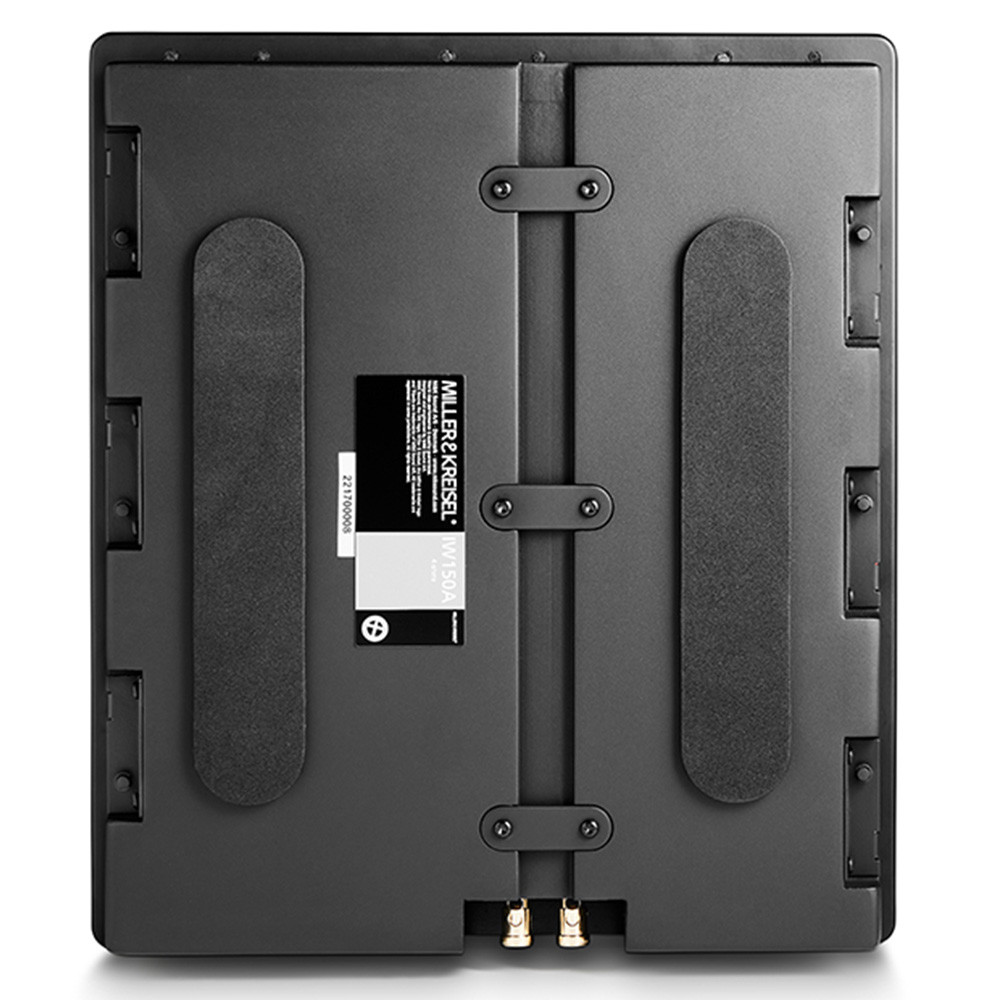

• Connection: Terminal Gold Plating Push terminal 4mm cable

Colors

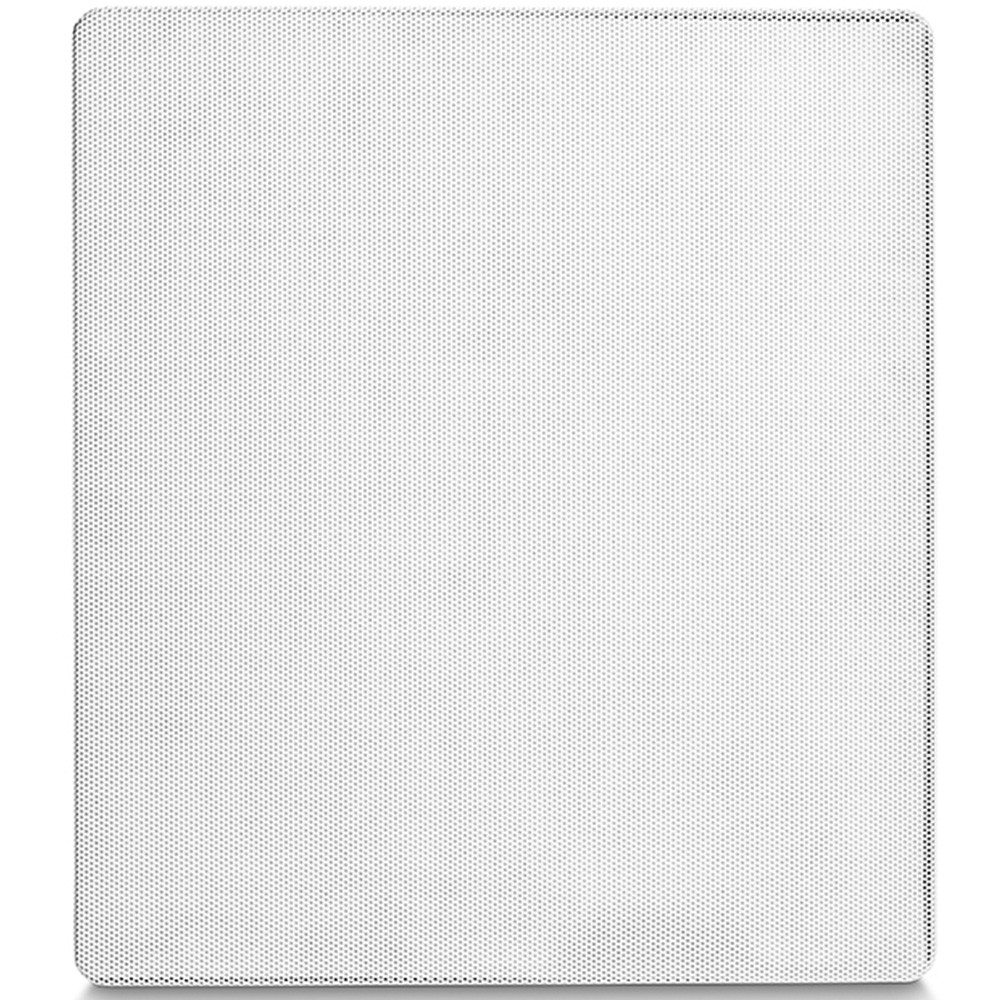

• Finish: Paint Black cabinet Metal white grille

Dimensions

• Cutout (H x W): 13.03 x 11.33 inch / 331 x 288 mm
• Cabinet Dimensions (H x W): 12.95 x 11.25 inch / 329 x 286 mm
• Cabinet Depth: 3.74 inch / 95 mm
• Dimensions Grille (H x W x D): 14.17 x 12.48 inch / 360 x 317 mm
• Weight: 15.0 lbs / 6.9 kg
