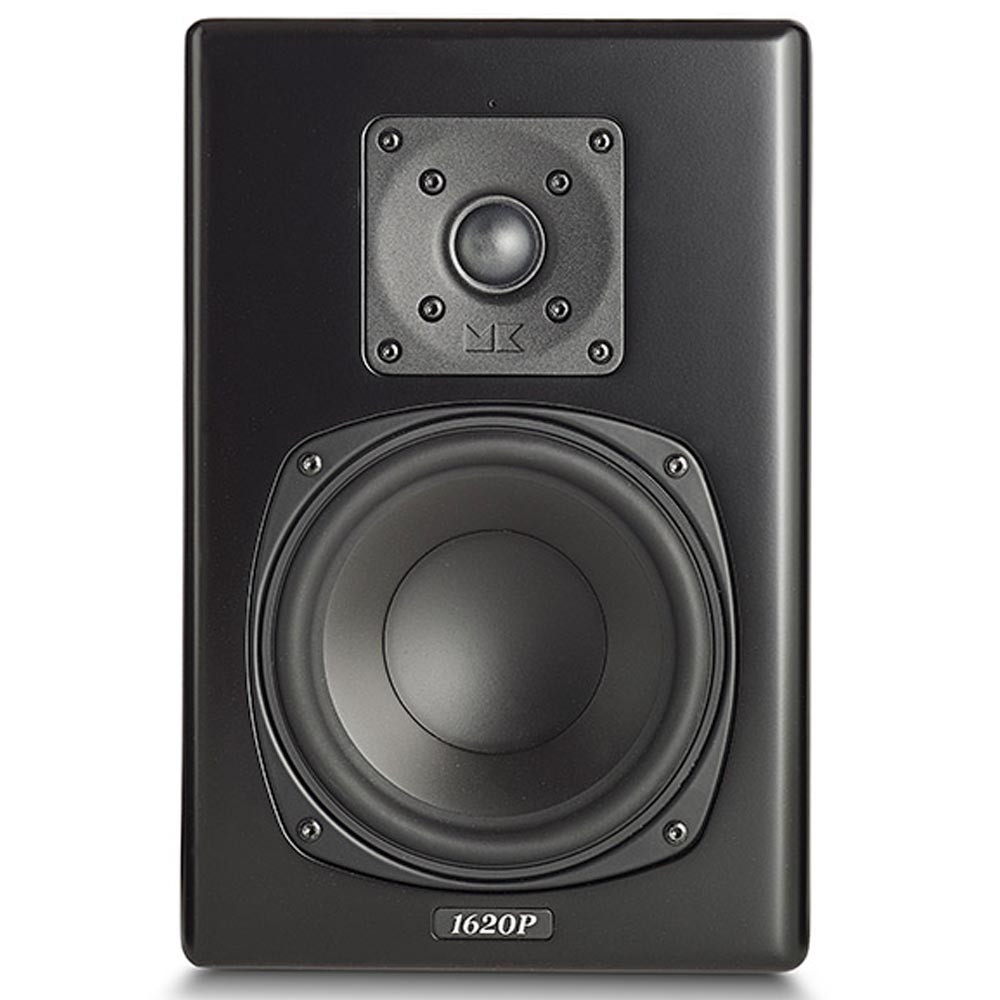

M&K MPS1620P Studio Monitor New Edition (Each) – M&K

The MPS 1620P studio monitor feature a long stroke 6.5” driver and a low compression 1” dome tweeter to provide impressive sound impact for high resolution “sound productions”.

The dual channel power amplifiers drive the bass-midrange and high frequency sections with great precision and full control of signal dynamics.

The MPS1620P can operate both as a sealed or a ported loudspeaker due to the removeable “port plug system” at the rear side of the speaker.

When operating with subwoofer, the choice of sealed box configuration and filter set to “normal” will provide the classic M&K Sound sub/sat crossover configuration, while when using the MPS1620P as a stand-alone monitor, the ported configuration with filter set to “full-range” will extend bass response and provider precise “broadband” response for near field monitor applications.

MPS1620P is a flexible high precision studio monitor to use for reference recordings, editing, processing, and master mixing for music and movie productions.

Features:

• Sound
• Amplifier power bass-midrange: 100watt RMS/200watt peak
• Amplifier power high frequency: 50watt RMS/100watt peak
• Bass/Midrange: 1 x 6.5” polypropylene woofer
• High frequency Drivers: 1 x 1” soft dome tweeter
• Frequency Response
• Sealed/normal setting 80-22KHz +/-2dB / (wall or console loaded) 45-22Khz +/-2dB
• Ported/normal setting 45-22KHz +/-2dB
• Ported/full range setting / (wall or console loaded) 35-22Khz +/-2dB
• Total Harmonic distortion: 0,025% into 8 ohms LF channel / 0.025% into 4 ohms HF channel
• Signal to noise ratio: 100dB
• AC power consumption: Standby/Average/Max (15W, 30W, 240W)
• AC line voltage: 115VAC/60Hz 2A – 230VAC/50Hz 1A
• Input impedance: unbalanced 11kohm / balanced 22Kohm
• Input sensitivity unbalanced: 100mV 88dB 1m / balanced 200mV 88dB 1m
• Max output level: 106dB/100Hz
• Max input: 24dBu balanced
• High pass filter: Fixed 80 Hz (24dB)
• Dimensions
• Dimensions HxWxD: 12.6 x 8.3 x 11.6” / 321 x 213 x 297 mm
• Weight: 20.3 lbs / 9.2 kg
• Colors
• Finish: Black satin
