Mark Levinson №5302 Bridgeable Dual-Mono Stereo Amplifier – Mark Levinson

The Mark Levinson № 5302 blends the finest materials, technology and artisanship for exceptional beauty and performance. A powerful fully-discrete, direct-coupled, dual-monaural, class AB amplifier that is bridgeable for monaural operation, the № 5302 delivers all of the performance and quality expected from Mark Levinson with exceptional value and flexibility.

Evolution
The № 5302 amplifier was created to deliver all the performance and quality expected from Mark Levinson with exceptional value and accessibility to a broader range of customer.

Amplification

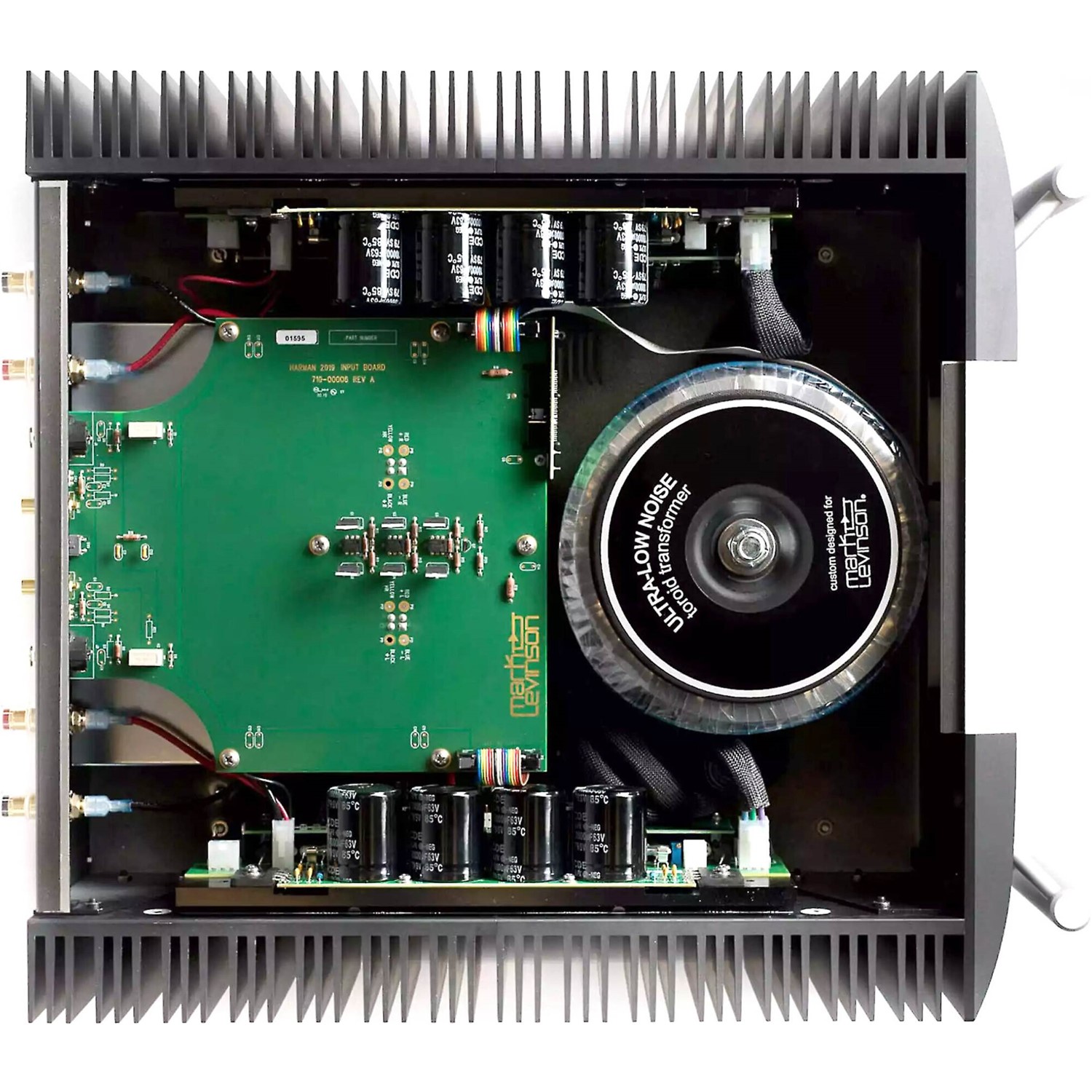

The fully discrete, direct-coupled, class AB amplifier channels get their power from an oversized 1100 VA toroidal transformer with individual secondary windings for the left and right channels. The voltage gain stage employs a topology directly descended from the acclaimed № 534 amplifier, which is mated to an output stage comprising two high-speed driver transistors operating in class A and six 260V, 15A output transistors. Two Thermal-Trak devices in a unique configuration guarantee stable output bias regardless of load or temperature. Four 10,000-microfarad capacitors per channel, located directly on the output stage circuit board, easily provide enough current for a conservative 135W/channel at 8 Ohms, 270W/channel into 4 Ohms, and 55W bridged in Mono and stable operation into 2 Ohms.

Control
System integration and communication ports include Ethernet, USB, RS-232, IR input, and 12V trigger input and output. Finally, an internal webpage allows setup, import and export of configurations, and software updates using a PC and standard web browser.

Industrial Design

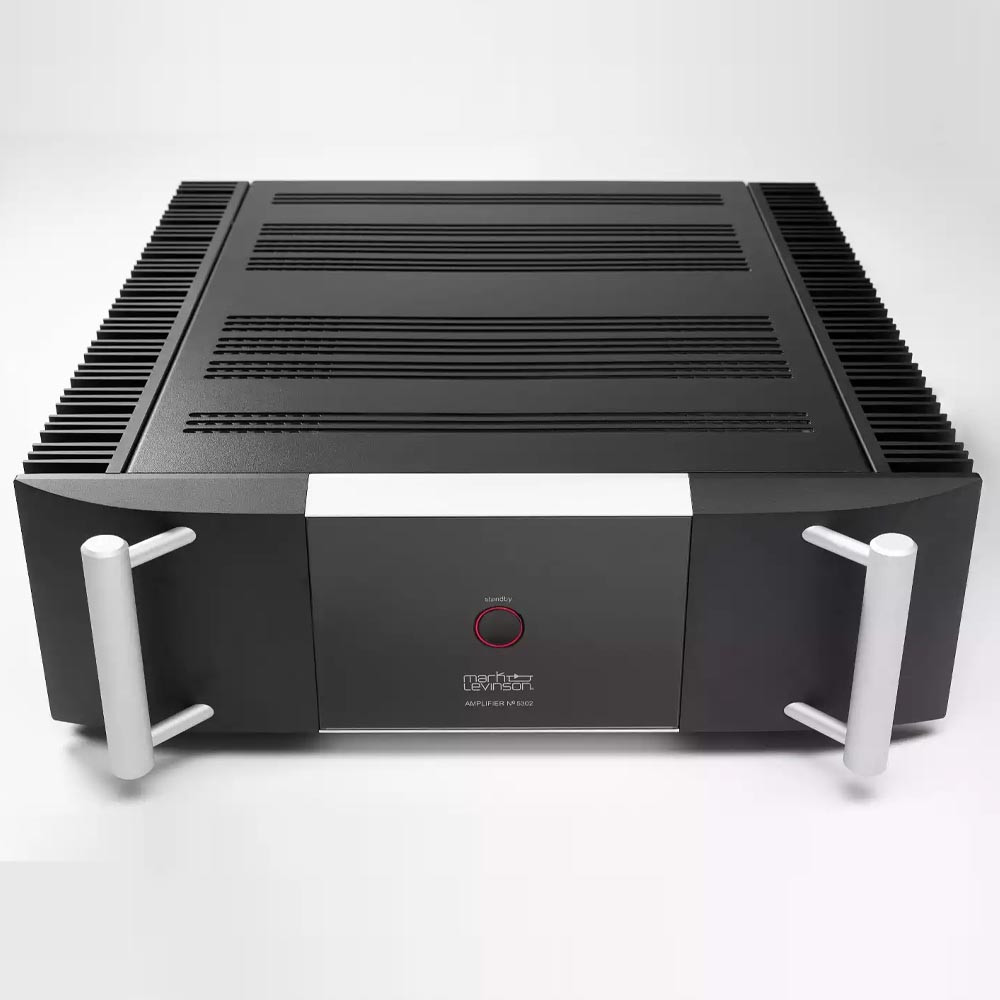

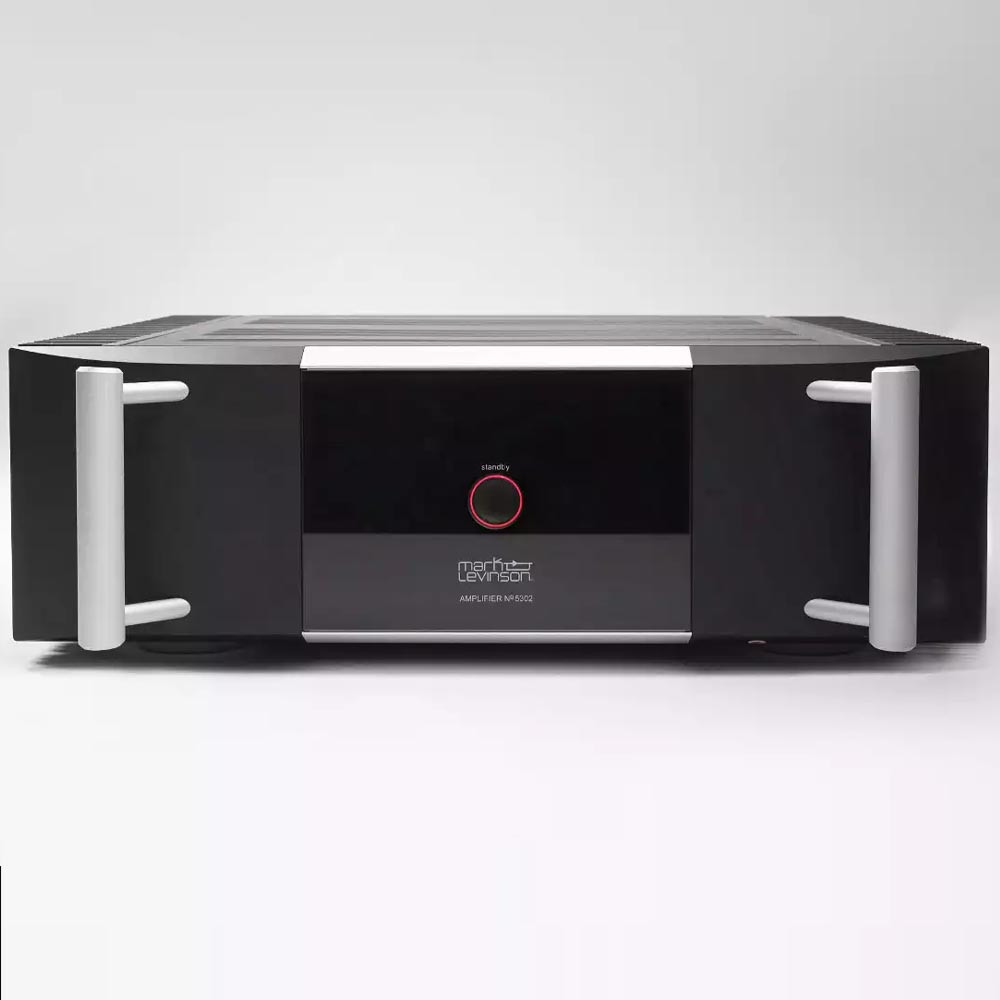

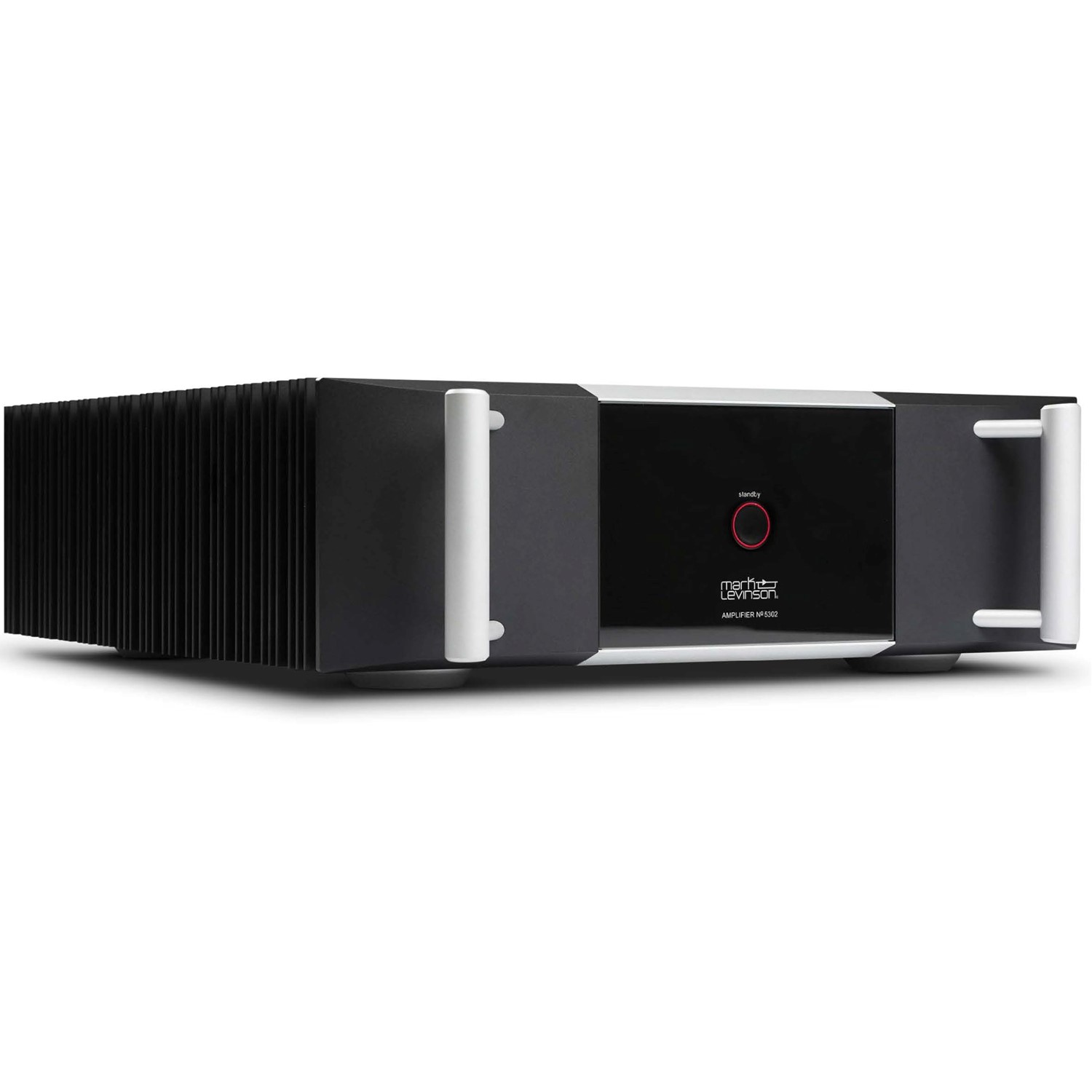

Lavish finishes, and bold geometry are hallmark attributes of Mark Levinson designs. The one-inch-thick, bead-blasted, black-anodized, solid aluminum front panels are machined and contoured to flow seamlessly into the sleek glass display, which itself is recessed into a bead-blasted, clear-anodized aluminum bezel. A light ring accentuates the large aluminum standby button, while subtly communicating power states. Cosmetic grade solid aluminum handles and forty-two tri-grouped heat sync fins per side, express robust beauty and function. With meticulous details, including, debossed top cover vents, screen-printed logo and legends behind the glass panel, and custom machined aluminum feet, the № 5302 exudes elegance and style. The № 5302 is proudly designed, engineered and precision crafted in the USA.

№5302 Highlights

• Class AB channels: 2 x 135W/channel into 8Ω
• 2 x 270W into 4Ω
• Easily Bridgeable for Mono 550W at 4Ω
• Cosmetic grade external heatsinks
• IP, RS-232, control
• 12V trigger in/out
• Made in the USA
• What’s in the box?
• Power Cord
• Owner’s Manual

Specs:

• Stereo Mode
• Output Power: 135W/channel, 8Ω load, 20Hz to 20kHz, at <0.35% THD, both channels driven, 270W/channel, 4Ω load, 20Hz to 20kHz
• Gain: 25.8dB
• Input sensitivity: 145mV RMS input for 2.83V RMS output
• Total harmonic distortion: <0.04% at 1kHz, 135W, 8Ω load, <0.35% at 20kHz, 135W, 8Ω load
• Signal-to-noise ratio: >102dB, 20Hz to 20kHz, wideband, unweighted, referred to 135W/8Ω
• BRIDGED MONAURAL MODE
• Output Power: 275W, 8Ω load, 20Hz to 20kHz, at <0.3% THD 550W, 4Ω load, 20Hz to 20kHz
• Gain: 31.8dB
• Input sensitivity: 73mV RMS input for 2.83V RMS output
• Total harmonic distortion: <0.04% at 1kHz, 275W, 8Ω load, <0.3% at 20kHz, 275W, 8Ω load
• Signal-to-noise ratio: >105dB, 20Hz to 20kHz, wideband, unweighted, referred to 275W/8Ω
• GENERAL
• Frequency response: 20Hz to 20kHz, +0/–0.35dB,
• Input impedance: Balanced (XLR): 100kΩ, Unbalanced/single-ended (RCA): 50kΩ

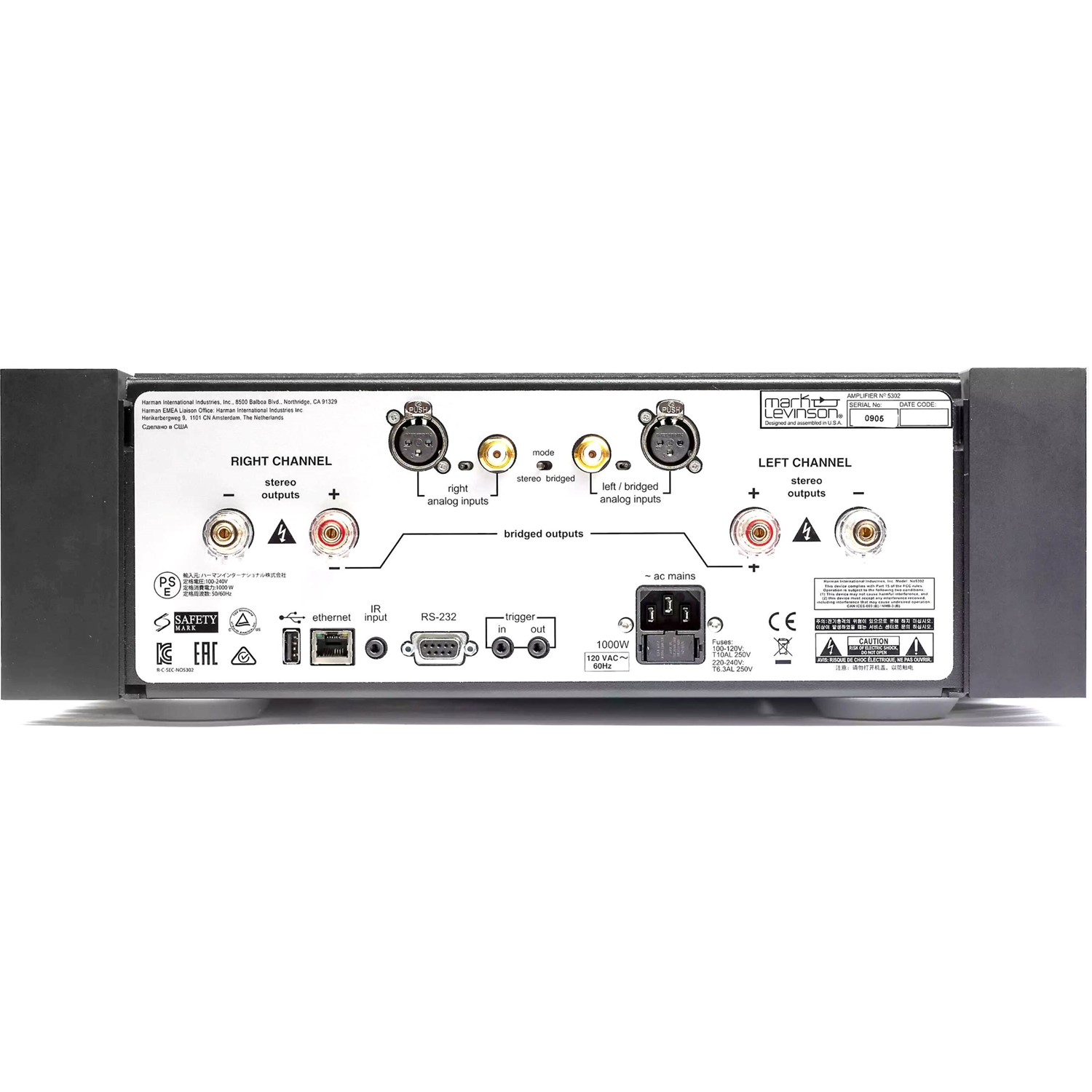

• Input connectors: 1 pair balanced line-level inputs (XLR), 1 pair single-ended line-level inputs (RCA)
• Output connectors: 2 pairs high current multi-way binding posts
• Control connectors
• 1 RS-232 port (DB-9)
• 1 Ethernet port (RJ-45)
• 1 USB port for firmware updates (USB-A)
• 1 baseband IR input (⅛”/3.5mm phone jack)
• 1 programmable 12V DC trigger output, 100mA maximum (⅛”/3.5mm phone jack)
• 1 programmable 12V DC trigger input, (⅛”/3.5mm phone jack)
• Power consumption
• Maximum: 1000W
• On, idle (stereo mode): 90W
• On, idle (bridged mode): 70W
• Normal standby: 35W
• Power Save standby: 2W
• Green standby: <0.4W
• Dimensions/Weight Unit only:
• Height: 5.72″/145mm
• Height without feet: 5.25″/133mm
• Width: 17.25″/438mm
• Depth, enclosure only: 18.00″/457mm
• Depth, with handles and speaker
• terminals: 20.75″/527mm
• Weight: 70 lbs/31.7kg
• With packaging
• Height: 13.63″/346mm
• Width: 24.25″/616mm
• Depth: 29.00″/737mm
• Weight: 85 lbs/38.5kg
