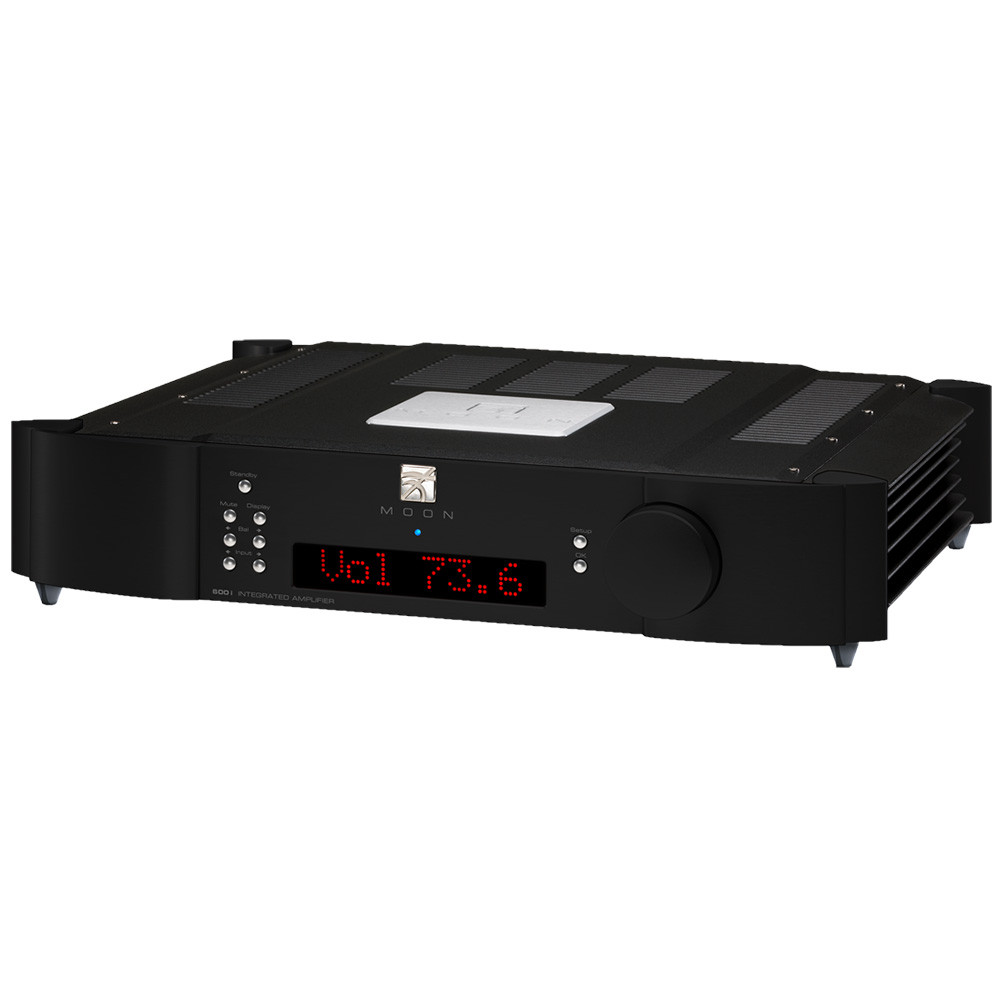

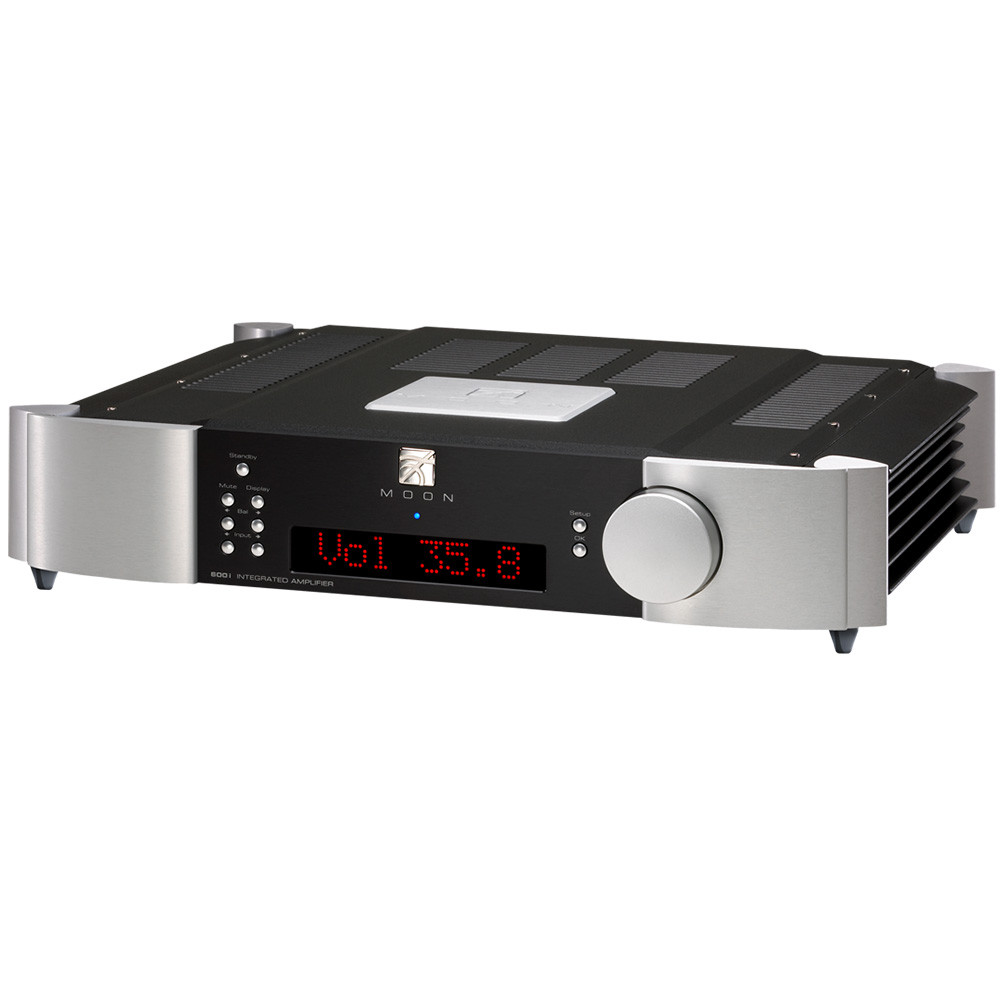

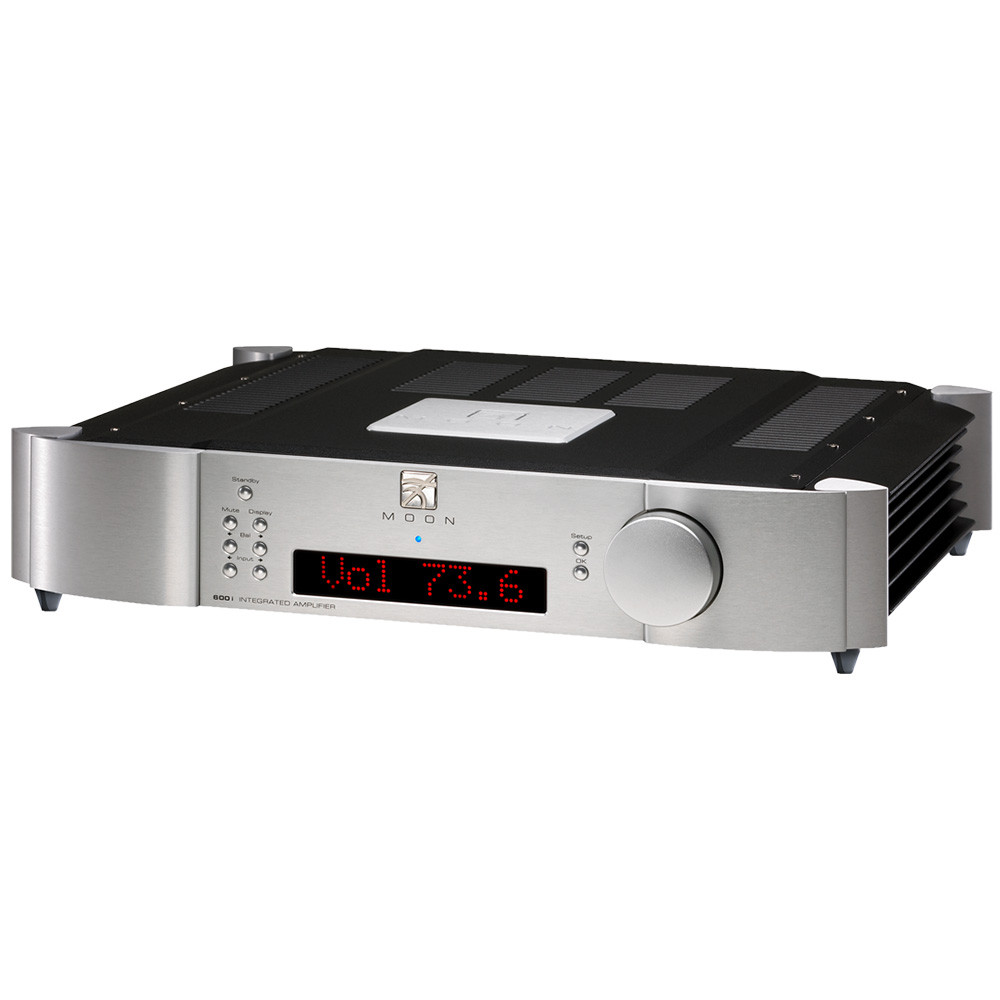

MOON 600i V2 Integrated Amplifier – MOON

Design features:

• Our “no overall feedback” amplifier circuit design for more accurate musical reproduction

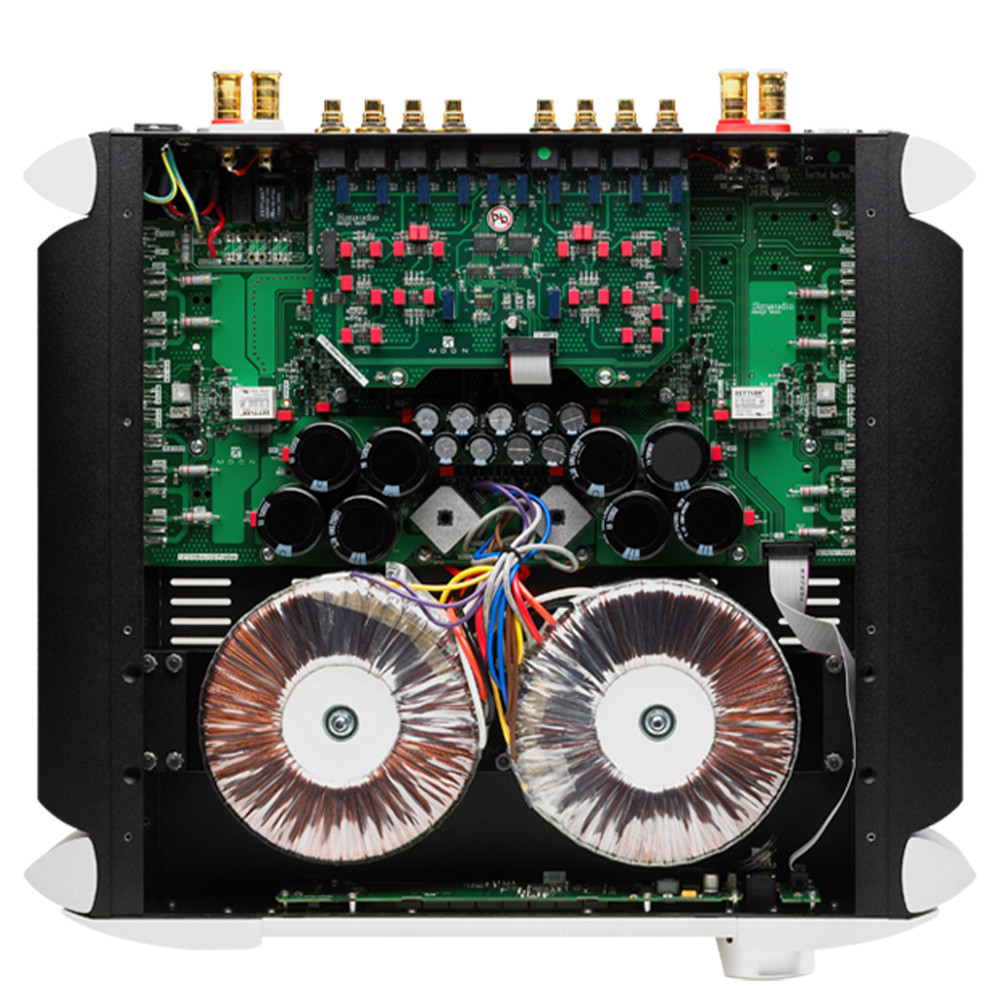

• An oversized dual-mono power supply.
• “Class A” power output to 5 watts for greater efficiency.
• Gain offset adjustment of ±10dB for each line input.
• Each line input is fully configurable to be “home theater ready”, whereby the 600i’s volume control is bypassed.

Specifications:

• Output Power at 8Ω: 125 W per channel
• Output Power at 4Ω” 250 W per channel
• Input Sensitivity: 490mV – 6.0V RMS
• Input Impedance: 23,700Ω
• Inputs (RCA / XLR): 4 pairs / 1 pair
• Gain: 37dB
• Frequency response (full range): 10Hz – 100kHz +0/-0.1dB
• Crosstalk @ 1kHz: -100dB
• THD (20Hz – 20kHz @ 1 W): 0.015%
• THD (20Hz – 20kHz @ 130 W): 0.04%
• Intermodulation distortion: 0.02%
• Shipping weight: 48 lb / 21 kg
• Dimensions (width x height x depth): 18.75 x 4.0 x 18.1 in, 47,6 x 10,2 x 46,0 cm

In The Box:

• AC power cable
• FRM-3 remote control with three ‘AAA’ batteries)
• SimLink™ cable with 1/8” mini plug terminations on each end
• Owner’s manual
• Warranty and product registration information (USA and Canada only)
