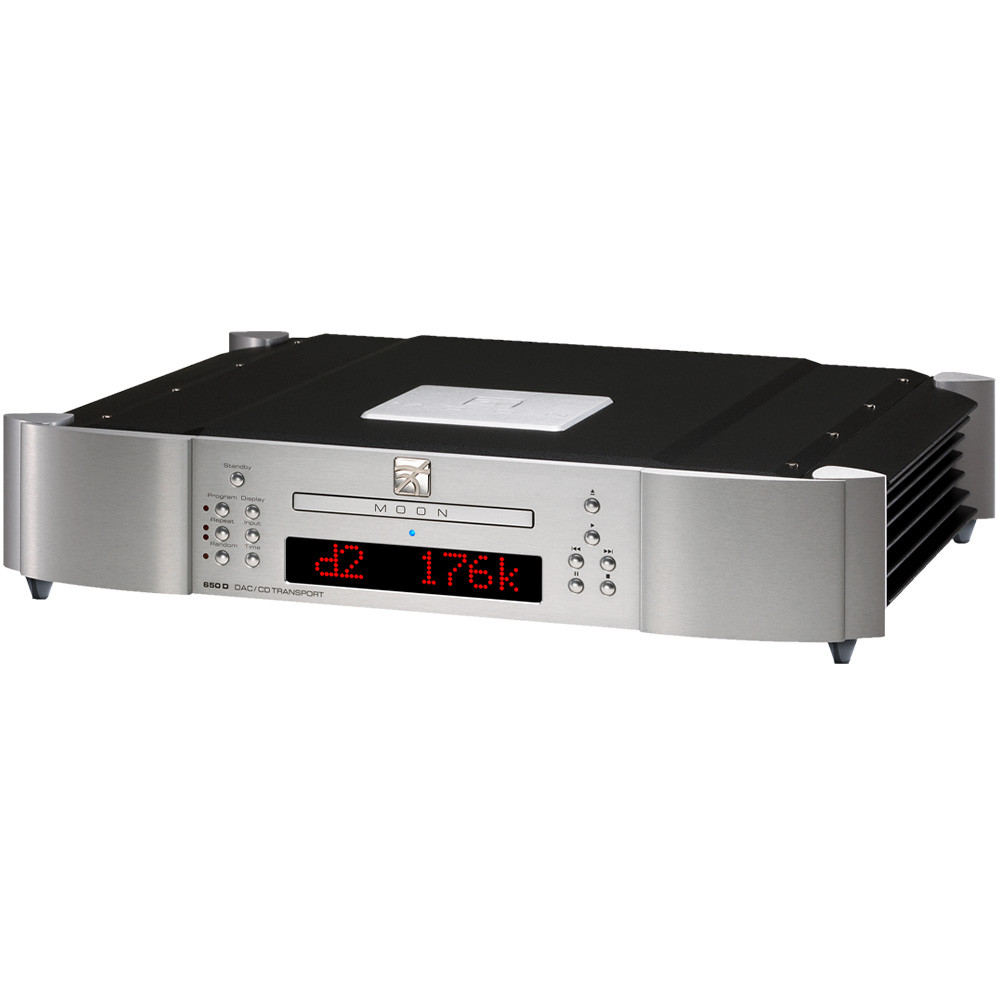

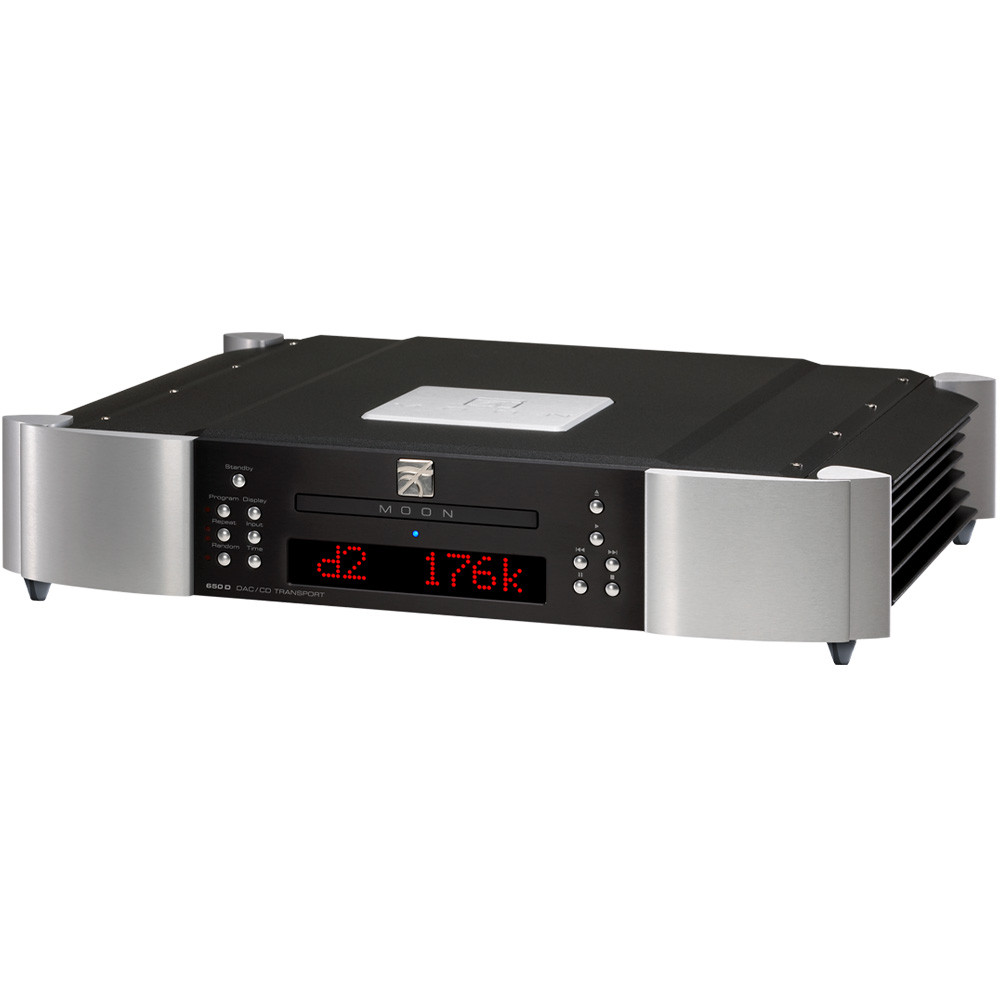

MOON 650D DAC and CD Transport – MOON

Like two products in one: CD Player + 32-bit DAC
Proprietary CD drive system mounted on our MQuattro gel-based 4-point floating suspension for vibration damping. True 32-bit asynchronous Digital-to-Analog converter.

MQA pass-through
The MOON 650D features “MQA pass-through” capability. The MQA encoded data on the disc will be outputted on the digital output such that an MQA certified DAC will decode it and give you the full performance that MQA offers.

Design features:

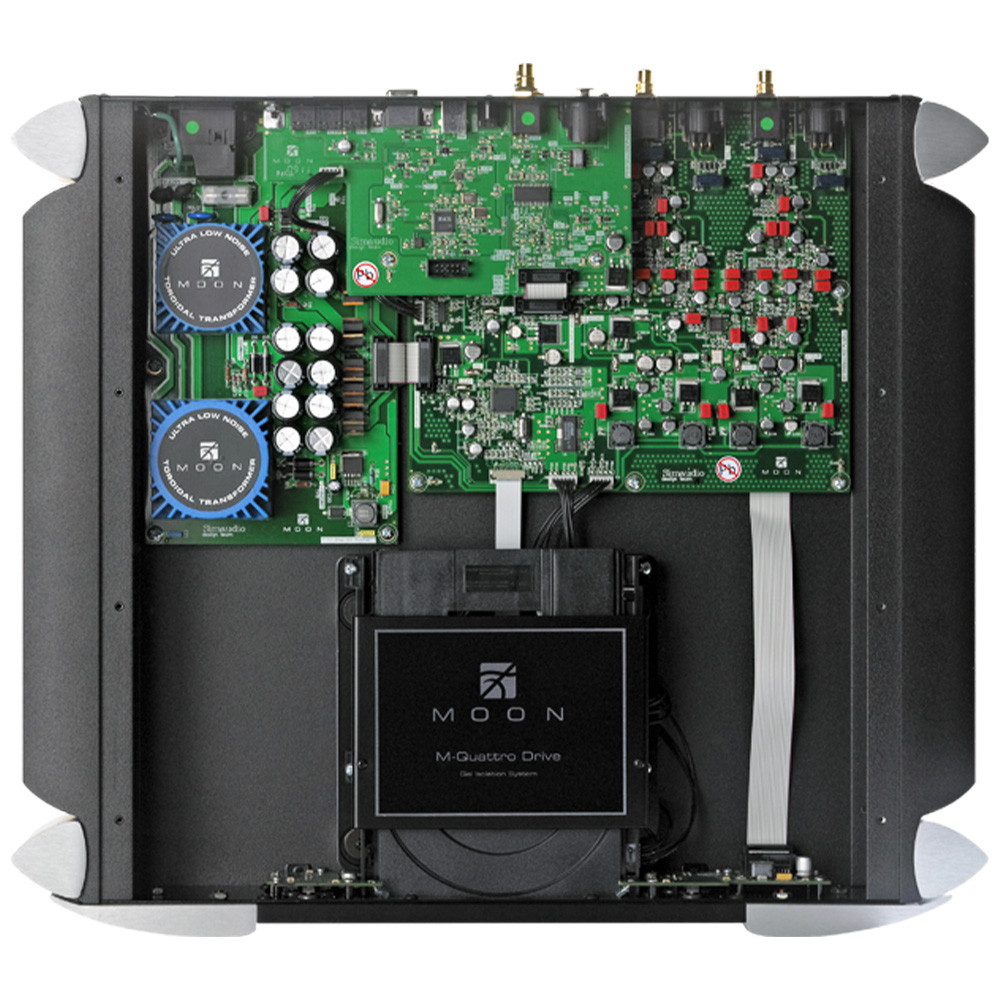

• Proprietary CD drive system mounted on our M-Quattro gel-based 4-point floating suspension.
• Separate digital and analog power supplies, each with their own toroidal transformer.
• Power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 18 stages in all.
• Four (4) digital inputs (AES/EBU, S/PDIF, TosLink and USB) allowing for a connection to virtually any digital source.
• Two (2) digital outputs – AES/EBU and S/PDIF.
• Fully compatible with 820S external power supply.

Specifications:

• Frequency response (full range): 2Hz – 100kHz +0/-3dB
• THD @ 1kHz, 0dBFS (A-weighted): 0.0001%
• Intermodulation distortion: 0.0001%
• Dynamic Range: 120dB
• Signal-to-noise Ratio: 120dB @ full output
• Channel Separation: 116dB
• Intrinsic Jitter: 1 picosecond RMS
• Analog Output @ 0dBFS: 2.0 Volts
• Analog output impedance: 100Ω
• Bit-depth range: 16 – 24 bits
• Sampling frequency rates: 44.1 – 192kHz
• Shipping weight: 35 lb / 16 kg
• Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in, 47.6 x 10.2 x 42.7 cm

In The Box:

• AC power cable
• FRM-3’ remote control with three ‘AAA’ batteries
• SimLink™ cable with 1/8” mini plug terminations on each end
• Owner’s manual
• Warranty and product registration information (USA and Canada only)
