MOON 680D Streaming DAC – MOON

MiND 2 streaming module
MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music. The 680D is designed to deliver an outstanding high-resolution streaming experience through music services such as Tidal Masters, Qobuz Sublime+ and Deezer Hi-Fi. The DAC architecture supports PCM (up to 32-bit/384kHz), DSD (up to DSD256) and is MQA certified.

Roon Ready & full MQA decoding
The 680D is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats via all inputs.

A Team Player
The 680D is the prodigal little brother of the 780D, and it is the best buddy of the 600i v2. Together, they form a great pair to recreate the best sound for your favourite music.
Design features:

• AirPlay 2 compatible
• Roon Ready device
• DSD and MQA decoding from all digital inputs
• Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
• Multi-room synchronized playback
• 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®

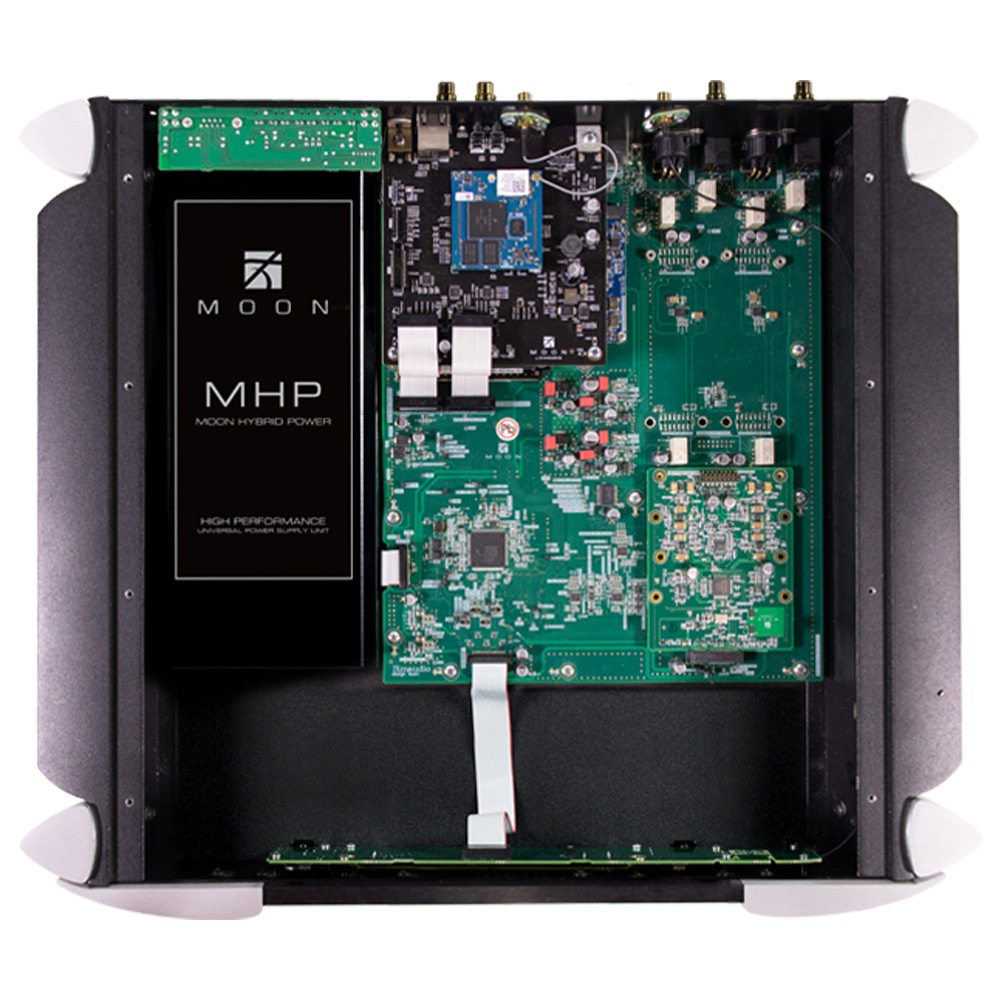

• Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
• 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
• On-board programmable software for customization of the end-user interface

Specifications:

• Frequency response (full range): 2Hz – 100kHz +0/-3dB
• THD @ 1kHz, 0dBFS (A-weighted): 0.0005 %
• Intermodulation distortion: 0.0003 %
• Dynamic Range: 123 dB
• Signal-to-noise Ratio: 123 dB @ full output
• Channel Separation: 120 dB
• Intrinsic Jitter: 1 pico seconds RMS
• Analog Output @ 0dBFS: 2.0 V
• Analog output impedance: 100 Ω
• PCM Bit-depth range: 16 – 32 bits
• PCM sampling frequency rates: 44.1 – 384 kHz
• DSD sample rates: DSD64, DSD128 & DSD256
• Shipping weight: 38 lb / 18 kg
• Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in, 47.6 x 10.2 x 42.7 cm

In The Box:

• AC power cable
• FRM-3 remote control with three ‘AAA’ batteries
• ‘SimLink™’ cable with 1/8” mini plug terminations on each end
• 2x Wi-Fi antenna
• Owner’s manual
• Warranty and product registration information (USA and Canada only)
