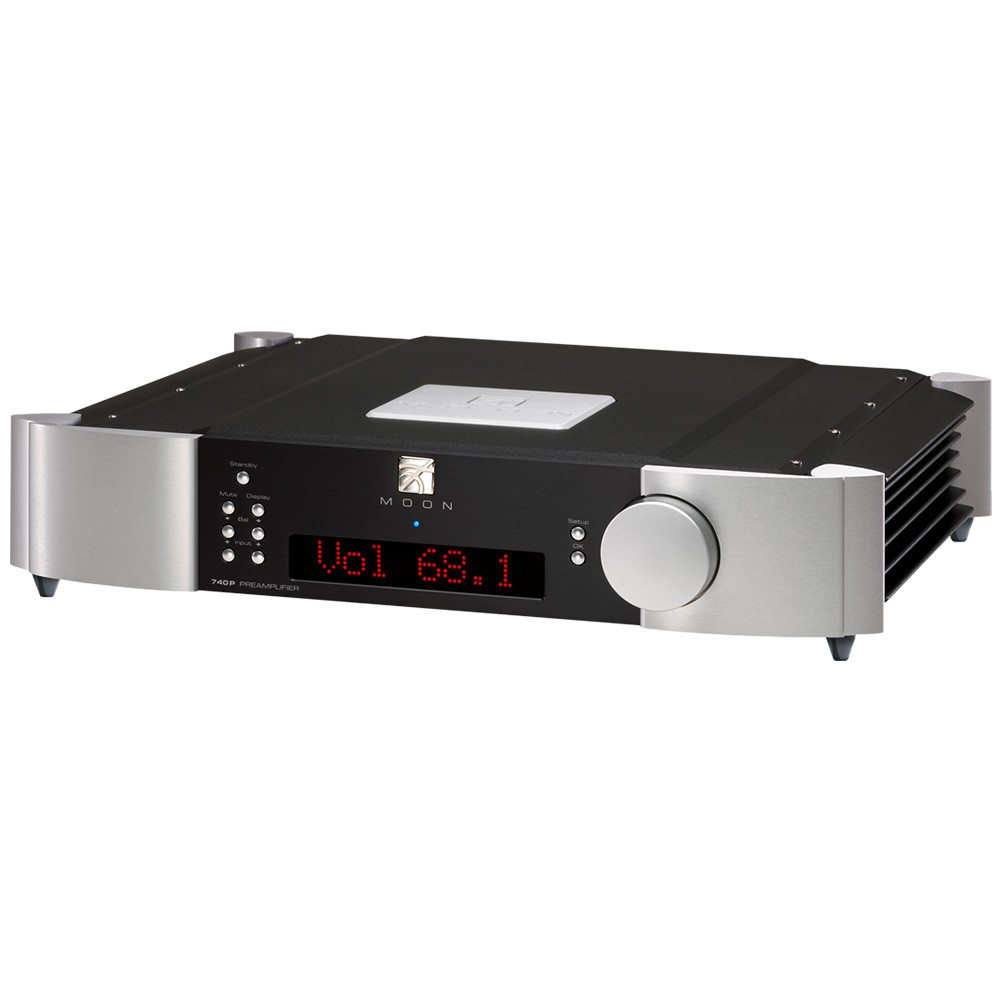

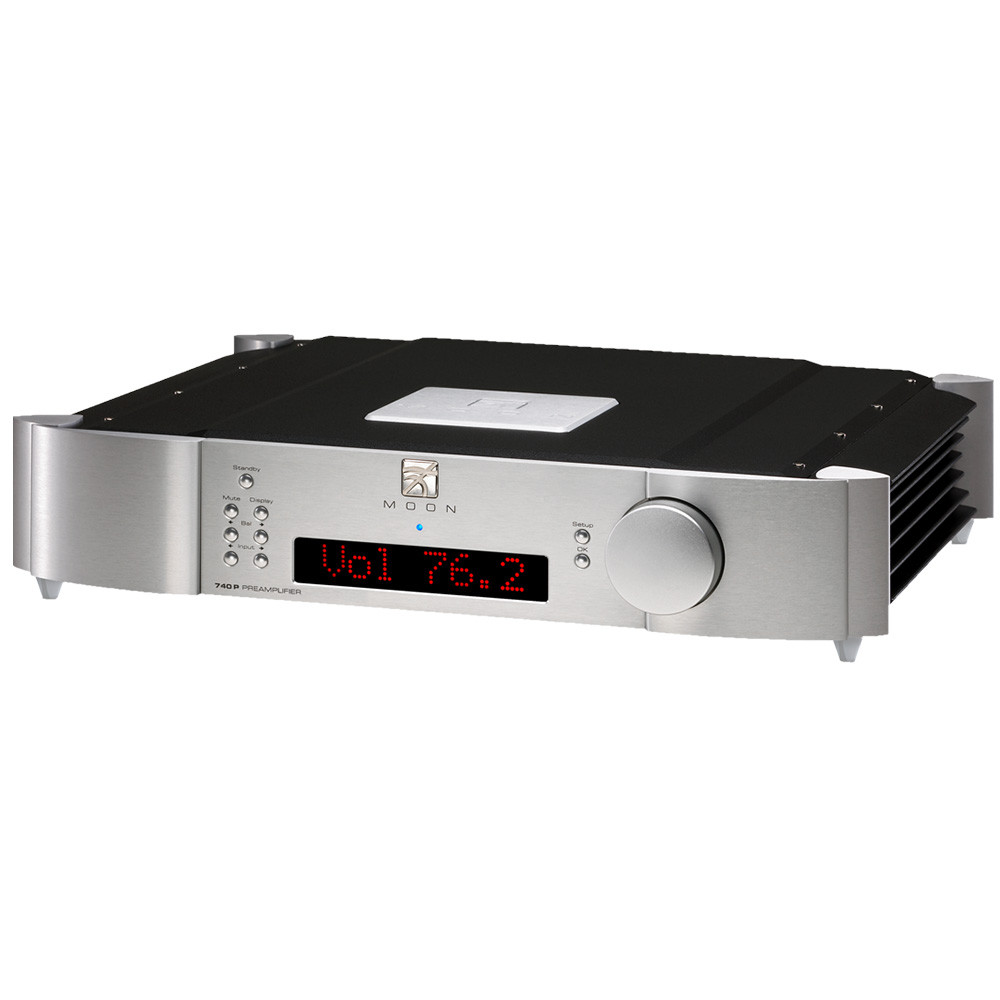

MOON 740P Preamplifier – MOON

Design features:

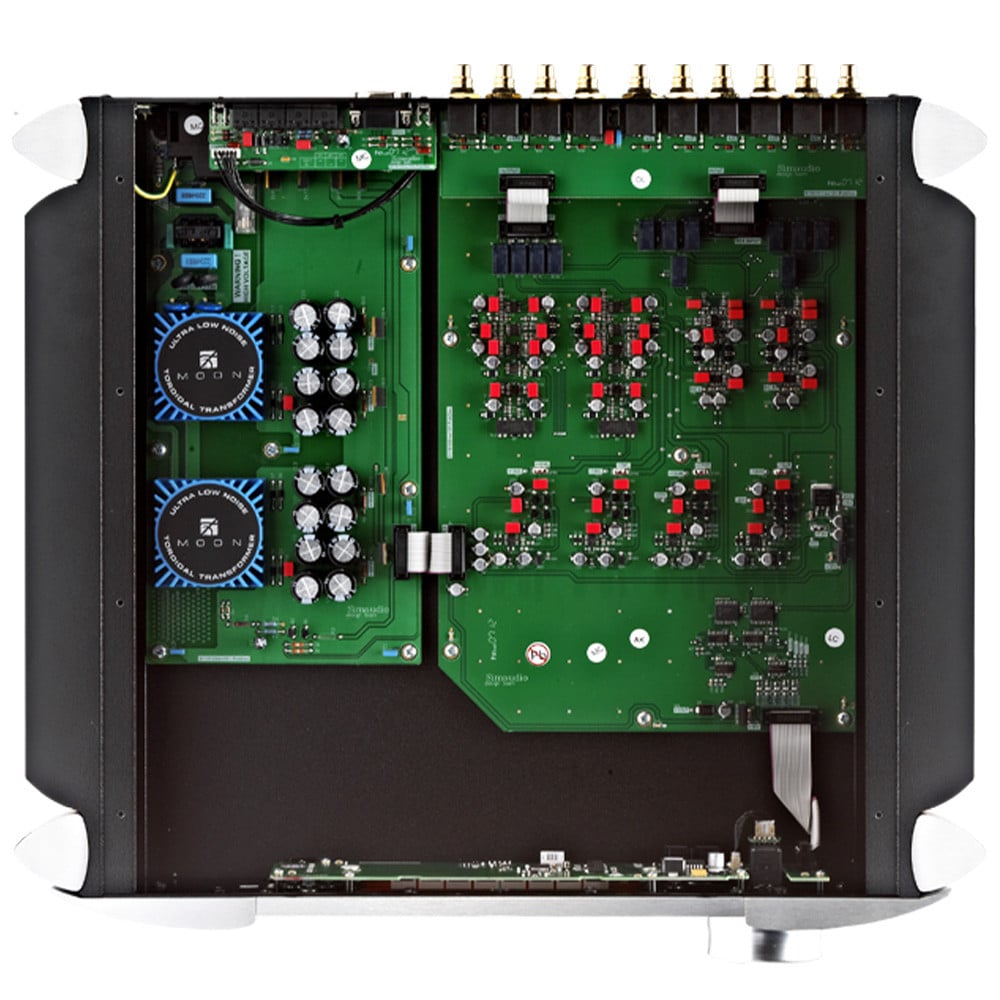

• Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.
• 4 stages of our M-LoVo (MOON Low Voltage DC regulation); a highly sophisticated circuit virtually free of noise, yielding exceptionally fast, precise, and very stable DC voltage.
• Gain offset adjustment of ±10dB for each line input.

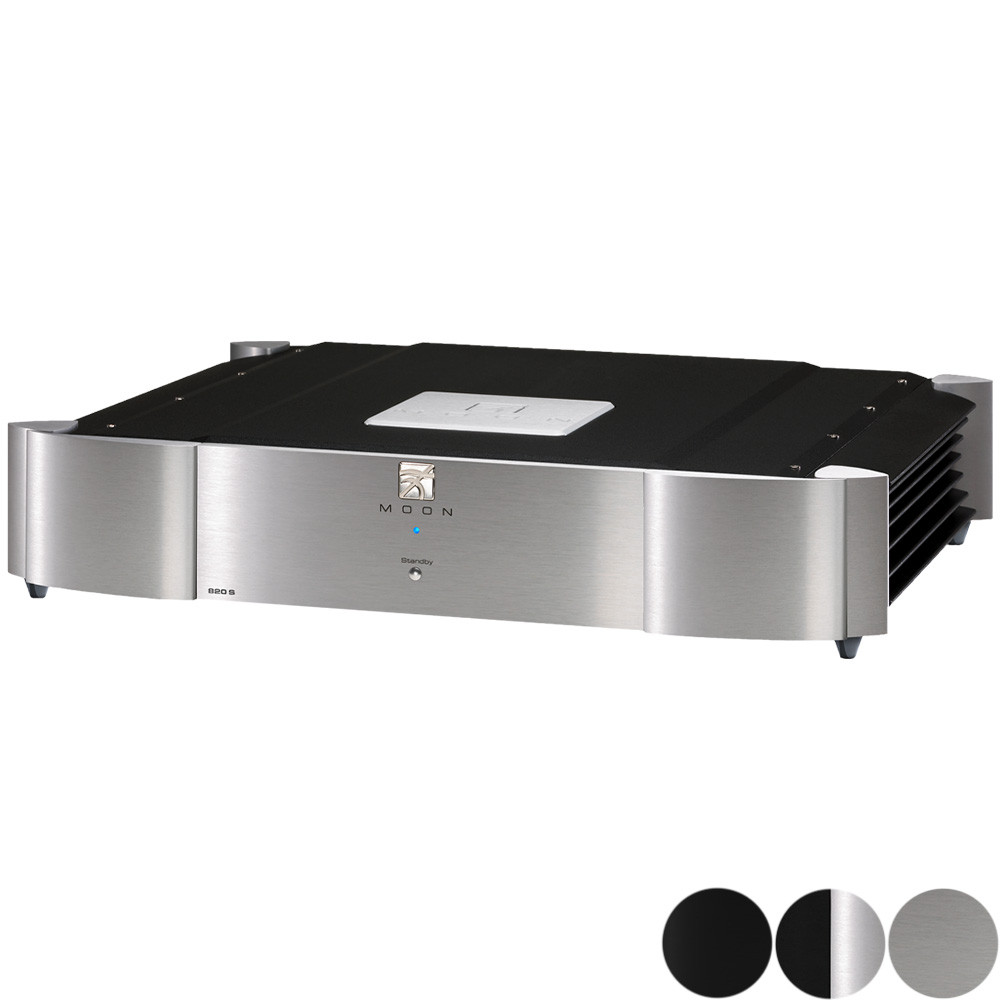

• Fully compatible with 820S external power supply.
• Each line input is fully configurable to be “home theater ready”, whereby the 740P’s volume control is bypassed.

Specifications:

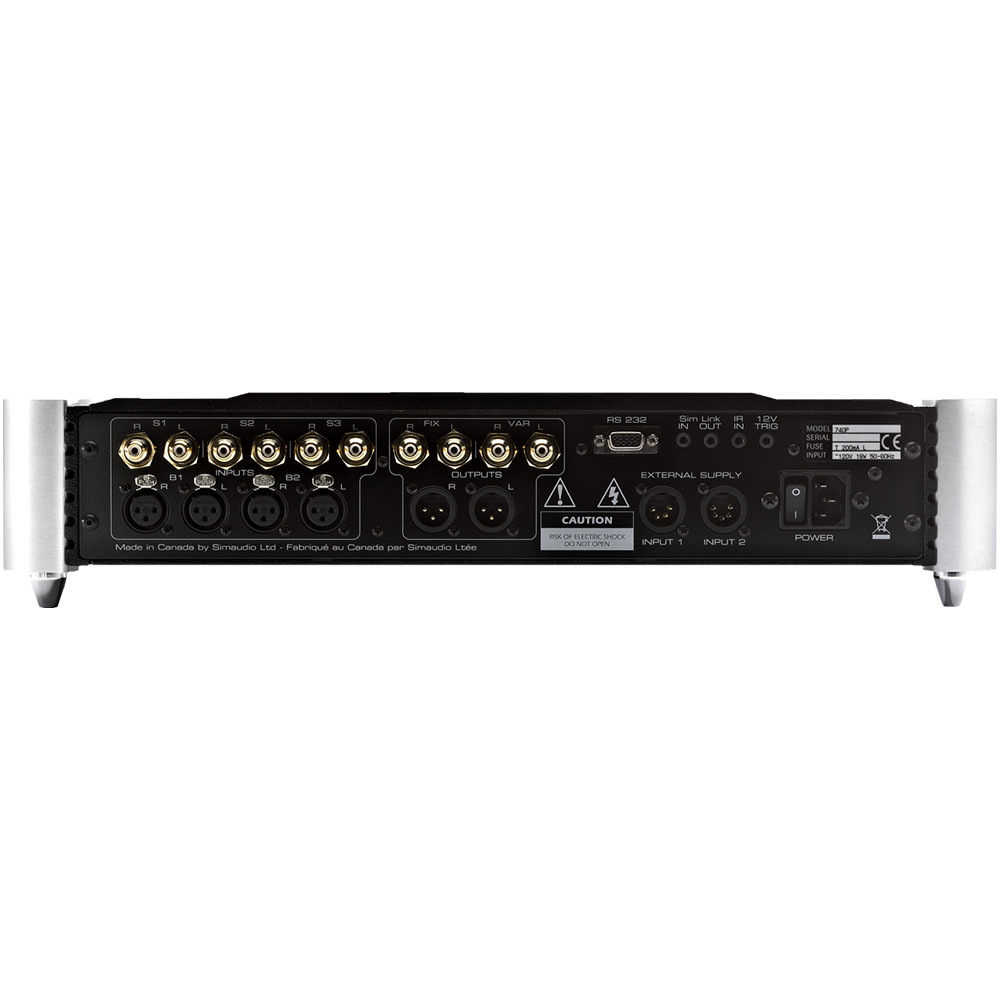

• Number of inputs – XLR / RCA: 2 pairs / 3 pairs
• Input Sensitivity: 200mV – 4.0V RMS
• Input Impedance: 22,000Ω
• Gain: 9dB
• Number of Output – XLR / RCA: 1 pair / 2 pairs (fixed + variable)
• Signal-to-noise Ratio (20Hz-20kHz): 120dB @ full output
• Frequency response (full range): 5Hz – 100kHz ±0.1dB
• Crosstalk @ 1kHz: -116dB
• Output impedance: 50Ω
• THD (20Hz – 20kHz): 0.001%
• Intermodulation distortion: 0.0003%
• Shipping weight: 35 lb / 16 kg
• Dimensions (width x height x depth): 18.75 x 4.0 x 16.5 in, 47.6 x 10.2 x 41.9 cm

In The Box:

• AC power cable 9 FRM-3 remote control with three ‘AAA’ batteries
• SimLink™ cable with 1/8” mini plug terminations on each end
• Owner’s manual
• Warranty and product registration information (USA and Canada only)
