Parasound NewClassic 200 Integrated Amplifier & DAC – Parasound

The Parasound New Classic 200 Pre and Integrated represent a new generation of affordable high-performance audio products from Parasound. At the heart of the 200 is an all analog signal path which includes analog bass management with high and low pass outputs. The 200 has connections for just about any source including an MM/MC phono input, home theater bypass, USB, Coax, optical as well as a front panel Aux input with an automatic 12dB gain bump. The built in DAC features a Burr-Brown IC and the circuitry is pulled directly out of the award-winning Halo P 5. Convenience and Ci features include a turn-on volume preset, a favorite volume setting, 2-way RS232 serial port, rear panel IR input and a 12V output trigger. The front panel LCD display allows the input names to be changed and provides for easy control. The backlit remote provides adjustment of the bass, treble, subwoofer trim, subwoofer on/off and balance.

Features:

• 110 Watts @ 8 or 4 Ohms
• Class D amplification by Pascal
• Burr-Brown 192kHz-24 bit DAC from the Halo P 5
• USB, Optical and Coax digital audio inputs
• 4 Analog audio inputs
• Phono input for MM or MC cartridges
• Pure analog signal path from input to output
• Analog bass management w/ variable 20-140Hz high pass crossover
• Subwoofer On/Off & level by remote control
• 80Hz low pass subwoofer output
• Full range mono output can be used for subwoofer or mono listening area
• Variable and fixed stereo preamp outputs
• Bypass input for surround sound or music streamer integration
• Default turn on volume memory
• Favorite volume memory with remote control button
• Input level matching (source volume offset)
• Bass, treble and balance adjustments by remote control
• Front panel LCD display with dimming
• 2-way RS232 w/ exact volume control & feedback
• Rename inputs to match connected source
• Front panel Aux input with12dB of additional gain
• Dedicated headphone amplifier

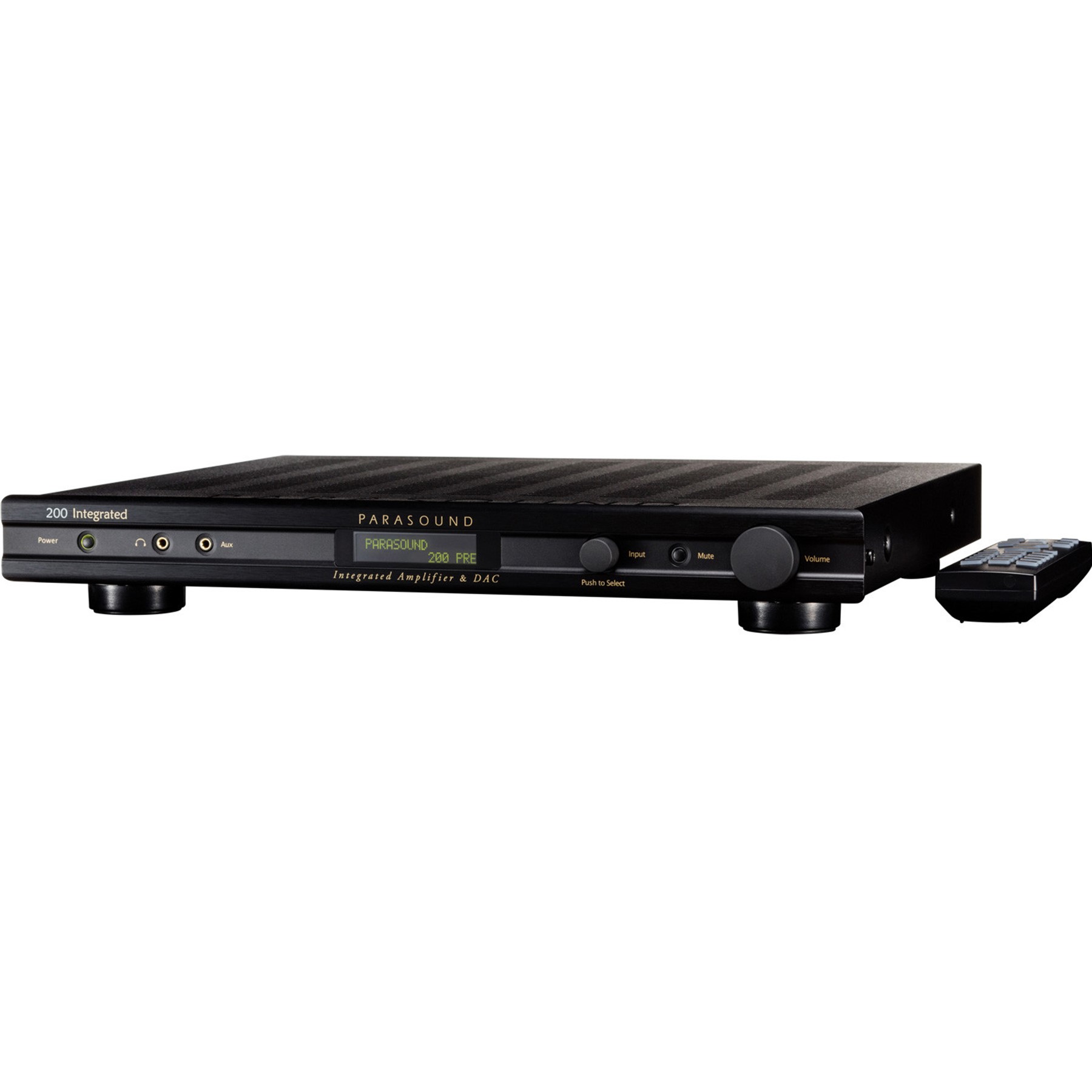

• Back-lit remote control with discrete buttons
• 12V trigger output
• Rear panel IR input
• 0.5w standby power consumption meets Energy Star & EU specs

Specs

• Power Output – Both channels driven (0.05% THD, 20 Hz – 20 kHz): 110 watts x 2 @ 4 Ω or 8 Ω (RMS)
• Power Output – Both channels driven (1% THD, 20 Hz – 20 kHz): 125 watts x 2 @ 4 Ω or 8 Ω (RMS)
• Frequency Response: 20 Hz – 20 kHz, +0 / -0.05 dB, 10 Hz – 80 kHz, +0 / -3 dB
• Total Harmonic Distortion (20 Hz – 20 kHz): < 0.05 %, (110 watts, 8 Ω)
• Interchannel Crosstalk:: -75 dB at 20 kHz, -85dB at 1 kHz
• Preamp Output: 250mv = 1V output , Total gain = 12 dB (volume set to 100), Unity gain = Volume set to 76, Maximum output = 3.5V
• Phono Stage Gain / Input Impedance: MM: 40 dB / 47 k Ω , MC: 50 dB / 100 Ω
• Line Level Input Impedance: 24k Ohms
• Preamp Output Impedance: 470 Ohms
• S/N Ratio – Line Inputs: > 100 dB, input shorted, IHF A-weighted
• S/N Ratio – Digital Inputs: > 110 dB, input shorted, IHF A-weighted
• DAC IC: Burr-Brown PCM1798
• DAC Maximum Sampling Rates (PCM only):
• USB: 96kHz – 24 bit
• Optical: 192kHz – 24 bit
• Coax: 192kHz – 24 bit
• DC Trigger Output: 12 Vdc, 50mA
• AC Power Requirement</em
• Standby: 0.5 watts
• Idling: 15 watts (no music playing)
• Typical: 50 watts (music playing)
• Maximum: 300 watts
• 100-250 VAC 50/60 Hz (automatic)
• Dimensions:
• Width: 17.25″ (438 mm)
• Depth: 14.75″ (375 mm)
• Depth: 16.75″ (425 mm) with cables connected
• Height, with feet: 2.5″ (63.5 mm)
• Height, without feet: 1.75″ (44.5 mm), 1U
• Rack mounting requires RMK-11(sold separately)
• Weight:
• Net: 11.5 lbs (5.2 kg)
• Shipping: 17.5 lbs (7.9 kg)
