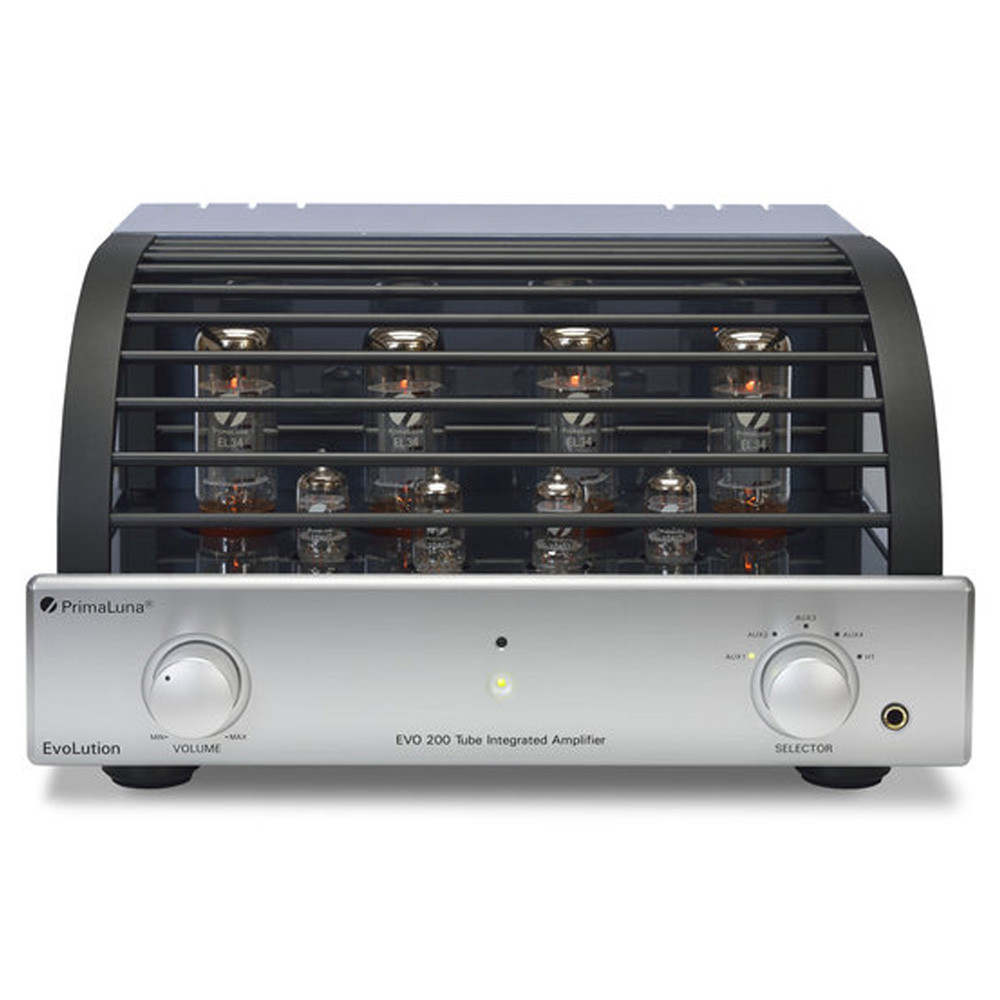

PrimaLuna EVO 200 Tube Integrated Amplifier – PrimaLuna

CUSTOM TOROIDAL POWER TRANSFORMER

All PrimaLuna products use massive, potted toroidal transformers. PrimaLuna transformers are enclosed in a metal housing and then potted in a non-microphonic resin to further reduce noise and to protect the windings from moisture and deterioration forever.

CUSTOM SUPER-WIDE-BANDWIDTH OUTPUT TRANSFORMERS

“The flat tops and bottoms of these squarewaves correlate with the amplifier’s extended low-frequency response; PrimaLuna’s output transformers are of excellent quality.” -John Atkinson, Stereophile Magazine.

SUPERQUIET LINE INPUTS

When an input is selected, that relay closes giving you the best connection possible. All the other relays are left open, so noise and signals from other sources can’t leak in. The signal path is now almost non-existent, so there are no wires to pick up noise.

ADAPTIVE AUTOBIAS

PrimaLuna’s Adaptive AutoBias is a true, smart technology employing an array of sensors to monitor tubes and make adjustments seamlessly in real time. More important, it is the ONLY circuit of its kind that is truly “adaptive” by addressing “tube pinch off” at higher volumes, therefore reducing distortion by over 50% and greatly extending tube life. Adaptive AutoBias is completely passive and NOT in the signal path. The result is low to no maintenance, long tube life, and the lowest possible distortion for amazing sound.

Adaptive AutoBias also provides unparalleled flexibility by allowing use of almost any tube on the market today. It even has a fine-tuning switch for EL-34 and KT88/KT120/KT150 tube types.

POINT TO POINT WIRING

PrimaLuna employs Point to Point Wiring on all products. The entire signal path, including resistors and capacitors, is painstakingly hand wired with heavy-gauge cable by craftsman.

BAD TUBE INDICATOR

If a tube fails, Adaptive AutoBias will instantly put the amplifier into protection mode so no parts can get damaged. A red LED will light up in front of the tube that needs replacing. Simply plug in another tube, and listen.

SMARTWATTS – EXTENDED TUBE LIFE

PrimaLuna runs their output tubes at a minimum dissipation without going into crossover distortion.

Features:

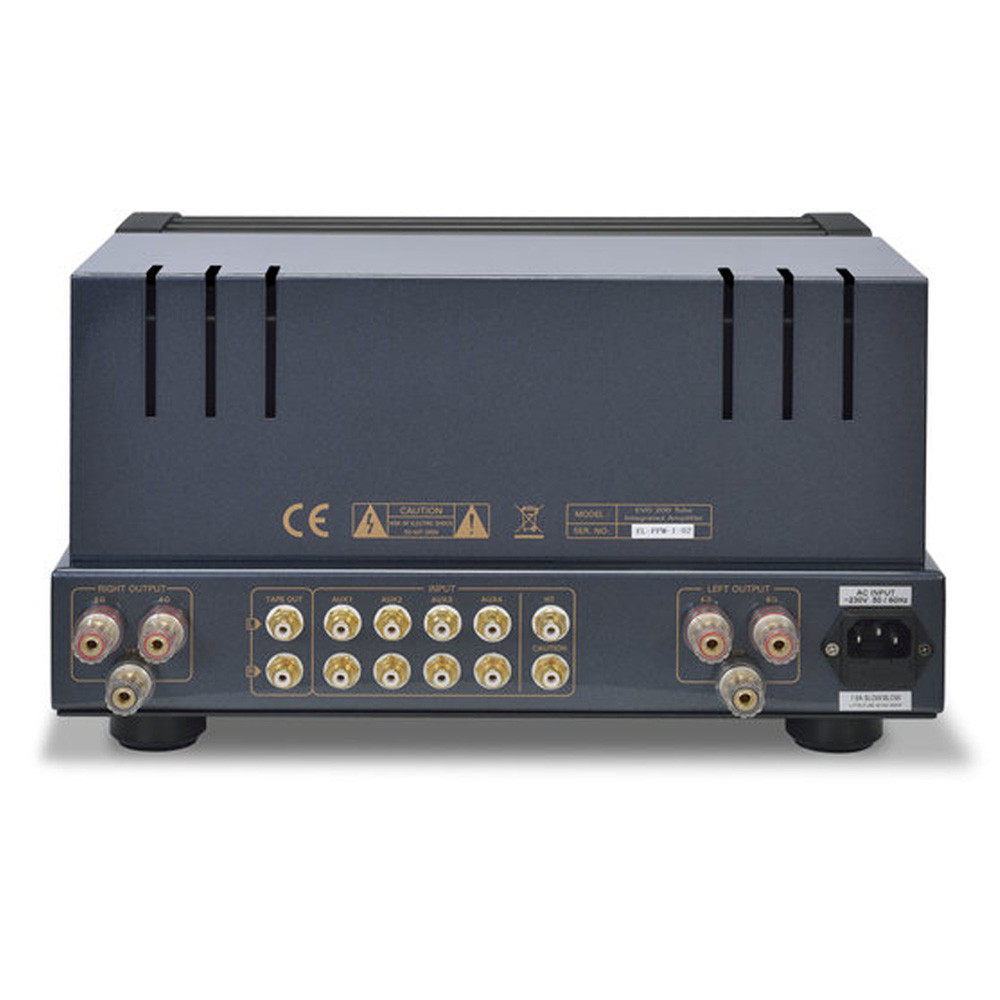

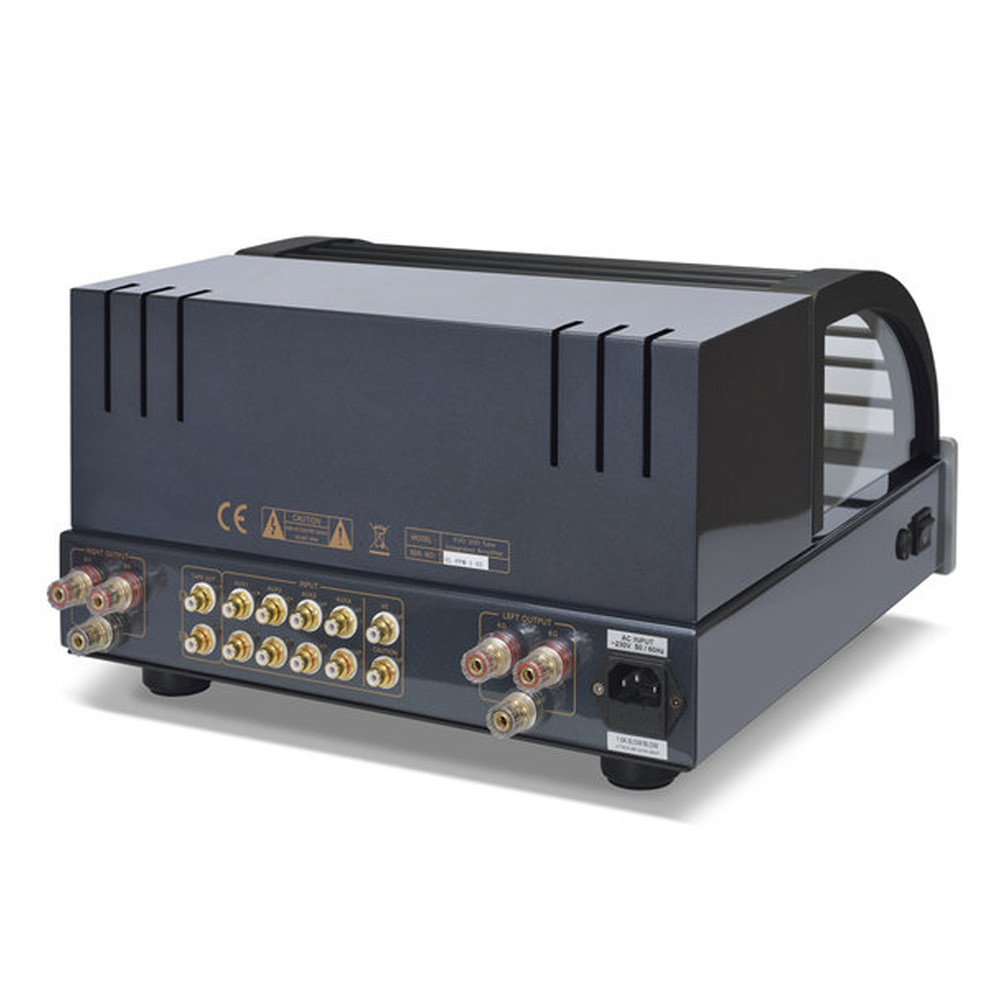

• Inputs
• 4x Stereo RCA
• Stereo RCA HT Bypass
• Outputs
• 4&8 ohms Speaker
• Stereo RCA Tape Out
• 1/4 ” Headphone
• Power
• 44 wpc
• General
• Slim Remote Control
• Adaptive AutoBias
• Point to Point Wiring
• Bad Tube Indicator
• ALPS Blue Velvet Potentiometer
• Wide-Bandwidth Output Transformers
• Potted Toroidal Power Transformer
• Home Theater Bypass
• Optional MM Phonostage
• Faceplate Options: Black or Silver

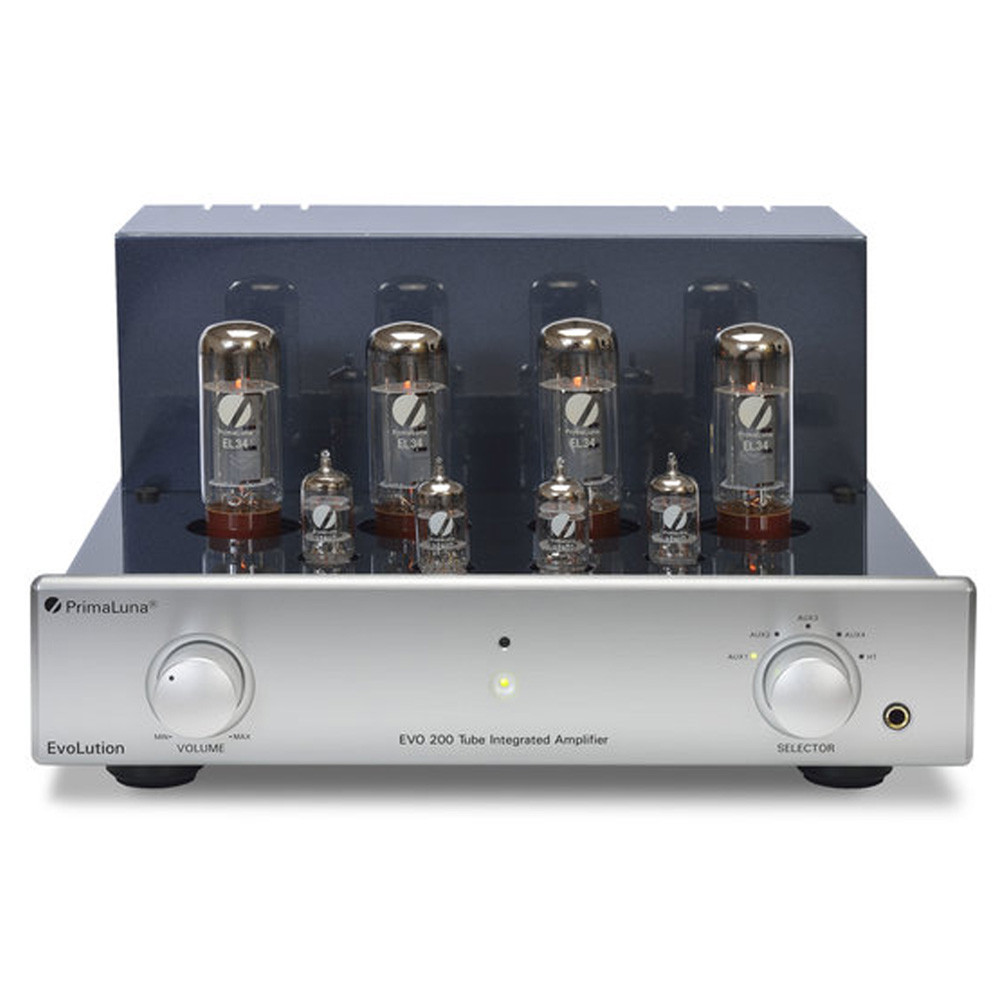

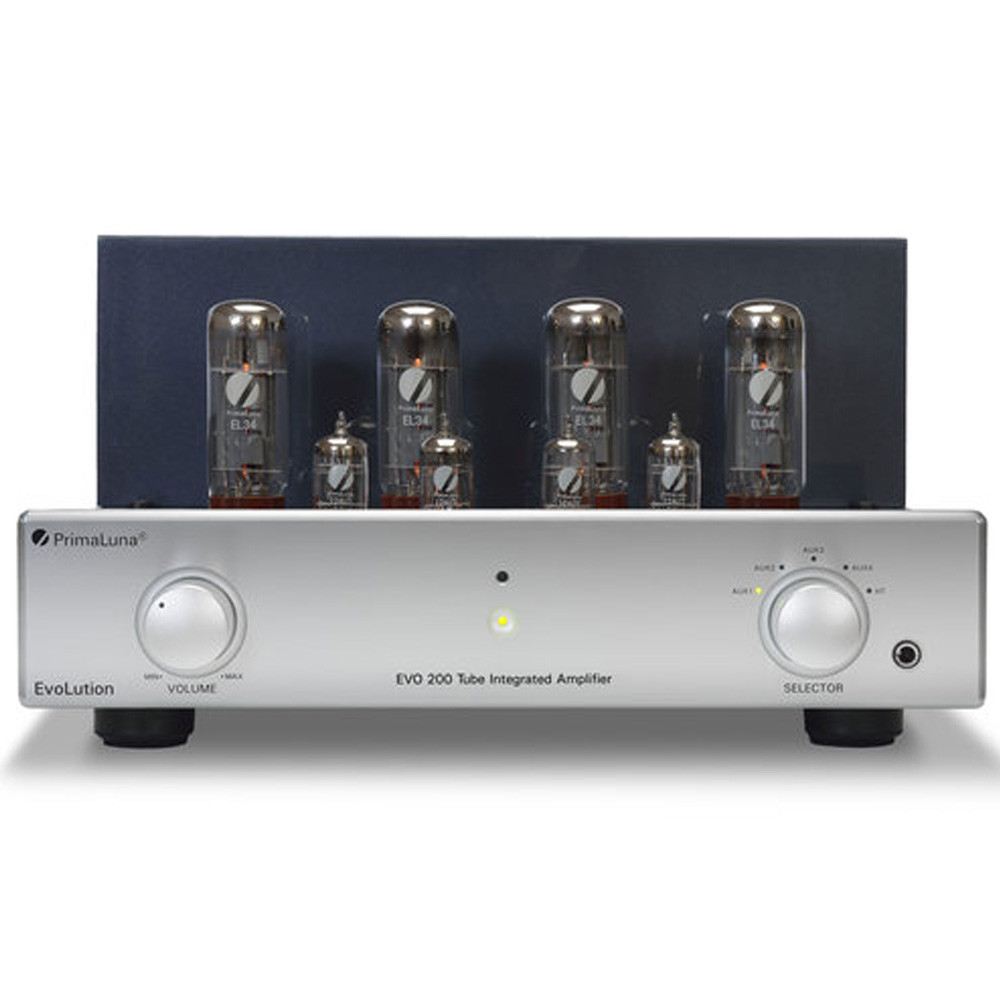

• Tubes: 4x 12AU7, 4x EL34
• Dimensions (W x H x D): 14.4 x 8.1 x 15.9 inches
• Weight: 39.6 lbs.
• Warranty: 3 Years w/ registration
