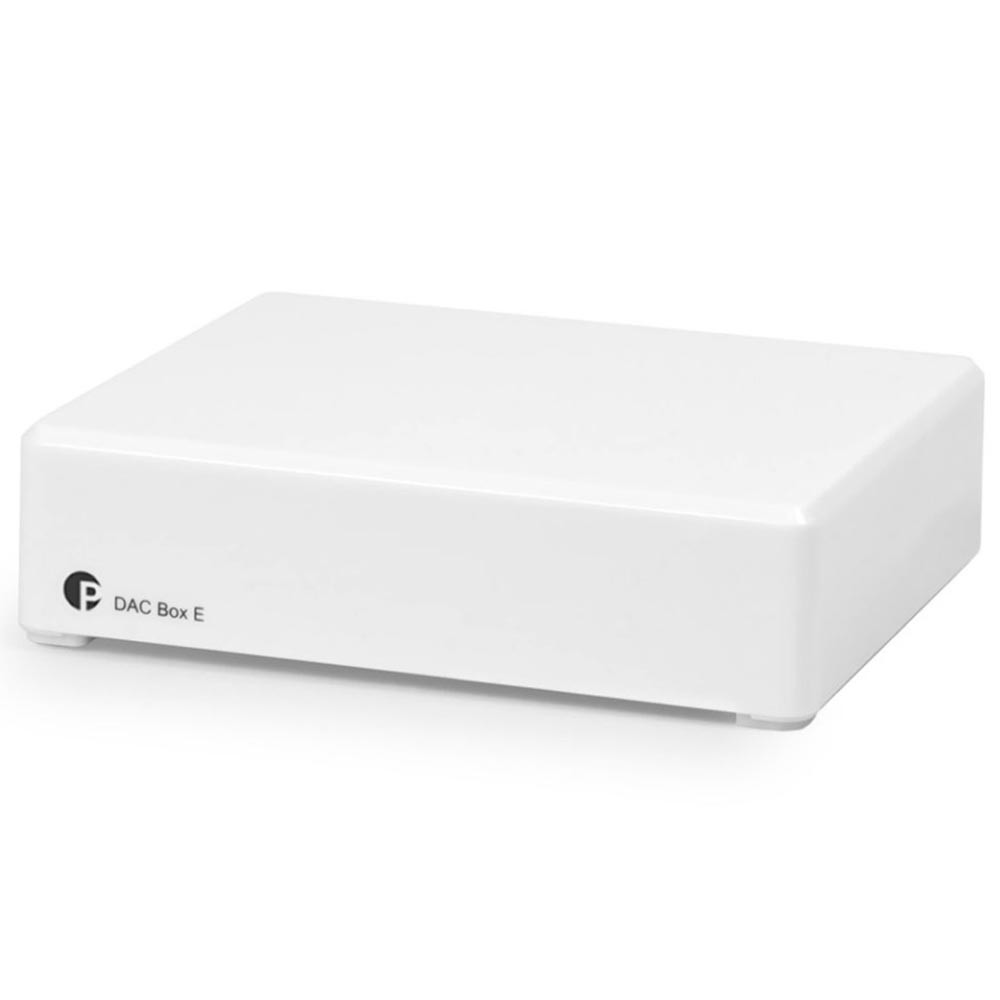

Pro-Ject DAC Box E Digital-To-Analogue Converter – Pro-Ject

Pure listening pleasure for digital sources at an absolute bargain price!

The entry level DAC Box E is an excellent D/A converter for digital sound sources using optical and coaxial connections. Despite the low price, it sounds outstanding and supports HD music data up to 24/192kHz. DAC Box E uses high quality components like precision D/A converter chips and a low noise output stage. It will act as a perfect upgrade for any digital stereo audio source, especially for best-buy CD-players, Blu-ray or DVD players with CD playback, set-top boxes etc!

The whole audio circuitry design is perfectly linear with low output impedance to avoid any negative interference with cables or pre-amps. Its class-leading audio performance makes DAC Box E an outstanding low-cost audio bargain!

Features:

• 24bit / 192kHz D/A conversion
• Co-axial (RCA) & optical (Toslink) S/PDIF input
• SMD circuitry
• Special low noise components
• Internal metal shielding
• Small size allows installation close to source
• Gold plated RCA connection sockets
• Outboard power supply included
• Black or White casing

Specs

• Line-level output: 1 pair RCA/phono sockets
• Output voltage: 0.7 Vrms
• Digital inputs: 1x coaxial (S/PDIF), 1x optical (TOSlink®)
• D/A converter: CS4344. 24Bit/192kHz
• Supported audio format: PCM (LPCM) (Stereo only, no support for multi-channel formats)
• Sampling rates Optical and coaxial input: 44.1 kHz, 48kHz, 96 kHz and 192 kHz (coaxial only)
• Outboard power supply: 18 V / 500 mA DC; 220 – 240V, 50Hz
• Power consumption: 200 mA DC, <1W in standby
• Dimensions W x H x D (D with sockets): 120 x 32 x 100 (106) mm
• Weight: 250 g without power supply
