Revel C540 4″ In-ceiling Speaker (each) – Revel

The Revel C540 is a space-saving in-ceiling speaker, supplied with round and square grills.
Want clear-sounding in-ceiling speakers, but working with limited space to install them? Then consider Revel’s C540 – a compact in-ceiling speaker that needs only 3-1/2″ of cutout diameter. Use it for background music as part of a low-profile custom-installed whole-house system, or as an overhead effects channel in a Revel home theater speaker system.

Top-down technology
The C540 benefits from the research and design work that went into Revel’s higher-end in-ceiling speakers. For instance, the speaker’s integrated tweeter waveguide helps provide great sound across a wide listening area. And its high-order crossover network allows the woofer and tweeter to blend together seamlessly.

Why Revel?
Revel is one of the high-performance audio companies of global electronics giant Harman International. Since 1996, Revel has used cutting-edge design tools and one-of-a-kind testing facilities to develop speakers that measure well and sound amazing. The intensive design work happens at Harman’s state-of-the-art speaker R & D facility in Northridge, California.

Product details:

• Ideal for an in-ceiling music system or overhead surround effects in a home theater system
• 4″ micro-ceramic composite (MCC) woofer with cast-aluminum framelong-throw woofer design with rubber surround for high output and low distortion
• 1″ aluminum dome tweeterintegrated waveguide provides excellent on- and off-axis performancetweeter is aimable to direct high-frequency details towards you

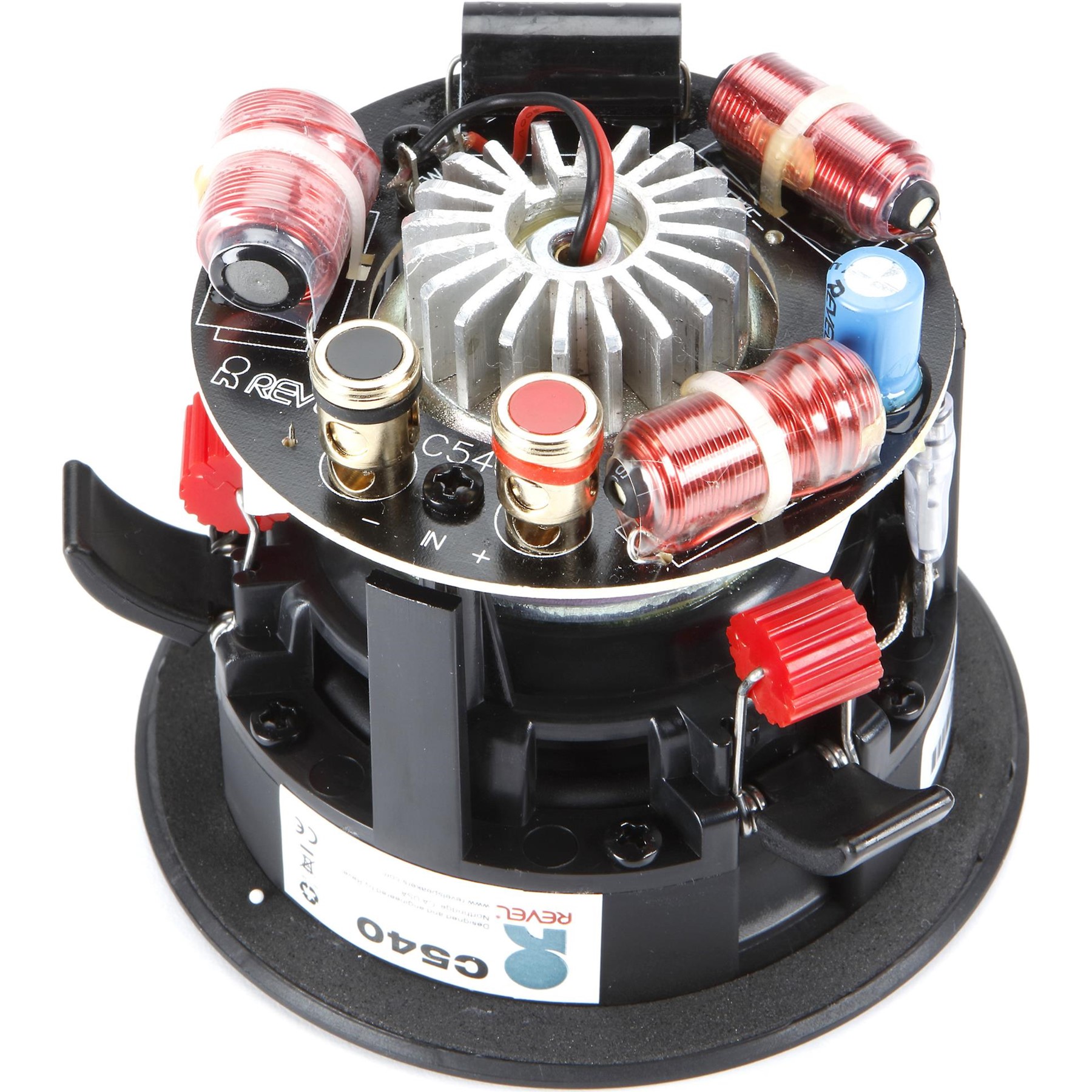

• high-order crossover network delivers accurate timbre reproduction
• recommended amplifier power: 10-80 watts

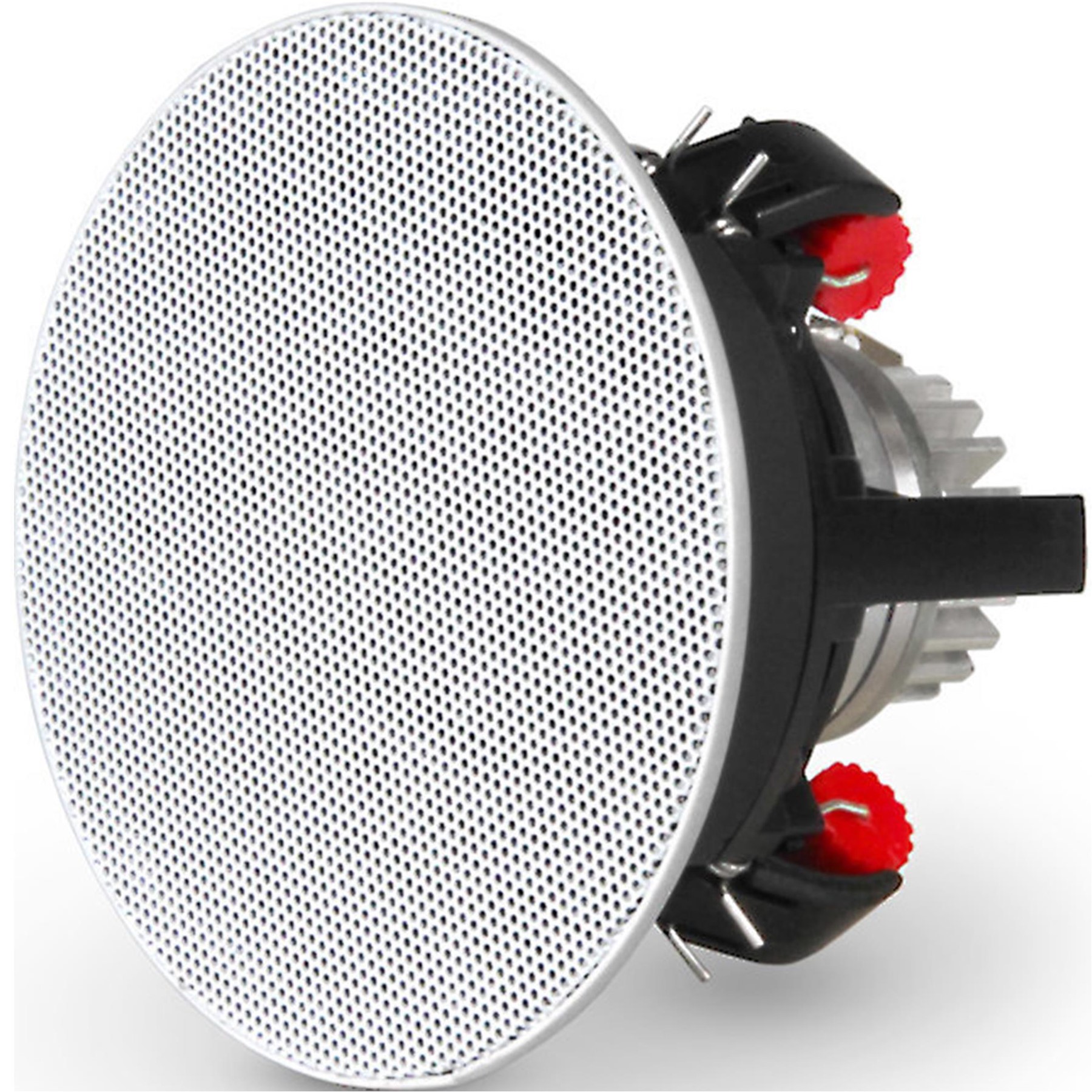

• includes both round and square zero-bezel magnetic grillesgrilles are paintable to match your décor
• sensitivity: 85 dB
• speaker cutout diameter: 3-1/2″
• overall diameter: 4-1/2″
• mounting depth: 3-3/8″

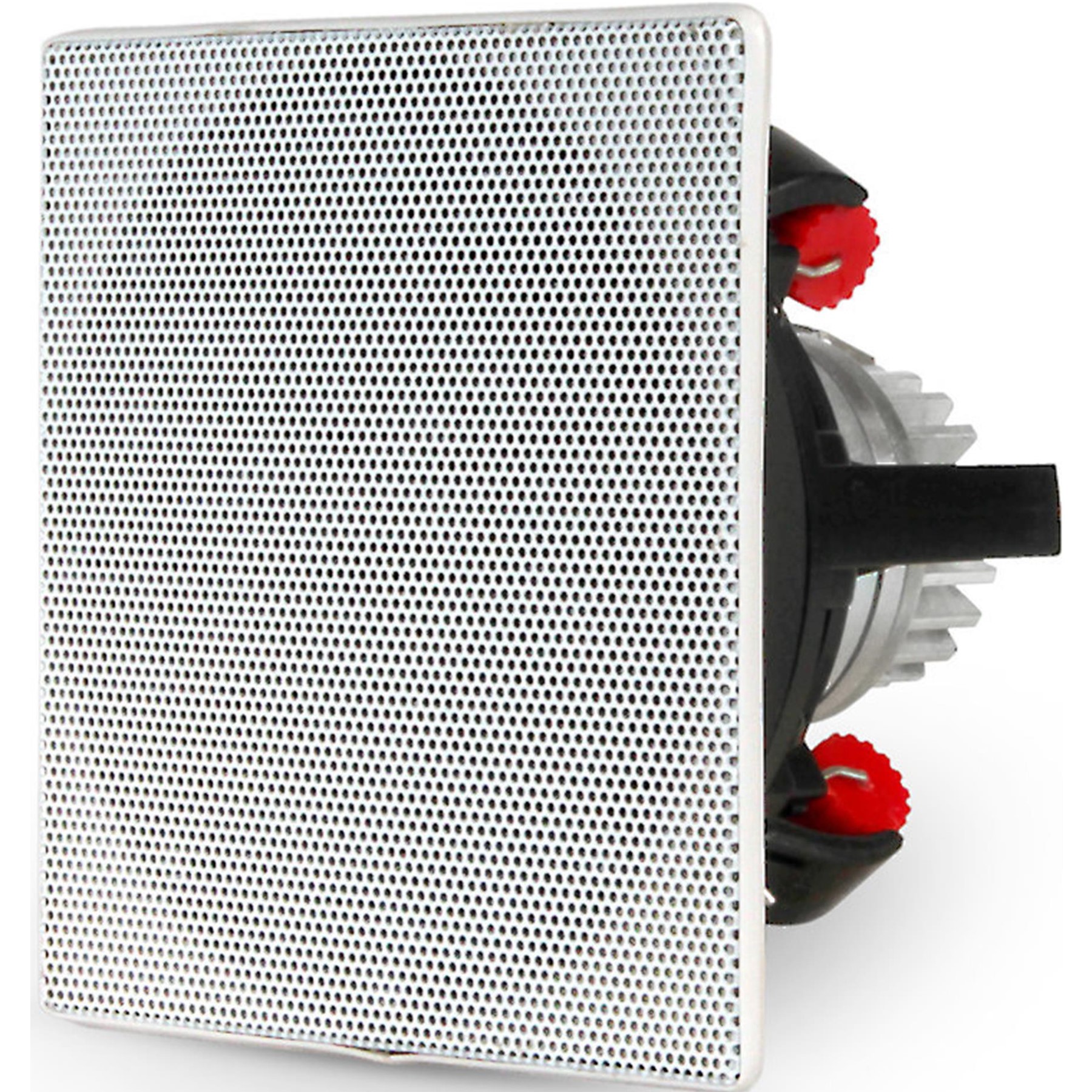

• square grille dimensions: 4-1/2″W x 4-1/2″H
• weight: 1.5 lbs.
• warranty: lifetime

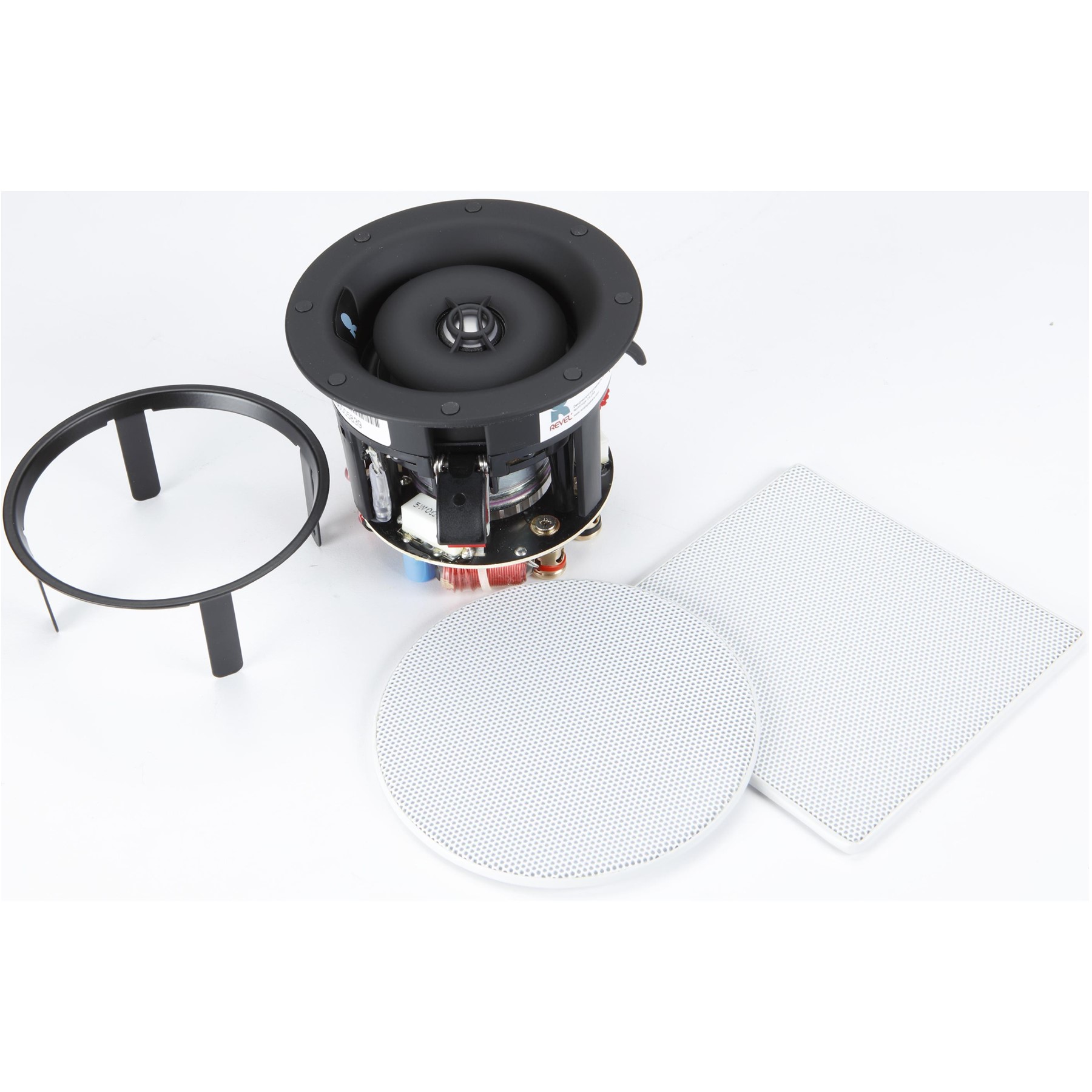

What to expect in the box:

• Revel C540 owner’s manual
• In-ceiling loudspeaker
• Round grille
• Square grille
• Round scrim cloth
• Square scrim cloth
• 4 Self-adhesive foam strips
• Cutout template
• Instruction Manual
