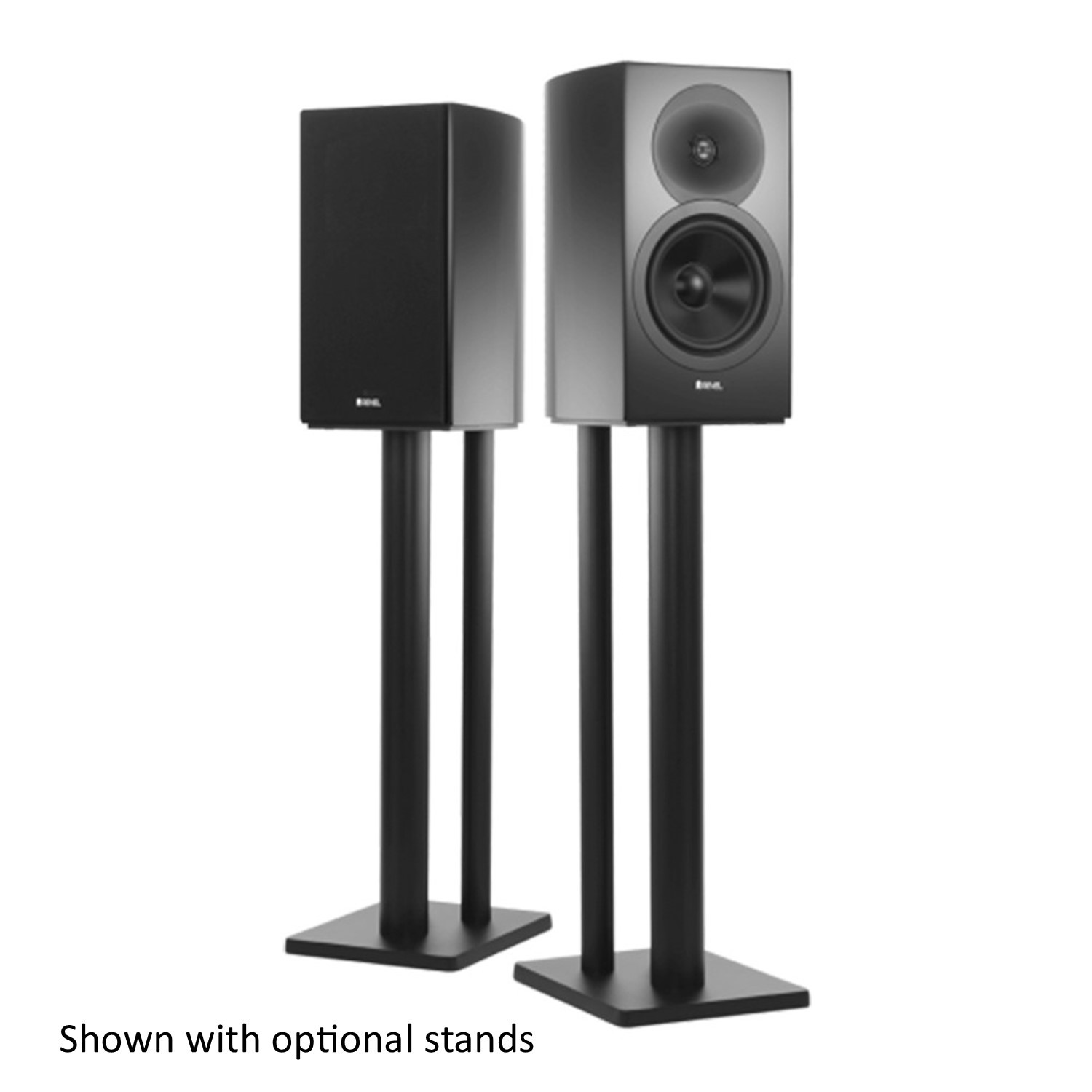

Revel Concerta2 M16 2-Way 6.5″ Bookshelf Loudspeaker (Each) – Revel

The Concerta2 M16 bookshelf loudspeaker was designed to deliver outstanding accuracy over a remarkably wide frequency range.

The 2-way 6.5” bookshelf has the ability to provide performance worthy of the most demanding entertainment systems.

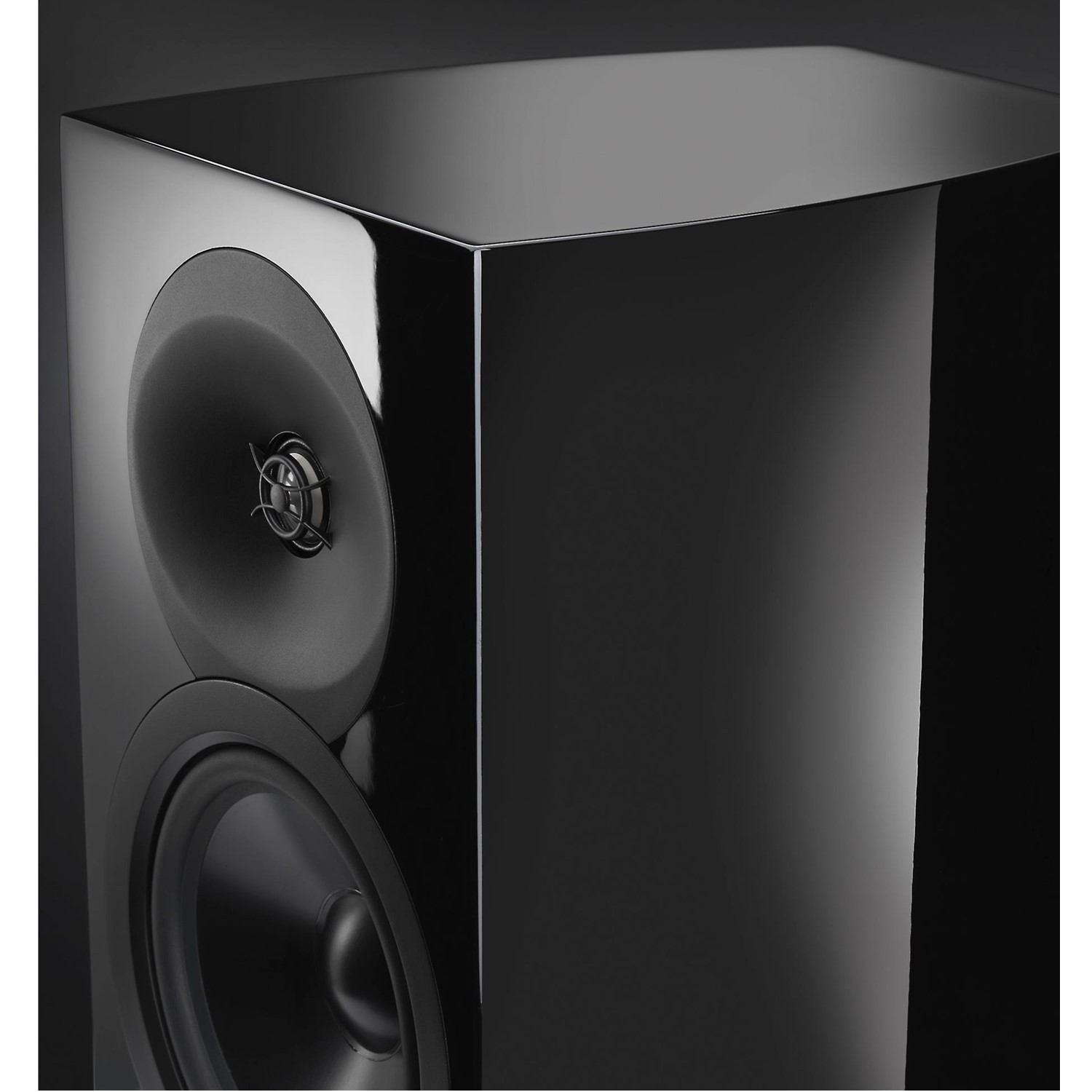

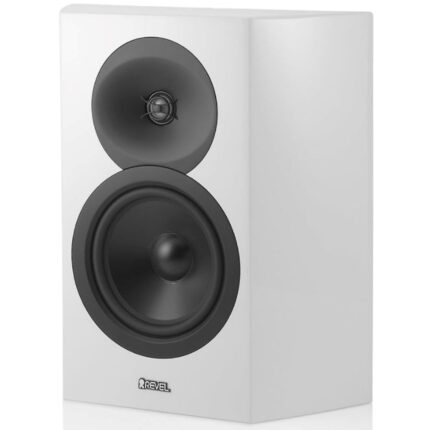

The M16 is a true full range 2-way 6.5” bookshelf that features a small footprint and elegant design. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.

Features

• Derived from Revel’s award-winning Performa3 Series Loudspeakers
• 6.5″deep anodized aluminum cone woofers

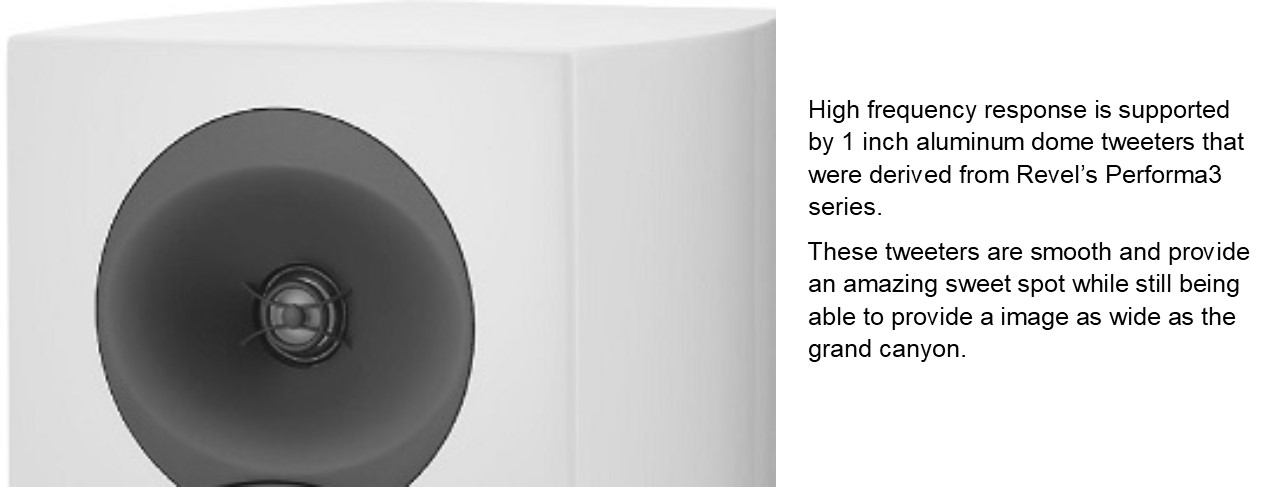

• 1″ Aluminum Tweeter

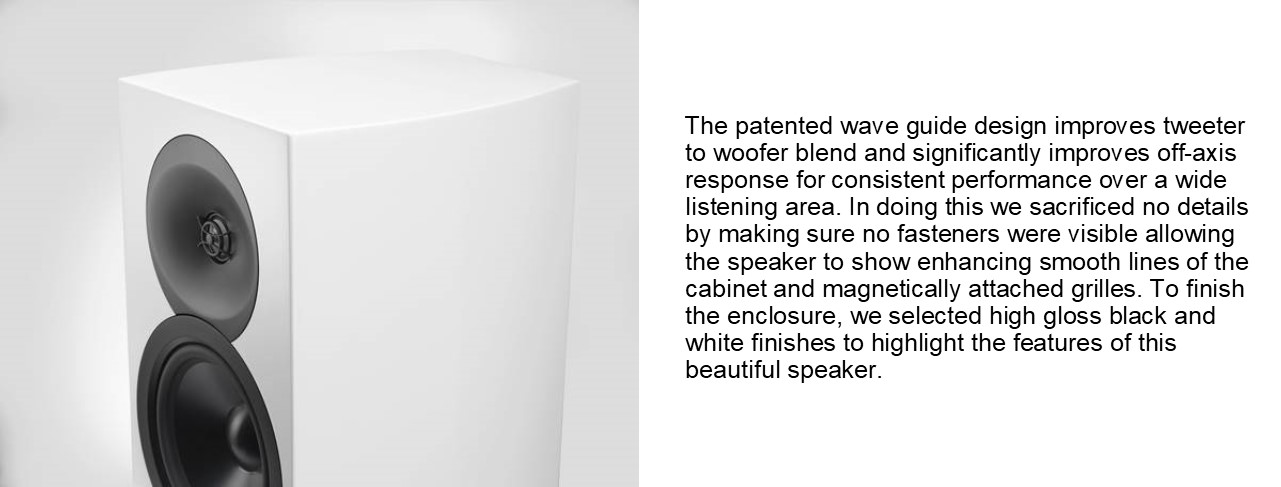

• Fourth generation Acoustic Lens waveguides
• Computer optimized driver positioning and network integration
• Constant Pressure Gradient Port Design

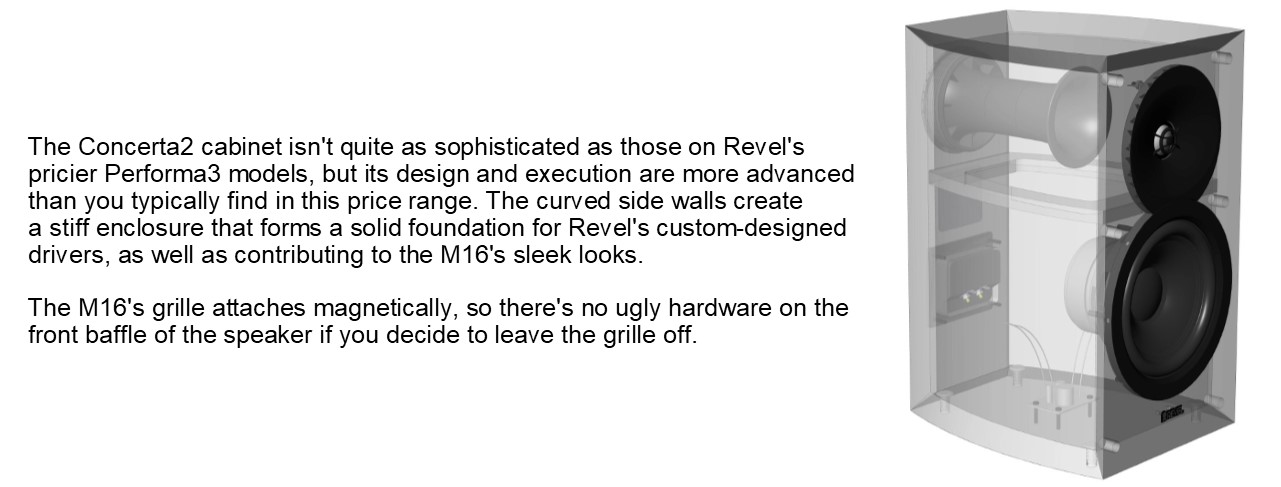

• No visible fasteners on the front, top or side panels

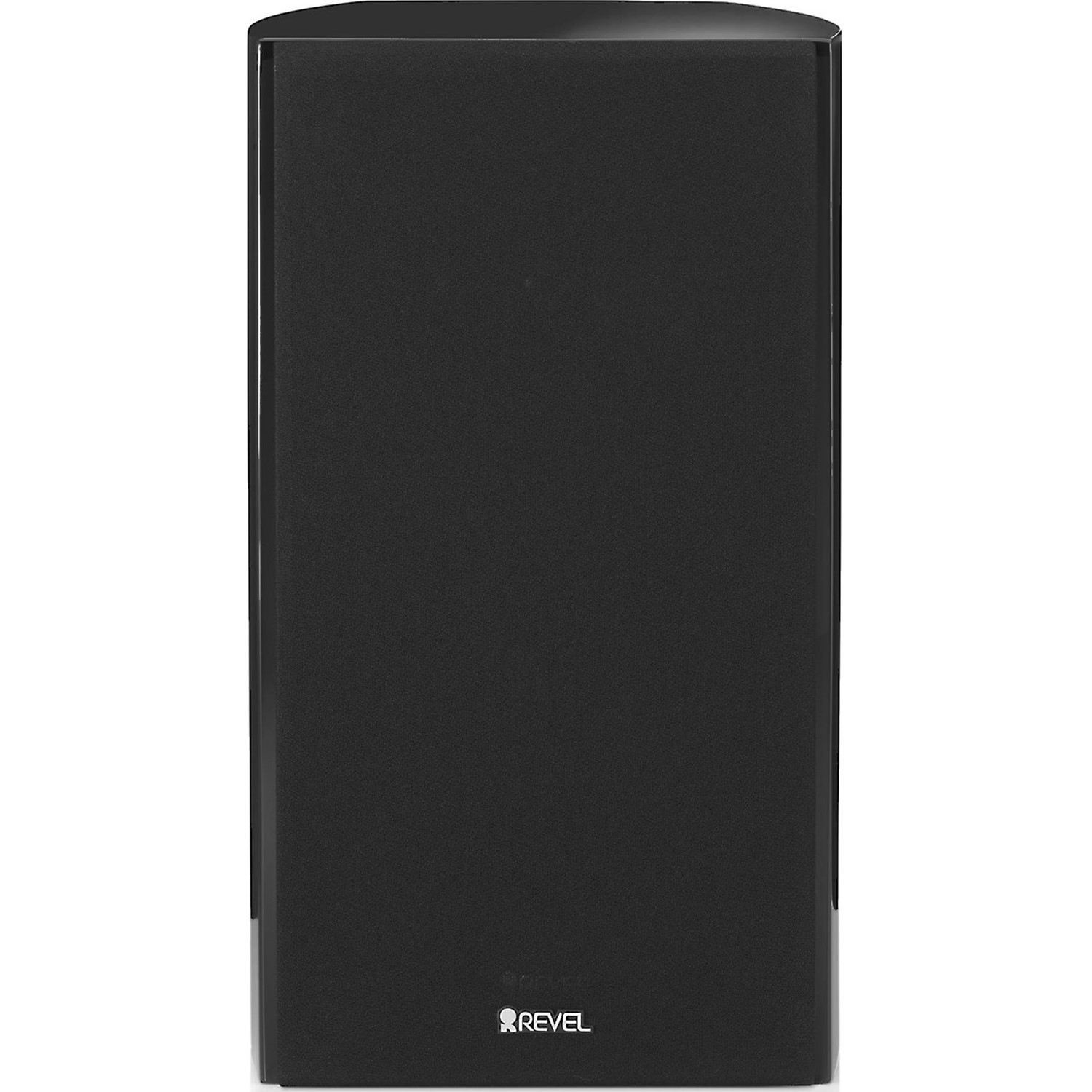

• Magnetic grilles with brushed metallic logos

General Specifications

• Crossover Frequencies 2.1kHz

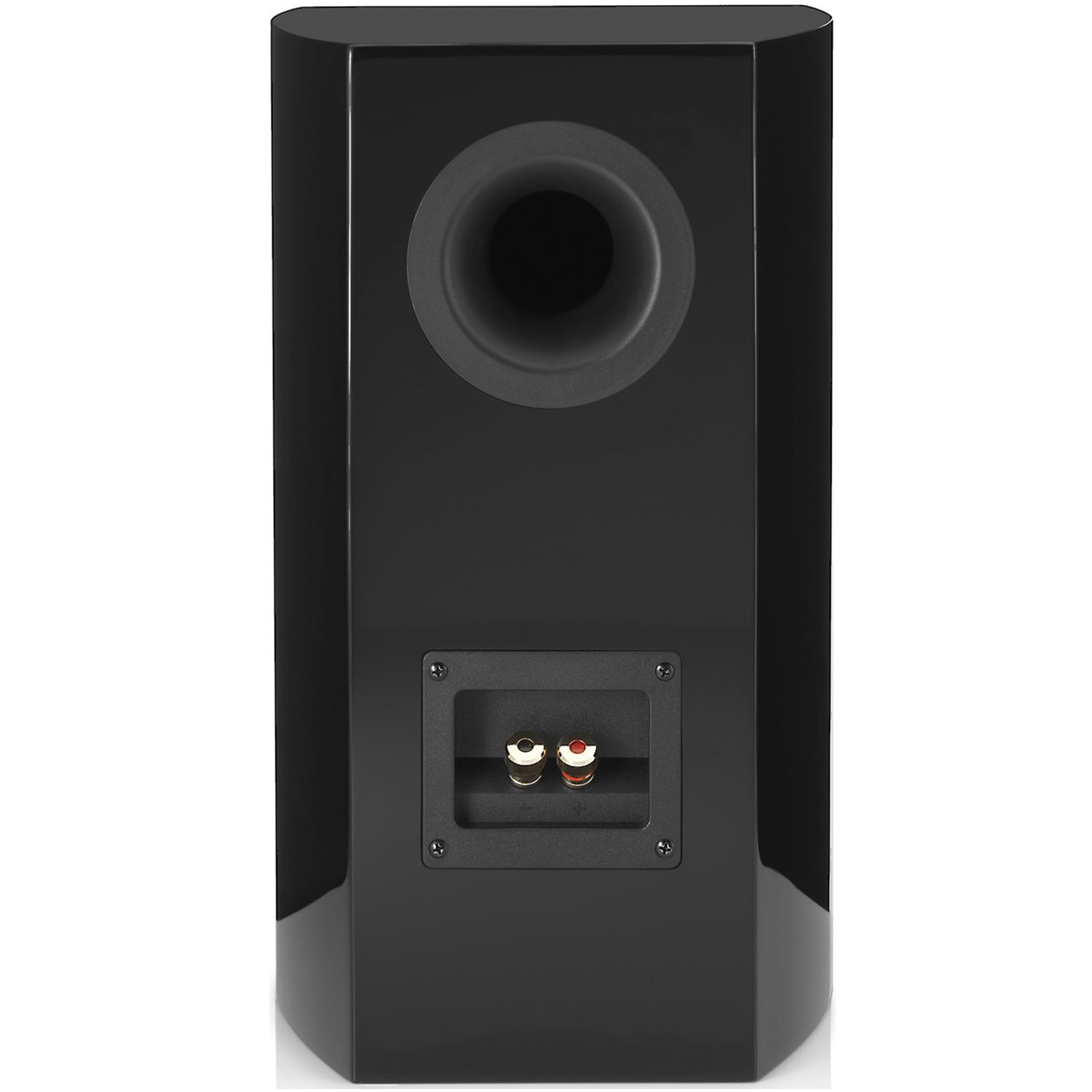

• Enclosure Type Bass-Reflex via Rear-Firing Port
• High-frequency Driver Components 1″ Aluminum Tweeter with Acoustic Lens Waveguide
• Nominal Impedance 6 Ohms
• Input Connections Five-way binding posts
• Low Frequency Extension 55Hz, 50Hz, 45Hz (-3 dB, -6 dB, -10 dB)
• Low-frequency Driver Components 6.5″ Aluminum Cone Woofer
• Recommended Amplifier Power 50-120W
• Sensitivity 86dB (2.83V @ 1M)
• Dimensions 14.75″ H x 8.6″W x 10.76″ D – Including Feet
• Weight 16 lbs each
